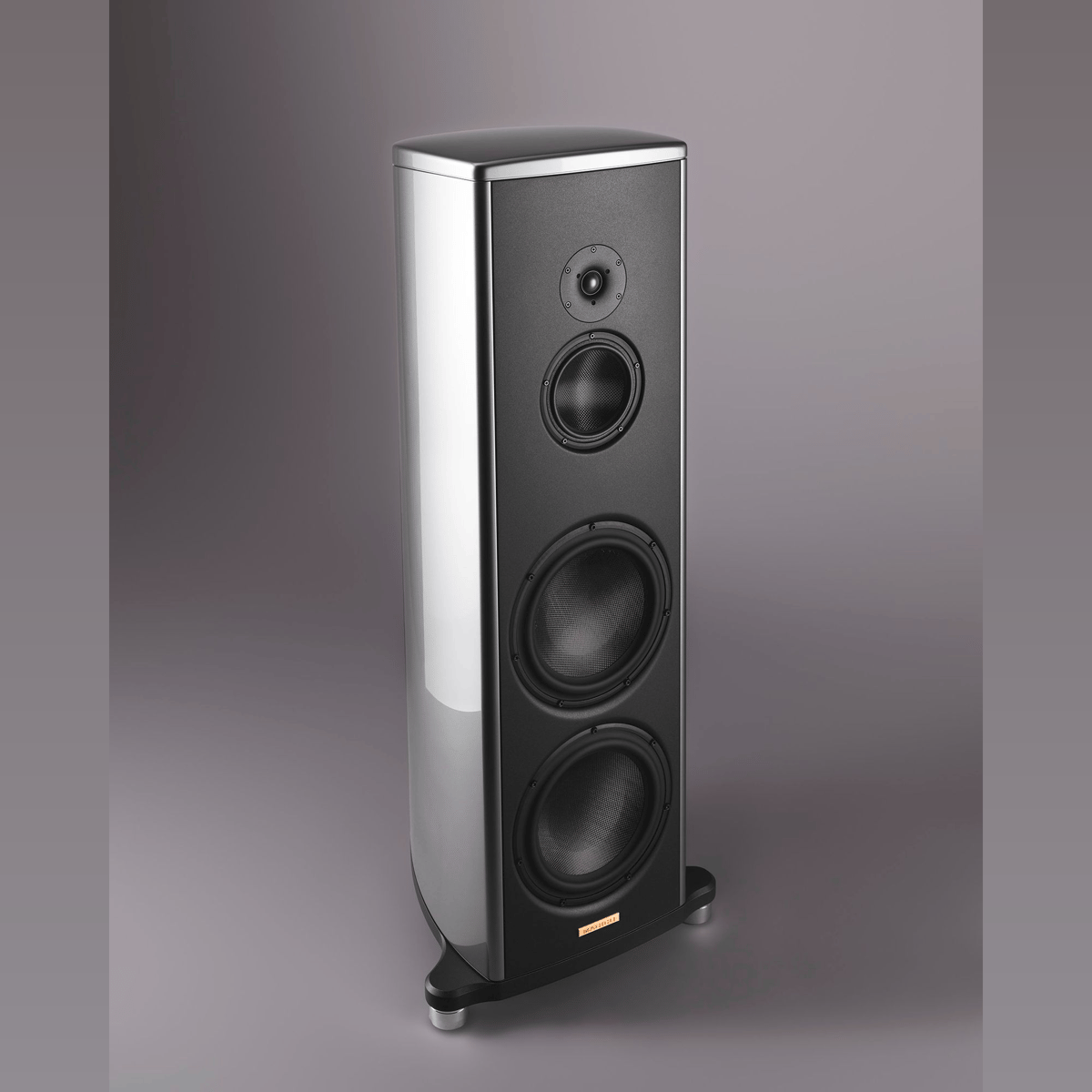

Magico S5 2024

The year 2023 saw the launch of the new-generation S Series. The first-of-its-kind S3 has since been heralded worldwide as a groundbreaking design. Magico’s 20th anniversary is being celebrated in 2024, and with it, the new S5 loudspeaker continues what began with the S3. Offering an even wider performance envelope, the S5 features numerous cutting-edge advancements in a substantially larger package, while maintaining the elegance the S Series is renowned for.

Design Process

A Polytec Laser Vibrometer was leveraged to precisely measure the most minute vibration of the cabinet panels and calculate the sound-pressure levels they generate. This enabled Magico to address them early in the design process, resulting in the desired target: the S5’s cabinet adds no coloration to the sound. The Klippel Near-Field Scanner robot enabled multiple acoustic measurements of the 3D sphere around the S5, which gave a complete view of the on- and off-axis response of the speaker. This data enabled Magico the ability to push ever closer to the theoretical ideal acoustic response of a multi-way loudspeaker.

Tweeter and Midrange

Tweeter Highlights: The S5’s tweeter is based on the model used in the M Series. The S5’s 28mm tweeter uses a diamond-coated beryllium diaphragm. A neodymium-based motor system yields the lowest distortion possible today along with even greater power handling than previous S Series speakers. The S5’s high frequencies are chock-full of textural detail and the sonic subtleties Magico is renowned for.

Midrange Highlights: The S5’s midrange is 6” in diameter with a 3” voice coil. A key change from previous Magico S Series speakers is the Nano-Tec Gen 8 cone structure: an aluminum-honeycomb core sandwiched by graphene-reinforced carbon-fiber skins, terminating in  an innovative, long-life foam surround. The cone’s revolutionary core structure allows lower thickness, lighter weight, and more effective damping. This driver features two extra-large neodymium magnets, a full copper cap, and a pure titanium voice coil. The S5’s midrange sets a new benchmark for measured performance in both the frequency and time domains. The result is midrange clarity that will leave you speechless.

Woofer Highlights: Bass in the S5 is provided by a pair of 10” woofers. Each driver sports a 5” titanium voice coil and a Nano-Tec Gen 8 cone built into a third-generation chassis. This woofer has a huge copper cap and is capable of one half inch of linear movement with the lowest distortion available in a driver of its size. This enables the S5 to provide accurate, undistorted low frequencies while producing high maximum sound-pressure levels. The S5 produces low frequencies with awe-inspiring power and depth, while maintaining fidelity to the source not heard outside of a Magico loudspeaker.

Sculpted Enclosure

The newly designed curved-and-shaped aluminum cabinet—optimized using simulated 3D modeling to minimize internal resonances—maximizes stiffness while enabling optimal damping strategies. The front baffle is curved for minimal diffraction effects. A Polytec Laser Vibrometer was leveraged to precisely measure the most minute vibration of the cabinet panels and calculate the sound-pressure levels they generate. This enabled Magico to address them early in the design process, resulting in the desired target: the S5’s cabinet adds no coloration to the sound. Notably, the S5’s internal volume was increased by 31% versus the previous version. The larger bass cabinet enables the S5’s low-frequency response to plumb 5Hz lower—to 20Hz—while keeping the same sensitivity (88dB).

The S5 is available in a generous selection of premium finishes: six Softec choices that are rich in color depth, smooth to the touch, and very durable; and six High Gloss finishes that are expertly polished to a lustrous shine with a clear top coat. The three-footer support system uses constrained-layer damping and premium materials for greatly enhanced sonic performance.

SPECIFICATIONS

Driver Complement:
1 x 1.1" (28mm) Diamond Coated Beryllium Dome Tweeter
1 x 6" (15.24cm) Graphene Nano-Tec Gen 8 Cone Midrange
2 x 10" (25.4cm) Graphene Nano-Tec Gen 8 Cone

Sensitivity: 88dB
Impedance: 4 ohms
Frequency response: 20Hz-50kHz (in-room)
Recommended Power: 50 watts - 1000 Watts
Dimensions: 48"H x 19.3"D x 19"W (122cm x 49cm x 48.5cm)
Weight: 262 lbs. (118 kg)
