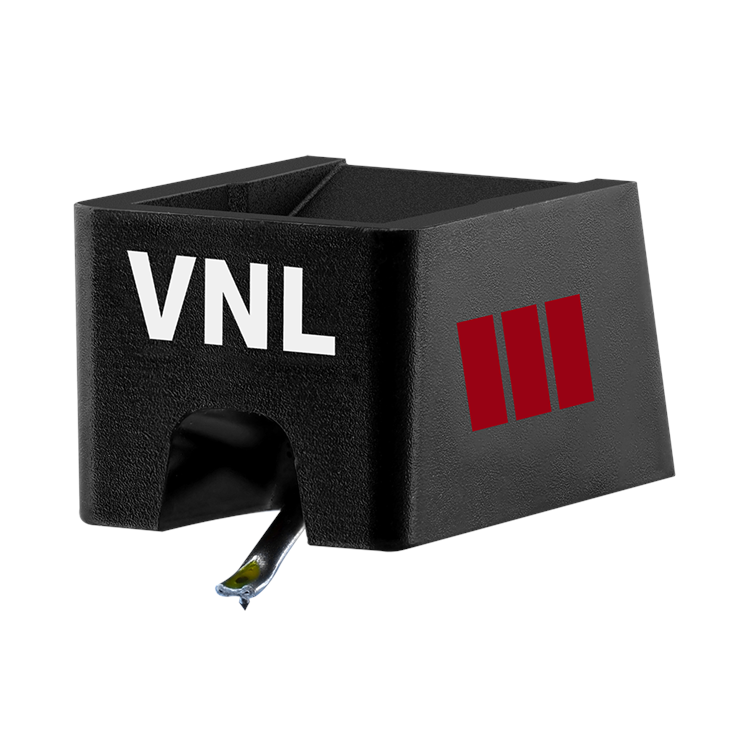

Stylus VNL \\\

Name: Ortofon Stylus VNL \\\
Brand: Ortofon
SKU: stylusvnl3
Price: 44.99 USD
Availability: InStock

$Ortofon Stylus VNL \\\ #1$

$Ortofon Stylus VNL \\\ variant 1$

$Ortofon Stylus VNL \\\ variant 2$

$Ortofon Stylus VNL \\\ variant 3$

$Ortofon Stylus VNL \\\ variant 4$

Ortofon Stylus VNL \\\

View at Ortofon

Output voltage at 1000Hz, 5cm/sec. - 6 mV.
Channel separation at 1kHz - 20 dB.
Frequency response 20 Hz - 20 kHz -2/+4 dB.
Tracking ability at 315 Hz at recommended tracking force - 90 μm
Compliance, dynamic lateral - 14. μm/mNTracking force range - 3 - 5 g. Tracking force recommended - 4 g.

Stylus VNL III

Output voltage at 1000 Hz, 5 cm/sec. - 6 mV. Channel separation at 1 kHz - 20 dB. Frequency response 20 Hz - 20 kHz -2/+4 dB. Tracking ability at 315 Hz at recommended tracking force - 90 μm. Compliance, dynamic lateral - 14 μm/mN. Tracking force range - 3 - 5 g. Tracking force recommended - 4 g.

For information about set-up and alignment, stylus care and lifetime, break-in time, and troubleshooting, check out our DJ FAQ.

Download the VNL userguide

Download Concorde MkII Universal & VNL styli datasheet
