Output voltage at 1000Hz, 5cm/sec. - 6 mV.

Channel separation at 1kHz - 20 dB.

Frequency response 20 Hz - 20 kHz -2/+4 dB.

Tracking ability at 315 Hz at recommended tracking force -

100 μm.

Compliance, dynamic lateral - 16

μm/mN.

Tracking force range - 3 - 5 g.
Tracking force recommended - 4 g.

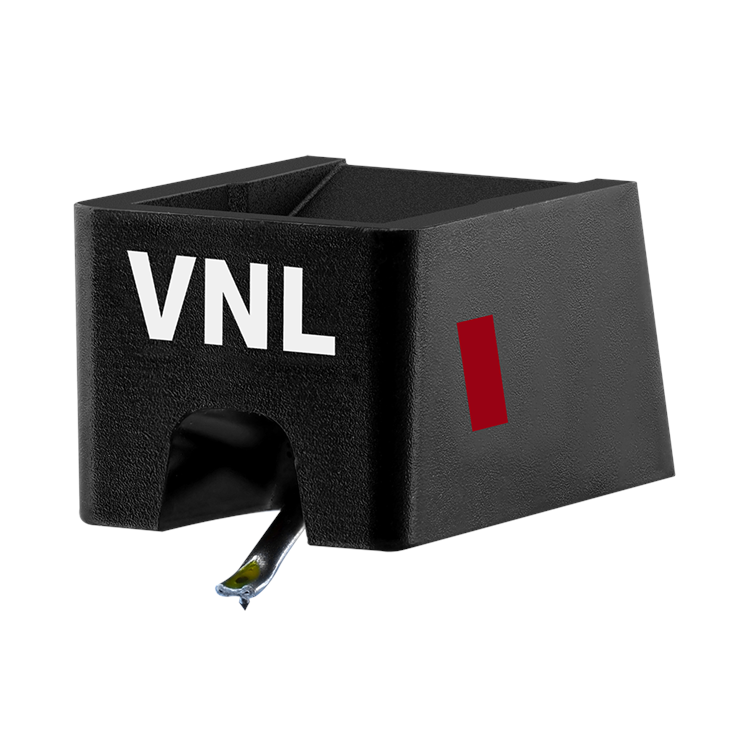

Stylus VNL I

Output voltage at 1000 Hz, 5cm/sec. - 6 mV. Channel separation at 1 kHz - 20 dB. Frequency response 20 Hz - 20 kHz  -2/+4 dB. Tracking ability at 315 Hz at recommended tracking force - 100 μm. Compliance, dynamic lateral - 16 μm/mN. Tracking force range - 3 - 5 g. Tracking force recommended - 4 g.

For information about set-up and alignment, stylus care and lifetime, break-in time, and troubleshooting, check out our DJ FAQ.

Download the VNL userguide

Download Concorde MkII Universal & VNL styli datasheet
