Acoustic Energy AE520
The AE520 is a powerful, slim-line, floor-standing loudspeaker which builds on the AE500 and AE509 models to firmly establish itself as the brand’s new flagship, featuring multi-driver design, imposing size and performance.
The AE520 features two dedicated 125mm mid-range drivers, three low frequency drivers and a 25mm tweeter – all fashioned from carbon fibre to provide perfect tonal matching across the frequency range.
The two dedicated 125mm carbon fibre mid-drivers include new oversized 35mm voice coils for low thermal compression and optimum motor force factor. Both are mounted within their own dedicated sealed enclosure whilst the three dedicated low frequency drivers are reflex loaded by a large rear facing rectangular port. Designed to match the pistonic power and accuracy of our legendary ceramic aluminium drivers, these new units offer much improved self-damping for a smoother, more transparent sound.
Vertical directivity has been optimised to provide excellent vertical coverage whilst reducing the energy otherwise wasted on ceiling and floor reflections when compared to traditional designs.

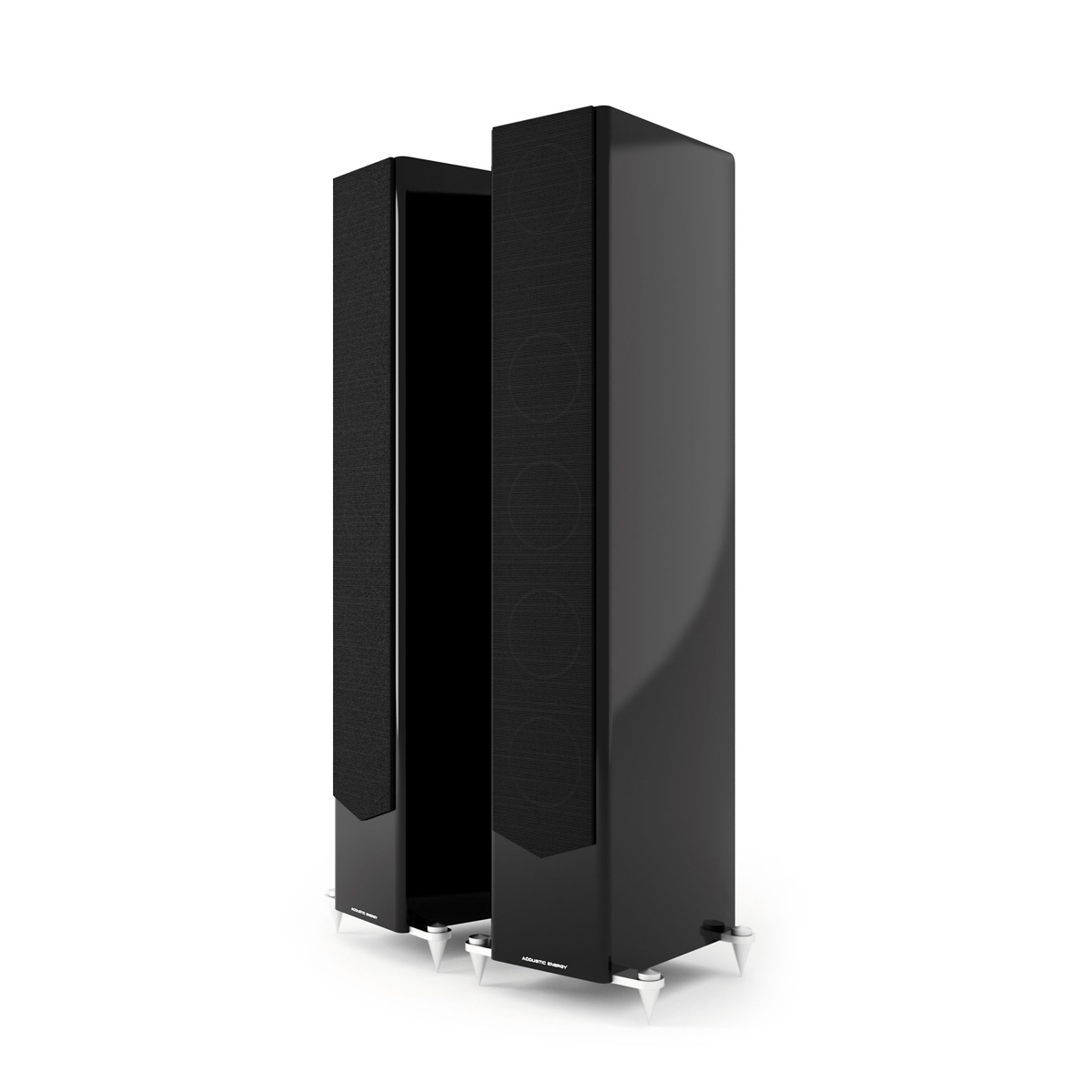

The slim-line cabinets are finished in Piano Gloss Black, Piano Gloss White or American Walnut wood veneer finishes. Solid Aluminium bars are supplied to ensure rigid floor-coupling and maximum stability, whilst the stiffness of the metal structure reduces the room to speaker interaction.
Dealers selling Acoustic Energy near you
Packed with carbon-fibre drivers, the AE520 delivers deep bass, airy non‑shouty treble and midband clarity, creating a large, well‑proportioned spacious sound with quick transients, impressive scale and composure at high levels. Reviewers at HiFi Choice and David Price praise its refined, flagship-class performance that rewards serious electronics and roomy listening spaces.
Pros
- Deep, weighty and unconstrained low end driven by three 125mm carbon-fibre woofers and a large rear slot port.
- Refined midband clarity and improved resolution that reveals backing elements and natural vocal presence.
- Large, well-proportioned soundstage with strong scale and imaging, creating an immersive, spacious presentation.
- Quick transients and good composure at high SPLs thanks to lightweight carbon drivers and robust cabinet engineering.
&
Cons
- Benefits from a powerful, solid-state amplifier with strong bass grip to fully realise its dynamics and low-end authority.
- Large cabinet and high output can overpower small rooms; requires generous placement (distance from rear wall recommended).
Sound Quality
93/100
Bass
95/100
Triple 125mm carbon-fibre woofers with large rear slot port deliver deep, weighty and unconstrained low end. Reviewers repeatedly note 'lots of bottom-end weight', 'vast tracts of low frequencies' and 'no sense of compression', though placement/room boundary caution (50cm from rear wall) is mentioned.
Mid
93/100
Twin dedicated 125mm mid drivers with sealed sub-enclosures give refined, detailed midband performance. Reviews cite improved midband clarity over smaller models, natural vocal projection and the ability to resolve backing elements in mixes.
Treble
91/100
25mm carbon-fibre dome with cast aluminium WDT waveguide yields extended, smooth treble — crisp and percussive without being shouty. Reviewers describe a non-colouration, airy top end and controlled hi-hat/ cymbal presentation.
Soundstage Imaging
93/100
Speakers produce a large, well-proportioned soundstage with notable breadth and depth; reviewers call it immersive, spacious and precisely focused with strong centre vocal projection.
Dynamics
92/100
Lightweight carbon-fibre drivers and substantial cabinet mass deliver quick transients, strong micro/macro dynamics and composure at high volumes; reviewers note agile, propulsive performance and good headroom.
Show Less
Build Quality
90/100
30kg cabinet using Resonance Suppression Composite, internal sub-enclosures and robust driver construction create an inert, well-engineered box. Reviewers call the build very decent for the price, though not as lavish as some more expensive rivals.
Features Connectivity
80/100
Passive tower baseline applied. Compact triple-woofer 3-way with a 14-element crossover (air-core inductors, polypropylene caps) and oxygen-free wiring noted, but no bi-wire switches or DSP.
Value for Money
92/100
At the reviewer-stated ~£3,499 price point the AE520 is repeatedly described as excellent value — a flagship-level, bridge-to-exotica performer with few downsides provided you have the space.
Reviews
Online Reviews & Mentions

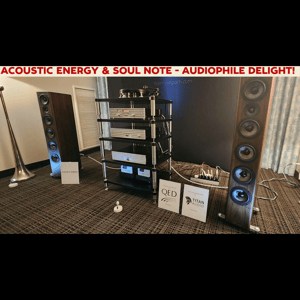

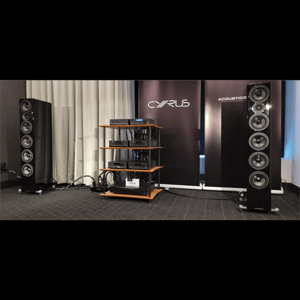

YouTube Reviews
