• Full-range surface-mount loudspeaker for indoor and outdoor installation applications




• 60 Watts continuous, 240 Watts peak power




• 5" next generation Dual Concentric driver featuring Omnimagnet technology




• Torus Ogive waveguide for improved high-frequency response and directivity




• Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input




• Low insertion loss 30 W line transformer with easily accessible tapping switch




• Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 AMS series loudspeakers per channel




• All components weather-resistant to IP65 for outdoor use




• High-temperature resistant ABS enclosure rated at 120°C




• Semi-matte white paint finish fits unobtrusively in any environment




• Yoke bracket included for ease of installation




• Optional VARIBALL multi-angle bracket with secure clamp mechanism for accurate audience coverage




• Weatherproof cable gland cover to protect Phoenix connectors and tap selector switch

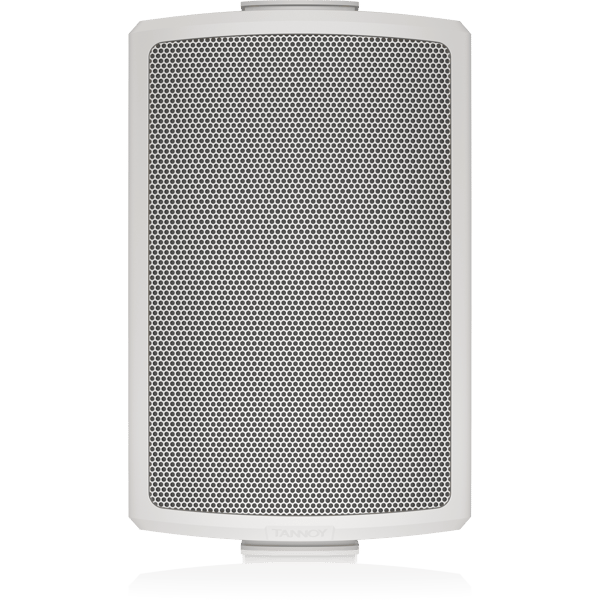

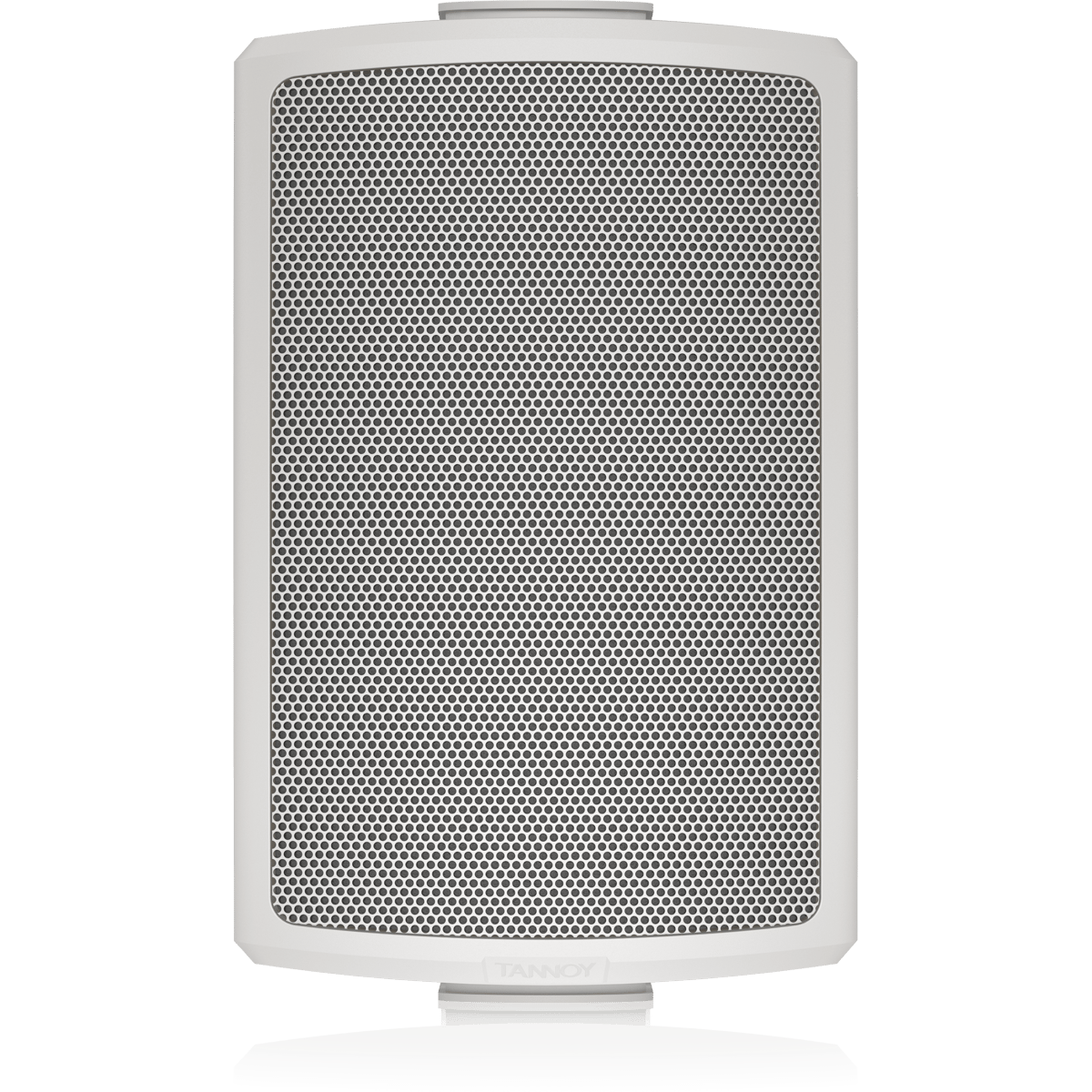

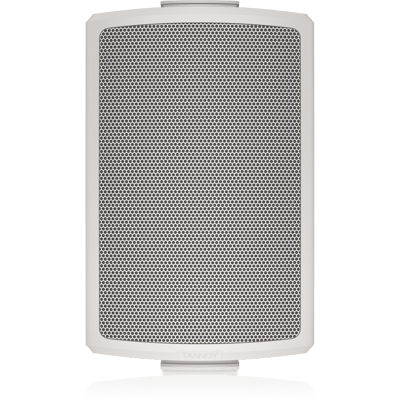

AMS 5DC-WH

The AMS 5DC-WH is a full bandwidth 240-Watt high sensitivity loudspeaker that utilises our all-new proprietary 5" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide to deliver wide and consistent broadband directivity with enhanced intelligibility – plus the linear response of our legendary studio monitors. The AMS 5DC-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. AMS 5DC-WH loudspeakers provide a seamless sound signature within a multi-zoned environment that benefi ts from both ceiling and wall mounted TANNOY loudspeakers.

Weather-Resistant Enclosure

The elegantly styled semi matt white moulded enclosure blends beautifully into any décor. Additionally the AMS 5DC-WH’s design and performance has achieving an IP65 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, health suites, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install

The highly durable and heat resistant ABS enclosure features a white painted finish and comes with an aesthetically pleasing grille. Installation is quick and easy thanks to the included colour-matched yoke mounting bracket – and an optional VARIBALL multi-angle bracket is available separately. An included weatherproof cable gland protects the Phoenix input and link output connectors, as well as the integral low-insertion loss 30 W transformer with convenient tap switching.

LAB GRUPPEN Ready

The AMS 5DC-WH is optimised for use with LAB GRUPPEN LUCIA amplifi ers, which accommodate up to 8 AMS Series loudspeakers per channel.
