Tannoy AMS 5DC

5" Dual Concentric Surface-Mount Loudspeaker for Installation Applications

Full-range surface-mount loudspeaker for indoor and outdoor installation applications
60 Watts continuous, 240 Watts peak power
5" next generation Dual Concentric driver featuring Omnimagnet technology
Torus Ogive waveguide for improved high-frequency response and directivity
Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
Low insertion loss 30 W line transformer with easily accessible tapping switch
Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 AMS series loudspeakers per channel
All components weather-resistant to IP65 for outdoor use
High temperature resistant ABS enclosure rated at 120°C
Semi-matte black paint finish fits unobtrusively in any environment
Yoke bracket included for ease of installation
Optional VARIBALL multiangle bracket with secure clamp mechanism for accurate audience coverage
Weatherproof cable gland cover to protect Phoenix connectors and tap selector switch

Full-range surface-mount loudspeaker for indoor and outdoor installation applications
60 Watts continuous, 240 Watts peak power
5" next generation Dual Concentric driver featuring Omnimagnet technology
Torus Ogive waveguide for improved high-frequency response and directivity
Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
Low insertion loss 30 W line transformer with easily accessible tapping switch
Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 AMS series loudspeakers per channel
All components weather-resistant to IP65 for outdoor use
High temperature resistant ABS enclosure rated at 120°C
Semi-matte black paint finish fits unobtrusively in any environment
Yoke bracket included for ease of installation
Optional VARIBALL multiangle bracket with secure clamp mechanism for accurate audience coverage
Weatherproof cable gland cover to protect Phoenix connectors and tap selector switch

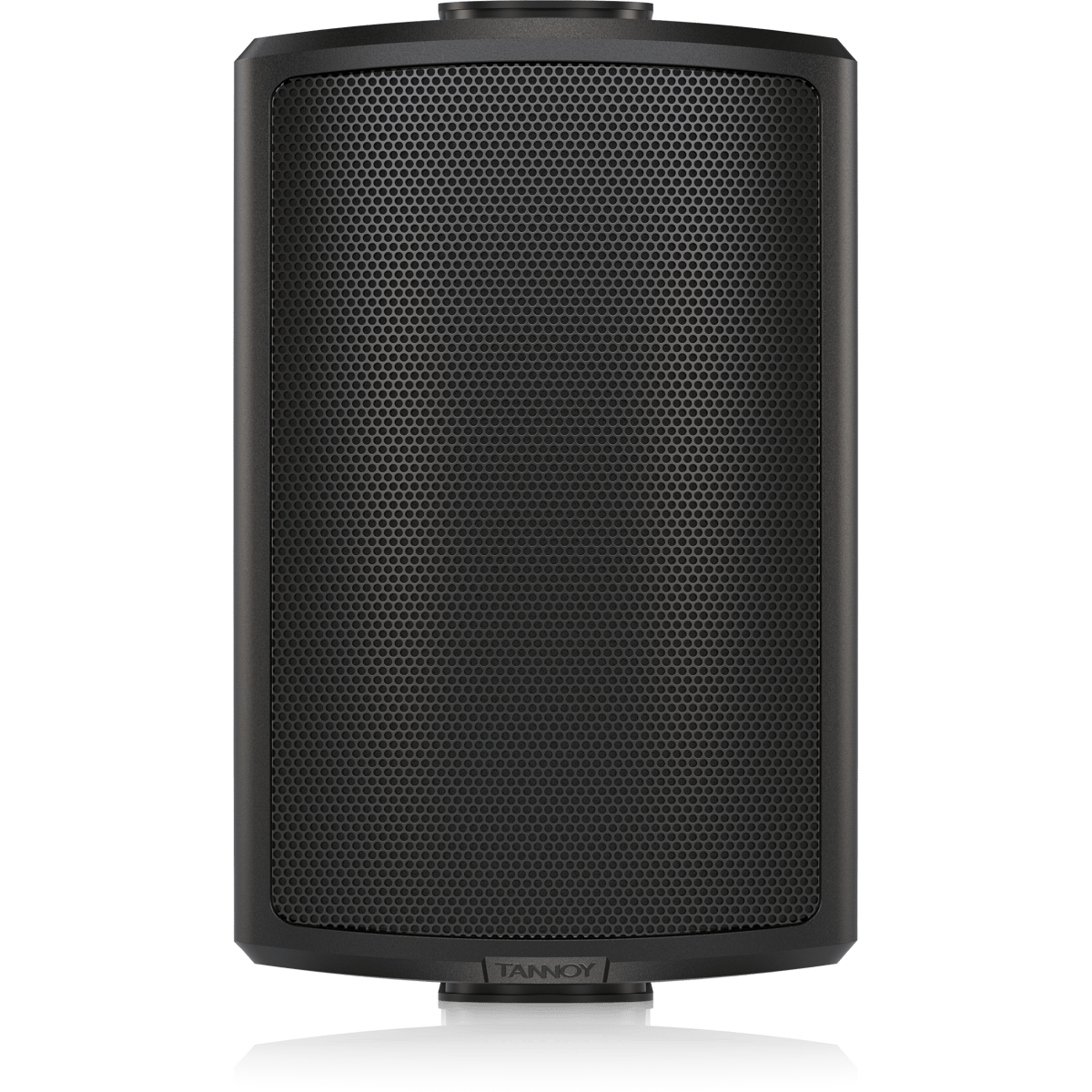

AMS 5DC

The AMS 5DC is a full bandwidth 240-Watt high sensitivity loudspeaker that utilises our all-new proprietary 5" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide to deliver wide and consistent broadband directivity with enhanced intelligibility – plus the linear response of our legendary studio monitors. The AMS 5DC is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. AMS 5DC loudspeakers provide a seamless sound signature within a multi-zoned environment that benefits from both ceiling and wall mounted TANNOY loudspeakers.

Weather-Resistant Enclosure

The elegantly styled semi matt black moulded enclosure blends beautifully into any décor. Additionally the AMS 5DC’s design and performance has achieving an IP65 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, health suites, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install

The highly durable and heat resistant ABS enclosure features a black painted finish and comes with an aesthetically pleasing grille. Installation is quick and easy thanks to the included colour-matched yoke mounting bracket – and an optional VARIBALL multi-angle bracket is available separately. An included weatherproof cable gland protects the Phoenix input and link output connectors, as well as the integral low-insertion loss 30 W transformer with convenient tap switching.
