HumZero

Name: PS Audio HumZero
Brand: PS Audio
SKU: humzero

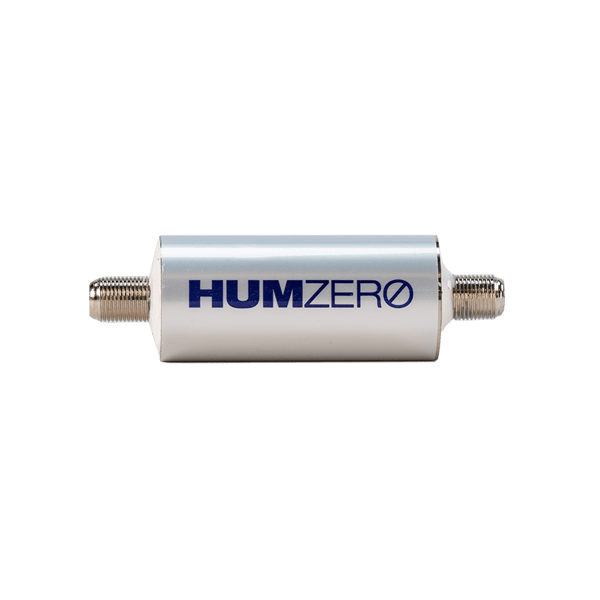

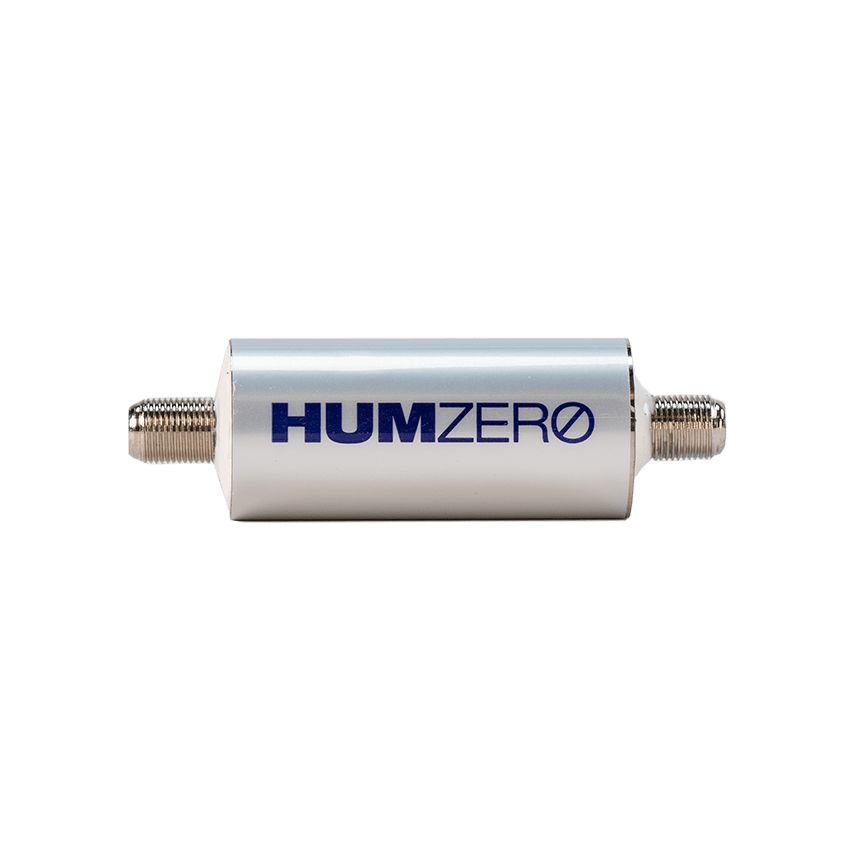

PS Audio HumZero

View at PS Audio

HumZero removes unwanted noise and prevents hum and buzz in the audio system by means of galvanic isolation.

Do you have a hum or buzz in your audio system that won't go away? It may very well be the result of what is known as a ground loop. Electrical ground is where our audio signals, from the tiniest moving coil cartridge output to our preamps and sources all reference to. If that ground gets contaminated, we can suffer from hum, buzz, and bad sound. Noise and ground contamination enter our homes and dirty our grounds through (cable TV) CATV connections with the cable company. If your audio system has any connection to your AV system, or a cable internet modem, then you need PS Audio's HumZero. Placed between the incoming cable and your modem or your cable box, HumZero breaks the ground and frees your audio system from hum. There's no degradation of picture or audio on the TV. HumZero works like a miracle.

Design

Ground contamination is insidious. Once connected together, the dirty outside cable television grounds will mix with your home's cleaner AC power grounds and degrade the performance of both the video as well as audio systems. PS Audio's HumZero stops ground contamination before it can enter the system. Using galvanic isolation techniques, HumZero isolates outside noisy grounds from cleaner inside grounds while maintaining perfect picture quality up to 4K Ultra television signals, or high resolution streaming audio up to 384kHz 24 bit and beyond. HumZero's galvanic isolator provides a ruler-flat video or streaming audio signal producing either broadcast-quality images or high-resolution audio data you can depend on. HumZero permits unrestricted data transfers reliably exceeding 500mbps.

Application

Wherever the outside world enters your home is where the potential for ground contamination exists. Typically, we rely upon one common ground that our electrical system is referenced to. That ground is generally handled by a copper rod buried deep in the ground. The problem for audio systems is when another ground at a very different potential is tied into the home. The most likely culprit comes from our internet/cable television providers who tie the grounds of their noisy systems at the street. HumZero can be used to galvanically isolate the CATV ground of your internet modem or cable television box keeping clean the house ground. Use HumZero between the incoming cable and your television, cable internet modem, or any CATV connection that shares a common ground with your high-end audio system.

Technology

In an audio or video system, the ground should be the single lowest point in the circuit as provided by the AC power. Ground loops occur when a second, competing grounds with an electrical difference is added. When a loop occurs hum, noise, and degraded performance of the audio and video system are the result. Customers often break ground loops through the use of AC cheater plugs, but this is unsafe as AC grounding should be maintained. The proper way of breaking a ground loop is to disconnect the offending ground, which is what HumZero will do.

Galvanic isolation is used where two or more electric circuits must communicate, but their grounds are at different electrical potentials. This ensures the highest levels of noise-free connection and safety as galvanic isolation removes the physical electrical connection. The incoming signal is instead transferred through the air rather than through a physical conductor, thus ensuring 100% isolation, noise-free performance, and complete safety.

HumZero offers noise-free performance without sacrificing audio or video quality. HumZero will seamlessly pass high-bandwidth signals up to 50mHz without loss, enabling noise-free performance of the most demanding digital audio and video signal transmissions. This not only ensures noise-free delivery of up to 4K Ultra television and streaming audio of up to 384 kHz and beyond but keeps your high-performance audio and video systems clean and safe. HumZero is the answer to ground contamination without sacrificing quality.
