PMC PMC12 Sub

PMC12 SUB delivers ultra-low-distortion, deep LF performance with advanced 12-inch driver design, 1000W DSP control, and scalable headroom for professional monitoring.

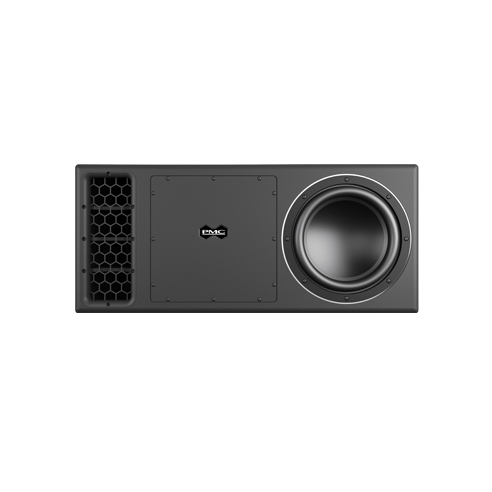

The PMC12 SUB is designed to supplement any PMC monitoring system as an independent low-frequency subwoofer. Like its sibling models, the PMC12 SUB shares the latest-generation ATL™ Advanced Transmission Line cabinet with the full-range PMC12, with LaminairX™ airflow venting, but lacks that model’s tweeter and midrange drivers. The single LF driver is PMC’s newly developed, in-house 12-inch bass driver featuring double-stacked magnets, a three-inch, three-layer voice coil, and a highly stable suspension. This design maintains linear motor force over an extended pistonic excursion, resulting in ultra-low distortion at all monitoring levels and performance that matches that of typical 15-inch systems.

The subwoofer is controlled and powered by PMC’s master36 rack-mountable DSP/Amplifier unit, which delivers 1000W to the bass driver from its ultra-transparent Class-D amplification. Integrated DSP offers precision digital high and low-pass filters optimised for the PMC12 SUB’s bespoke LF driver, along with transparent excursion limiting for system protection, and comprehensive room-optimisation EQ. The system accepts both analogue and digital inputs and can be controlled over a standard LAN via the SoundAlign2 browser-based interface.

Where greater LF power and headroom are required, a second PMC12 SUB can be daisy-chained and powered from the same master36 for a total of 2000W.

• Type: 1-way, ATL™ active reference subwoofer
• Cabinet size: H 870mm x W 380mm x D 535mm (+10mm LF Driver surround)
• Complete cabinet weight per unit: 52kg
• Effective ATL™ length: 3.5m(11.5ft)
• Electronics (Per channel) 1 x PMC master36 DSP/Power amplifier
• Power per cabinet: 1000W (LF 1000W)
• Full DSP Room Alignment EQ facilities with SoundAlign2
• Analogue & digital (up 192kHz) inputs
