PMC PMC10 SUB

PMC10 SUB delivers extended, controlled low-frequency power with advanced ATL design, 1000W DSP amplification, and scalable headroom for precision professional monitoring.

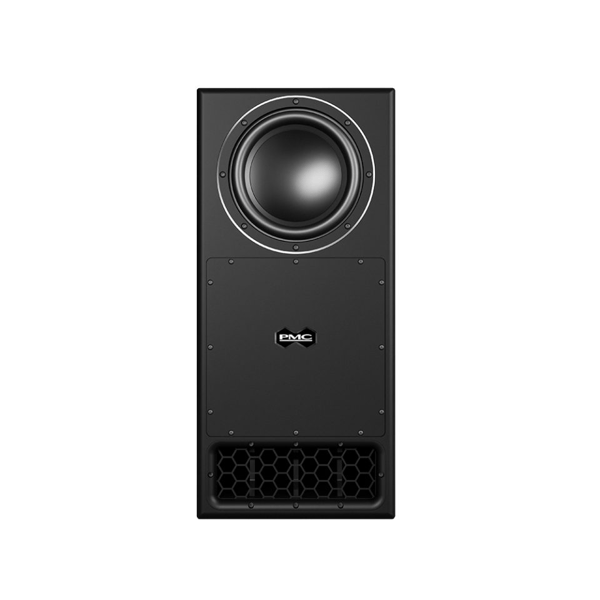

The PMC10 SUB is designed to supplement any PMC monitoring system as an independent low-frequency subwoofer. The PMC10 SUB shares the same latest-generation ATL™ Advanced Transmission Line cabinet with LaminairX™ airflow venting as the full-range PMC10 monitor but lacks that model’s tweeter and midrange drivers. The innovative, in-house, custom-designed 10-inch bass driver features a large excursion range, delivering extended low-frequency performance typically associated with significantly larger enclosures and 12-inch drivers.

The loudspeaker is controlled and powered by PMC’s master36 rack-mountable DSP/Amplifier unit, employing ultra-transparent Class-D amplification to deliver 1000W to the bass driver. Its integrated DSP offers precision digital high and low-pass filters optimised for the PMC10 SUB’s bespoke LF driver, along with transparent excursion limiting for system protection, and comprehensive room-optimisation EQ. The system accepts both analogue and digital inputs and can be controlled over a standard LAN via the SoundAlign2 browser-based interface.

Where greater LF power and headroom are required, a second PMC10 SUB can be daisy-chained and powered from the same master36 for a total of 2000W.

• Type: 1-way ATL™ active reference subwoofer
• Cabinet size: H 770mm x W 355mm x D 420mm (+10mm LF Driver surround)
• Complete cabinet weight: 42kg
• Effective ATL™ length: 3.6m(11.8ft)
• Electronics (Per channel): 1 x PMC master36 DSP/Power amplifier
• Power per cabinet: 1000W (LF 1000W)
• Full DSP Room Alignment EQ facilities with SoundAlign2
• Analogue & digital (up 192kHz) inputs
