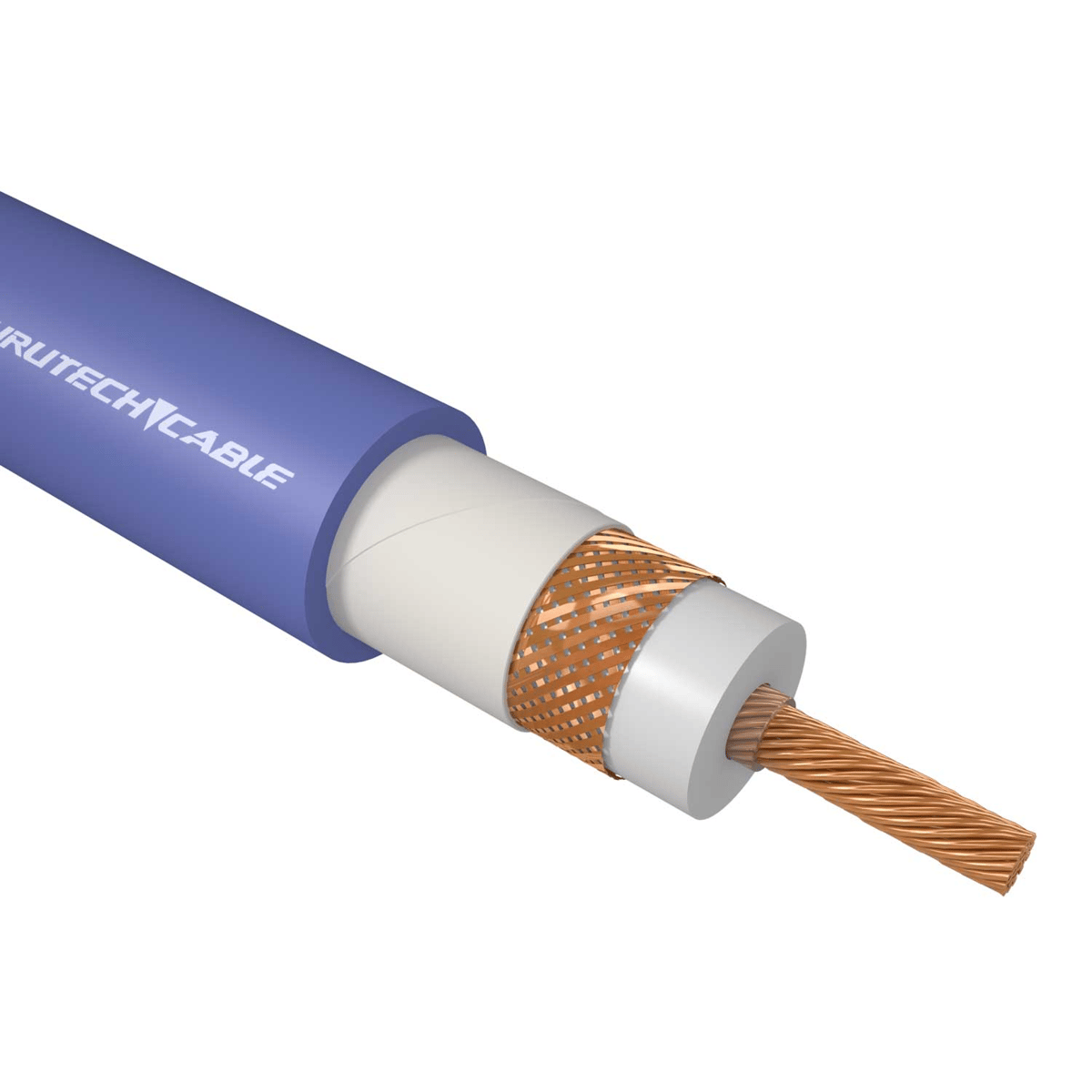

Interconnect Coaxial Bulk Cable

FC-α(Alpha)12

Conductor

Material

Construction（pcs／mm）

Sectional Area / AWG

0.74 SQ mm / 19AWG

Insulation-1

Material

Audio grade PE (Transparent)

Insulation-2

Material

Audio grade High Density Polyethylene Foam

Shield

Material

0.12mm braidedα(Alpha) OCC conductor

Barrier lay

Material

Cotton paper tape wrap

Sheath

Material

Flexible PVC(Dark Purple Blue)

Cable type

75Ω Coaxial type

  Overall Diameter Approx.    （mm）

 8.0

Item

Specification

Test Method

Max. Conductor Resistance   Ω／m

    0.149

   JISC3005  6    20℃

Min. Insulation Resistance   MΩ‧km

>1000

   JISC3005  9.1   20℃

Characteristic Impedance       Ω

75±3

at 10MHz

Capacitance                 PF/m

83.5

at 1KHz

Dielectric Strength          V／1 min.

 AC 1000

   JISC3005  8

50 Meter Reel

Furutech’s α (Alpha) OCC is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α(Alpha) OCC is made with high-purity oxygen-free mono-crystal copper using a special casting process. Unlike regular OFC, almost all of the impurities of this high-purity OCC have been removed at the micron level through a special casting process.
