Furutech DSS-4.1

Furutech's Top-Tier Bulk Speaker Cable (International markets only)

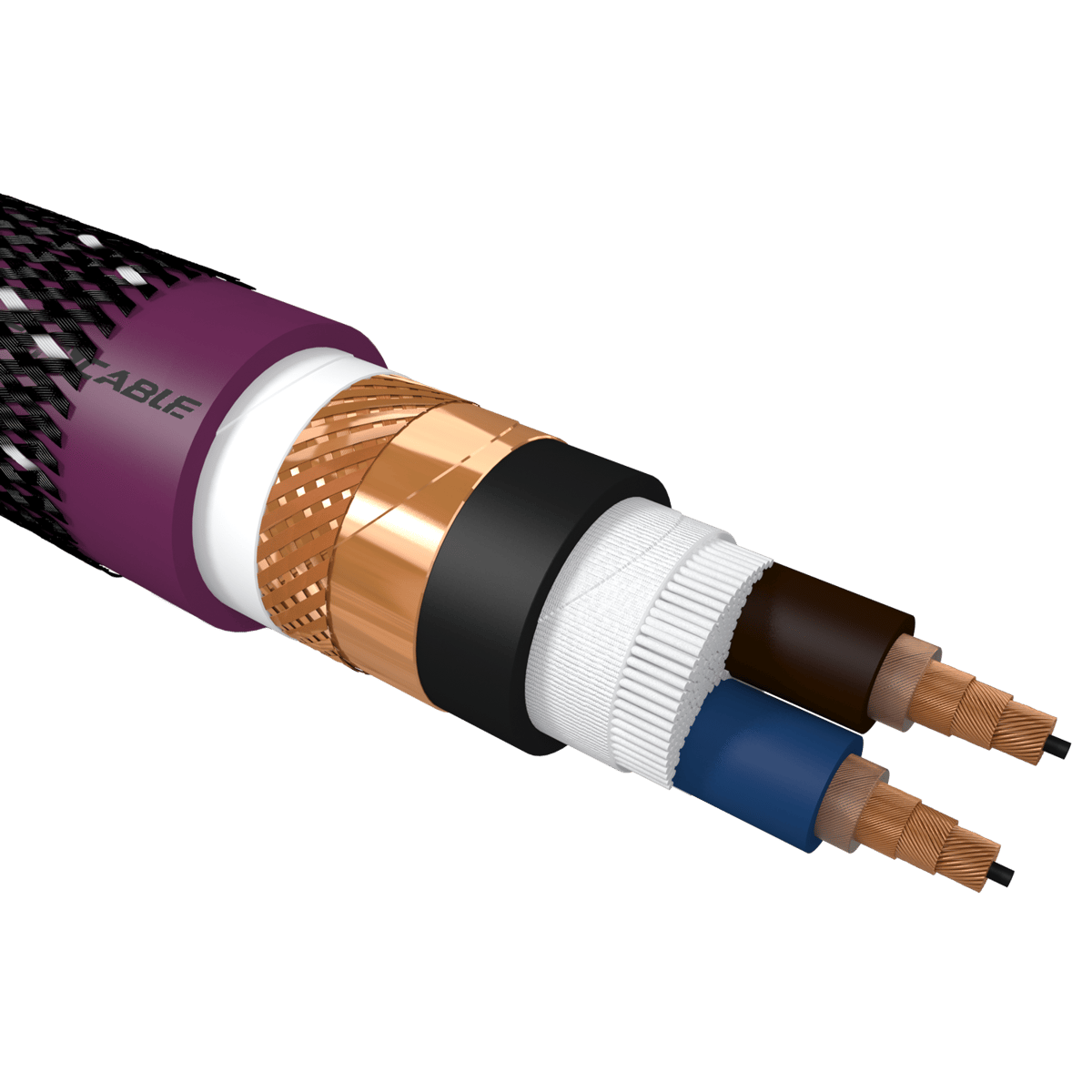

Construction and Material

Item

Specification

Conductor

Material

Alpha-OCC  +  -DUCC (7N Class)

Construction

pcsmm

Center – 1/0.8 PE core

     Inner – 89/0.18α-OCC (Right rotate)

    Middle – 39/0.18α-OCC (Left rotate)

                  Outer – 62/0.13α-DUCC (Right rotate)

 Diameter mm

2.58 Approx.

Size

11AWG / 4.08 Sq.mm

Insulation

Inner Material

Audio Grade FEP (Fluoropolymer)

Outer Material

Audio Grade P.E.(Brown for”+”Blue for “-“

 Diameter  mm

5. 5

Twisting

Method

2 Cores Twisted Together

Fillers

Polyester fibers Filler

Barrier Layer-1

Non-Woven Fabric wrap

Inner Sheath

Material

Audio Grade Flexible PVC (Black)

Nano-Ceramic / Carbon particle compound

  Diameter   mm

15.0

Shield

Material

Cu-Foil + Braided OFC

Barrier Layer-2

Paperwrap

Outer Sheath

Material

Audio Grade Flexible PVC (Dark purple)

Nom. Thicknessmm

1.2

Outer Sleeve

Material

Nylon yarn stranded braid(Black/Silver)

  Overall Diameter mm

 19.0 Approx.

Electrical Properties

Item

Specification

Test Method

Max. Conductor Resistance     Ωkm

    4.5

   JISC3005  6    20

Insulation Resistance         MΩkm

>2500

   JISC3005  9.1   20

Dielectric Strength           V/1 min.

 AC  3000

   JISC3005  8

30 meter reel
Sold with Furutech DSS cable splitters
(International markets only)

Alpha OCC-DUCC Speaker Bulk Cable DSS-4.1

Furutech’s α (Alpha) OCC‐DUCC is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α (Alpha) OCC –DUCC is constructed using a combination of DUCC Ultra Crystallized High Purity Copper and Furutech’s world famous Pure Transmission α (Alpha)-OCC.

Furutech DUCC Ultra Crystallized High Purity Copper — supplied and regulated with strict quality control by Mitsubishi Materials Industries — is one of the best conductors Furutech engineers have found for signal transmission. (MMI is the leading manufacturer of the highest-purity oxygen-free copper in the world) Mitsubishi process this extremely pure oxygen-free copper with new technology that optimally aligns the crystals while reducing the number of crystal-grain boundaries resulting in a tremendously efficient conductor. Straight OCC’s benefits are its larger “fibrous” crystals in which one dimension is longer than the other two so as to create as few crystal junctions as possible. Thus, OCC’s sensitivity to directionality; one path exhibits the least resistance. Furutech’s world famous Pure Transmission α-OCC is the result of further processing with the Alpha Super Cryogenic and Demagnetizing treatment. However, DUCC purity goes a significant step further. Mitsubishi Materials designed the new conductor to optimally align the copper crystal grain structure in addition to reducing crystal grain boundaries. As a result, DUCC is less sensitive to directionality than OCC.
