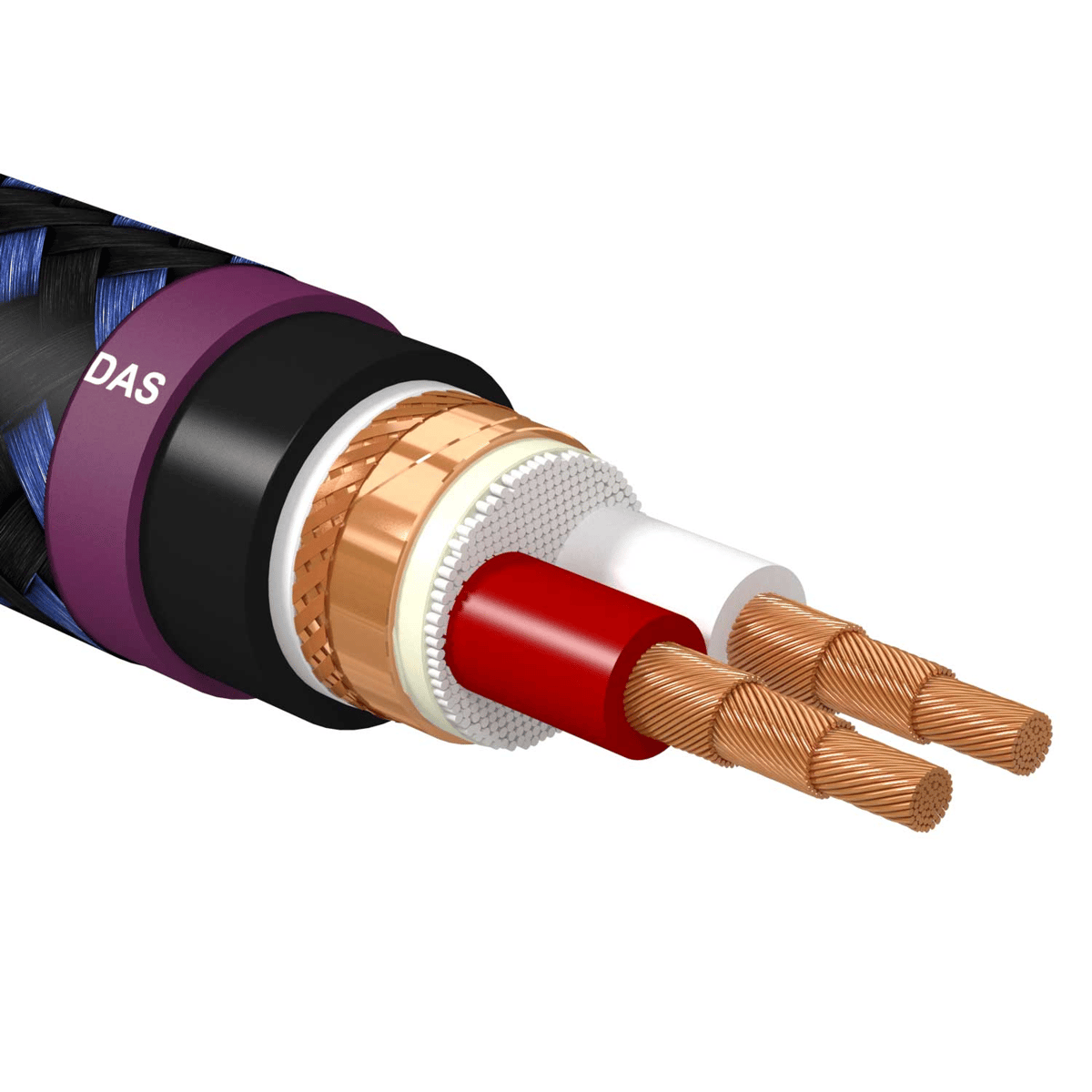

Furutech DAS-4.1

Top-of-the-line bulk balanced cable

Item

Specification

Conductor

Material

Alpha-OCC + -DUCC (7N Class)

Construction

pcsmm

Inner – 21 / 0.18 -OCC (Right rotate)

Middle – 19 / 0.18 -DUCC (Left rotate)

Outer – 25 / 0.18 -DUCC (Right rotate)

 Diameter mm

1.65 Approx.

Size

15AWG / 1.65 Sq.mm

Insulation

Material

Audio Grade PP (Polypropylene, Red for”+”White for “-“)

Mom. Thickness mm

0.47 Approx.

 Diameter  mm

2.6 Approx.

Twisting

Method

2 Cores Twisted Together

Fillers

Polyester yarn

Barrier Layer

Non-Woven Fabric wrap

Shield

Method

Cu-Foil wrap + Braided (24×6 / 0.13 α- OCC) + Paper wrap

Inner Sheath

Material

Audio Grade Flexible PVC (Black)

Nano-Ceramic / Carbon particle compound

  Diameter   mm

7.8 Approx.

Outer Sheath

Material

Audio Grade Flexible PVC (Dark purple)

Nom. Thicknessmm

0.7 Approx.

Diameter   mm

9.2 Approx.

Outer Sleeve

Material

PP yarn stranded braid(Black/Blue)

  Overall Diameter mm

 10.0 Approx.

>>>>>>>>>>>>>>>>>>>>   -D.U.C.C.  Series  DAS- 4.1  Balanced Interconnect Cable   D.U.C.C. registered by MITSUBISHI CABLE INDUSTRIES,LTD.          >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Alpha OCC-DUCC
DAS-4.1
Balanced Interconnect Bulk Cable (30m/98.4ft/Reel)

D.U.C.C. (Dia Ultra Crystallized Copper)
α (Alpha) OCC –DUCC is constructed using a combination of DUCC Ultra Crystallized High Purity Copper and Furutech’s world famous Pure Transmission α (Alpha)-OCC.

Furutech DUCC Ultra Crystallized High Purity Copper — supplied and regulated with strict quality and supply control by Mitsubishi Materials Industries — is one of the best conductors Furutech engineers have found for signal transmission.

Mitsubishi process this extremely pure oxygen-free copper with new technology that optimally aligns the crystals while reducing the number of crystal-grain boundaries resulting in a tremendously efficient conductor. Furutech combines DUCC with Furutech’s world famous Pure Transmission α-OCC and treats this optimized dual conductor configuration with Furutech’s Alpha Super Cryogenic and Demagnetizing process to take purity and conductivity a significant step further.

D.U.C.C. is a registered trademark of Mitsubishi Cable Industries Ltd.
