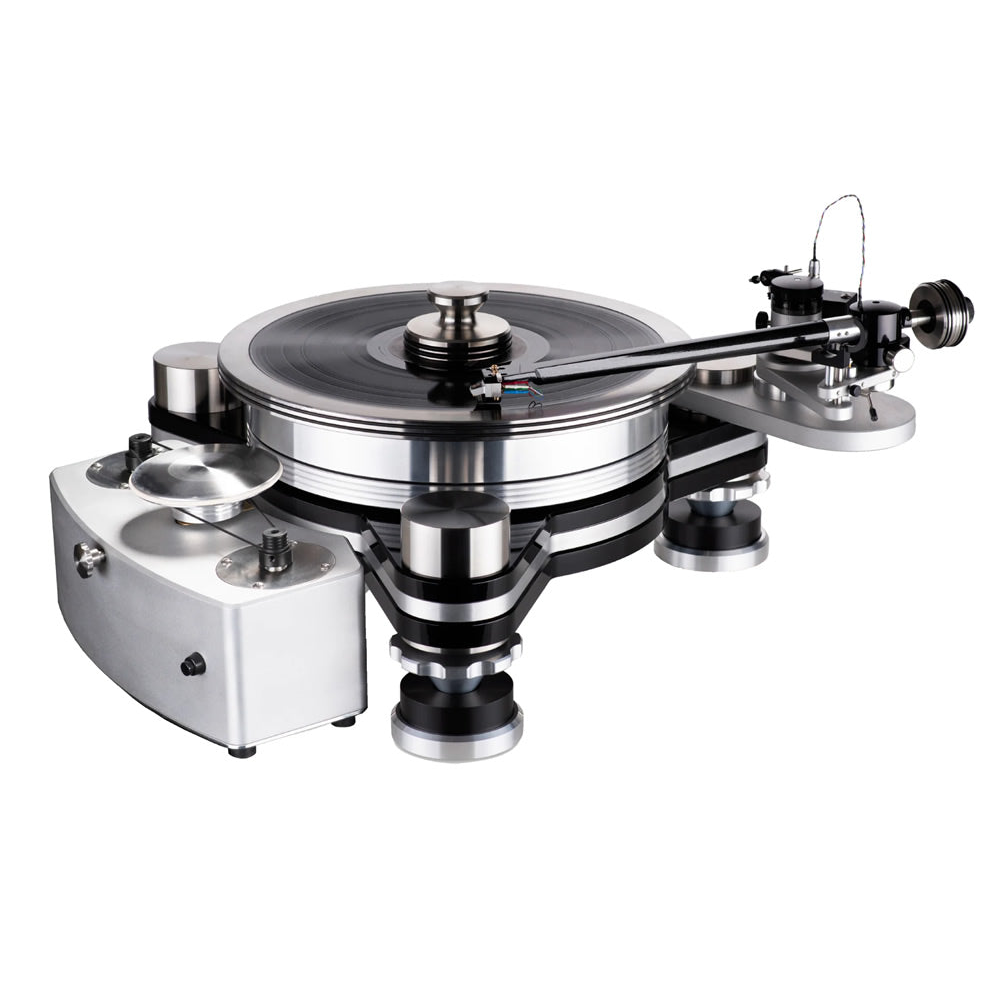

VPI Industries Avenger Reference

This model went through an evolution with the creation of our top-of-the-line Titan turntable using the same concept of the rim drive motor assembly driving the magnetic platter.  The magnets are machined into the platter at the center and do not interfere with the owner’s cartridge.  Our methodology is the ultimate vibration filter for a high-end system.   Tonearm included. Cartridges are sold separately.

Features The Avenger chassis is three layers of bonded acrylic/aluminum/acrylic with damping material between layers.3 stainless steel corner posts for both isolation and tonearm mounting and for mechanical grounding (up to 3 will fit).Analog Drive System (ADS) for the utmost accuracy in motor speed and fine speed adjustments.Periphery Ring clamp for the ultimate in record warp reductionThe 300 RPM, 24 pole, AC synchronous motor in machined aluminum Rim Drive Motor assembly.The Inverted bearing features a hardened stainless steel shaft, 60 Rockwell chrome hardened ball, spinning in a phosphor bronze bushing, and sits on a PEEK thrust disc. The belt side load is placed at the center of the spinning bearing for zero teeter-totter effects.​The 25 pound 6061 aluminum magnetic drive platter has an accuracy of +/- .001” in a 39” circumference.The motor pulley has an accuracy of +/- .0005” when leaving factory.Fatboy 12" Gimbal with Nordost Reference wire.Avenger Reference Feet – Machined aluminum, knurled cones set in a machined Delrin isolation pad that sites in a machined aluminum isolation pad for top of the line isolation and noise cancellation.
