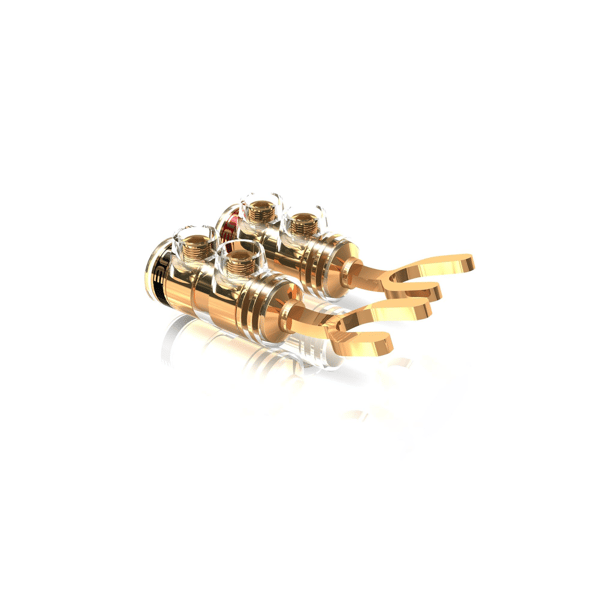

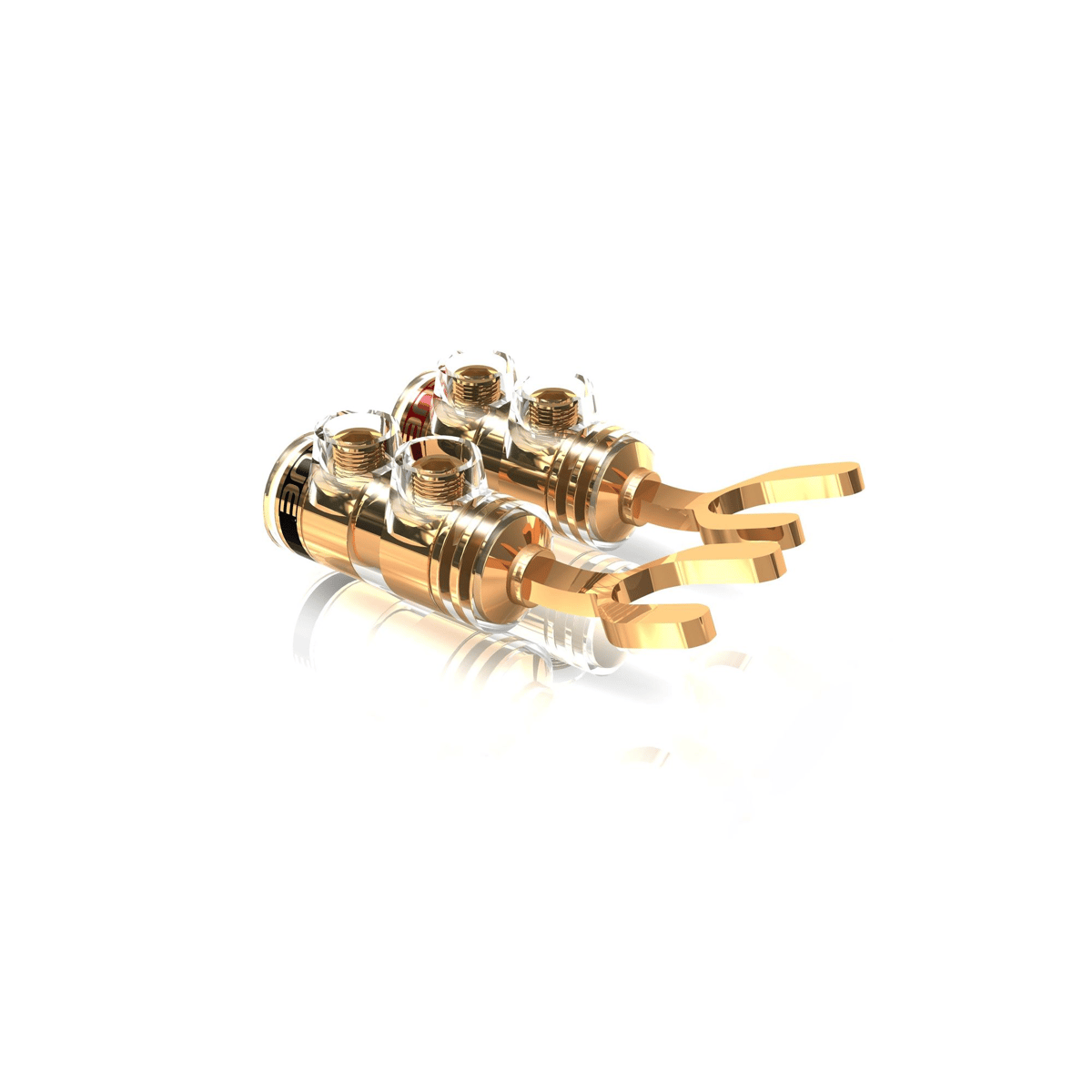

Viablue TS Spades Plugs 8 mm

Comfortable assembly without soldering

• 24 carat real gold-plated
• Short-circuit protection due to a transparent insulating shell
• Cables up to Ø 5 mm
• Cable assembly by two M4-hexagon socket screws 1.5 mm
• Spade width 8 mm

Assembly instructions

Our recommendation: VIABLUE™ OFC Crimp sleeves to protect against kinking and accidental breaking of cable strands.

• Shell width 11 mm
• Shell height 14 mm
• Shell length 25.5 mm
• Fork contact for a tight fixation on the speaker terminal
• Contact length 16.5 mm
• Contact width 14 mm
• Contact opening 8 mm
• Maximum cable input 5.5 mm
• Cable assembly by two M4-hexagon socket screws 1.5 mm
