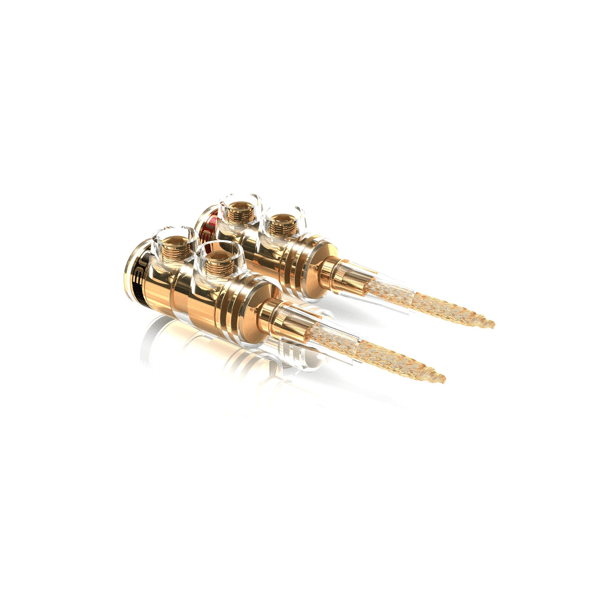

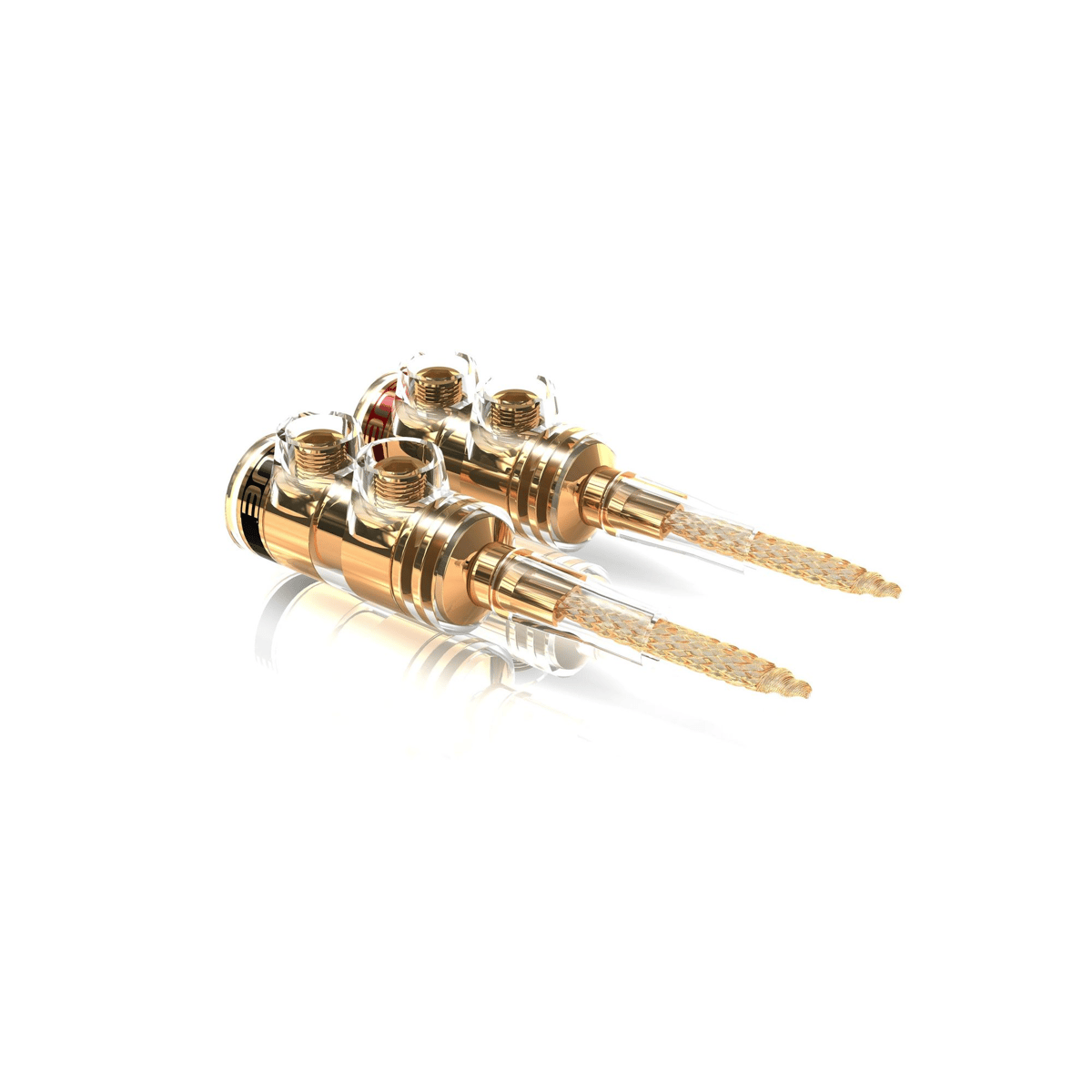

Viablue TS Flexible Pins Plugs

Ideal connection on spring clips for cables with large cross-sections

• Comfortable cable assembly without soldering by two M4-hexagon socket screws 1.5 mm
• Flexible contact strands for clamped connections
• 24 carat real gold-plated contacts
• Short-circuit protection due to a transparent insulating shell
• Cables up to Ø 5 mm

Assembly instructions

Our recommendation: VIABLUE™ OFC Crimp sleeves to protect against kinking and accidental breaking of cable strands.

• Width 11 mm
• Height 14 mm
• Shell length 25.5 mm
• Contact length 14 mm incl. removable insulating shell
• 16 mm braided wire strands
• Maximum cable input 5.5 mm
• Cable assembly by two M4-hexagon socket screws 1.5 mm
