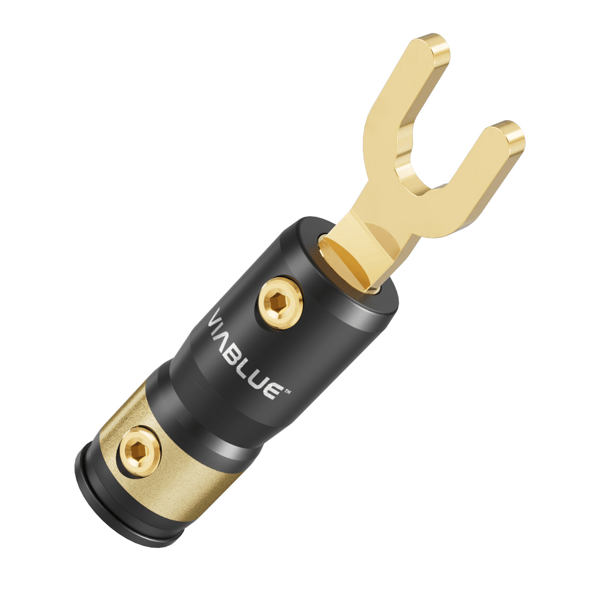

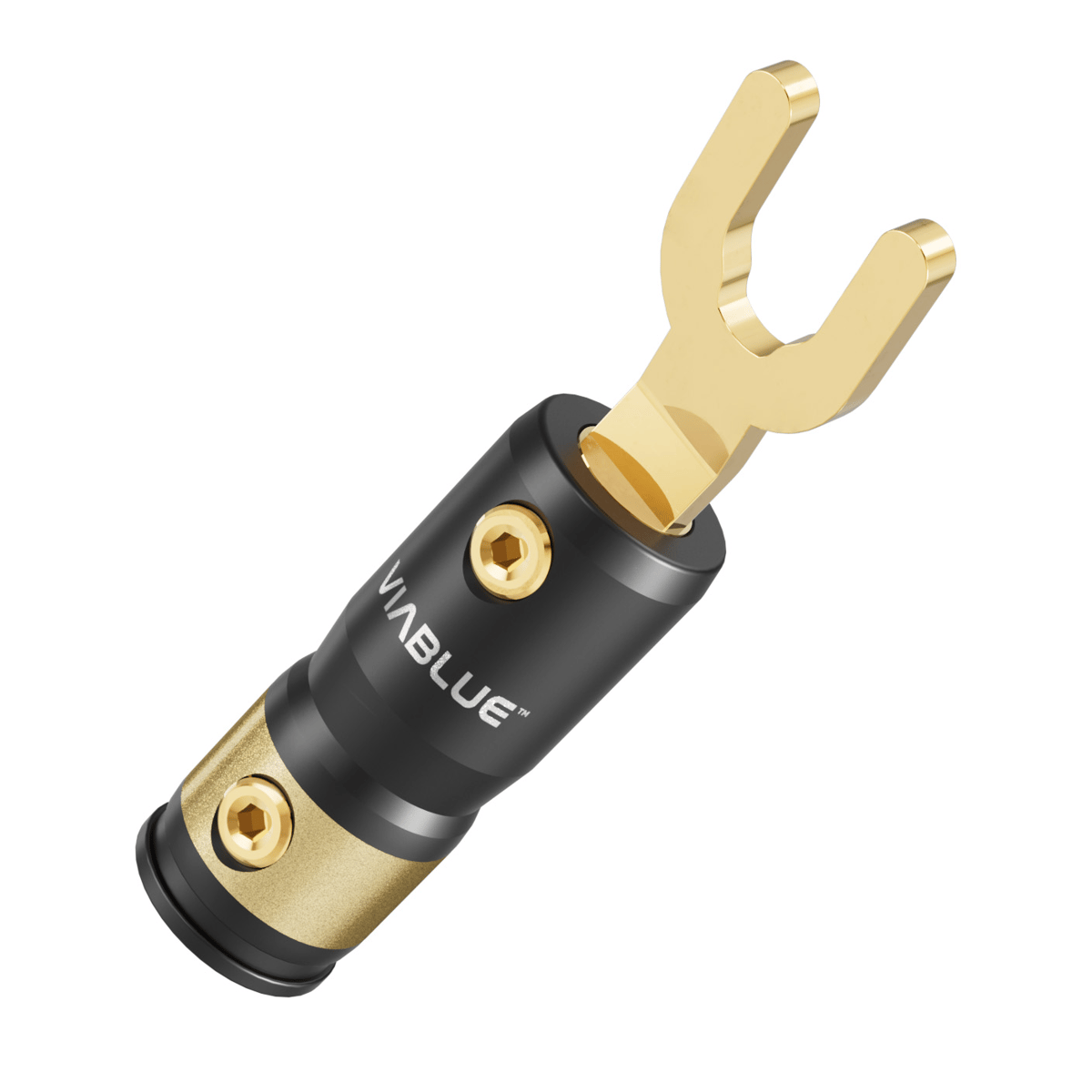

Viablue T8 T8 Mini Spades 4 MM

High-end plug connection

• Fork contacts with double opening. 2 and 4.2 mm fork width for an individual terminal connection
• 24 carat real gold-plated contacts
• Outer shell made of black, satin-matt aluminum
• Strain relief for cables Ø 2.5 – 5.5 mm
• Strain relief provided by one M3 hexagon socket screw 1.5 mm

Additional Features:

• 2 diameter decreasers to comfortably adjust to various cable diameters

Assembly instructions:

For cable assembly, contacts can be completely separated from their shell. Stripped cable ends are soldered on the contact piece

Diameter Decreaser

Centric adjustment of cables with small Ø from 3 mm. They reduce the inner diameter where cables are mounted to provide a perfect fit and a professional cable assembly.

• Ø: 8 mm
• Shell length: 21 mm
• Length spade contact: 14 mm
• Width spade contact: 13,5 mm
• Spade opening: 2 und 4,2 mm
• Cable input for cable Ø: 2,5 - 5,5 mm
• Inner Ø soldering tub: 3,25 mm
