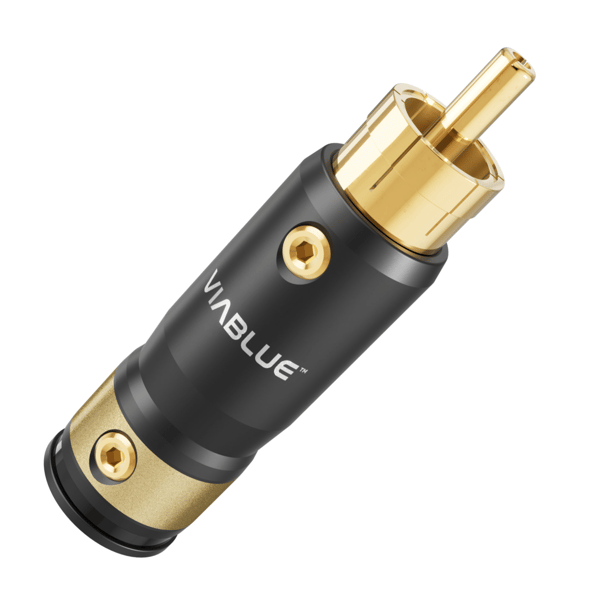

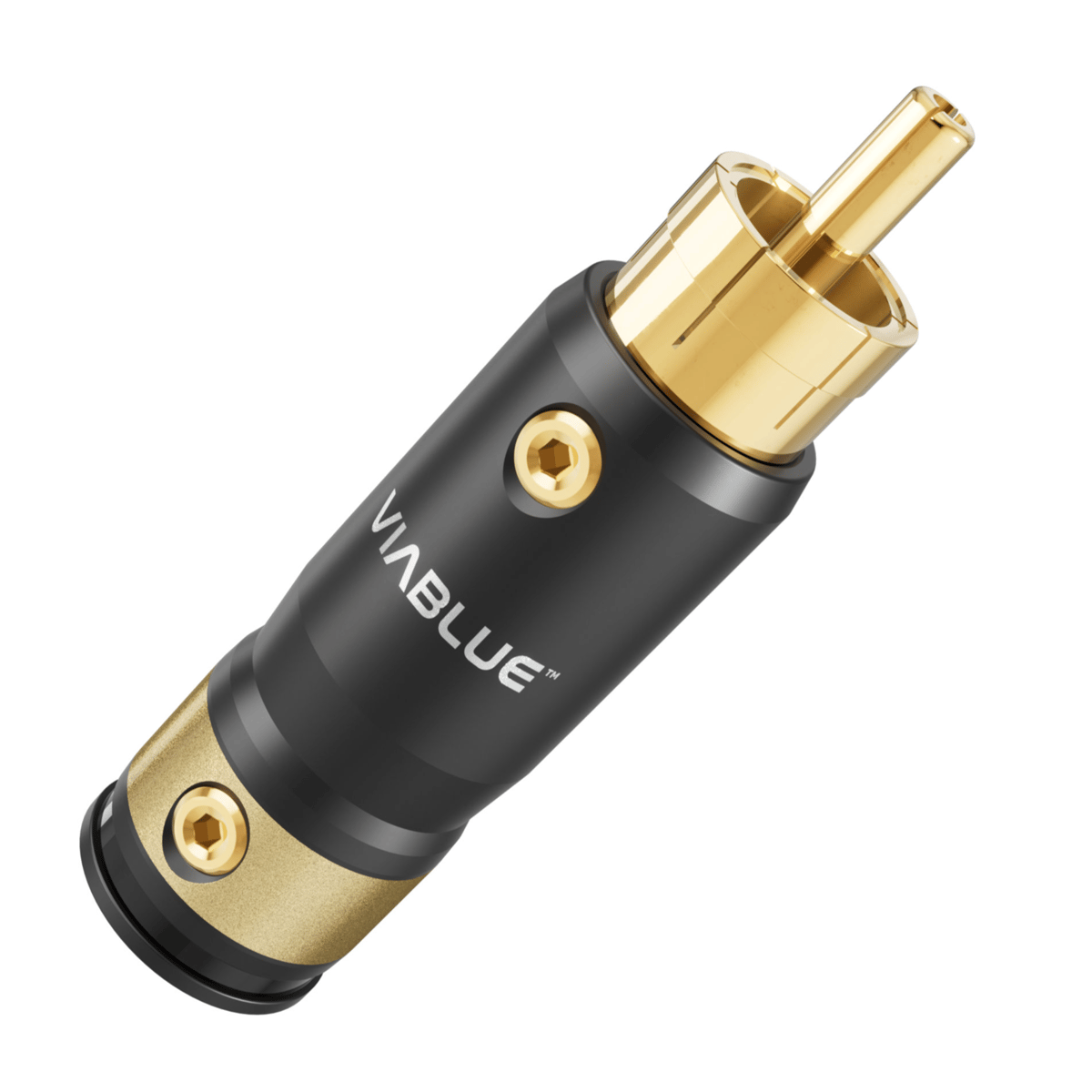

Viablue T8 RCA Plugs XL

High-end plug connection

• Uniquely shaped contact crown to optimize contact pressure and provide a tight connection
• 24 carat real gold-plated
• Outer shell made of black, satin-matt aluminum
• Strain relief for cable Ø 8 - 10.5 mm
• Strain relief provided by one M4-hexagon socket screw 1.5 mm

Additional features

• Extended shell length to allow for complex cable structures
• Large inner diameter for extra large cable diameters
• Developed for an ideal assembly of the VIABLUE™ NF-S6 AIR Silver

Assembly instructions

For cable assembly, contacts can be completely separated from their shell. Stripped cable ends are soldered on the contact piece.

• Ø 13.5 mm
• Shell length 38.5 mm
• Cable input Ø 8 - 10.5 mm
• Inner Ø soldering tub: 3 mm
