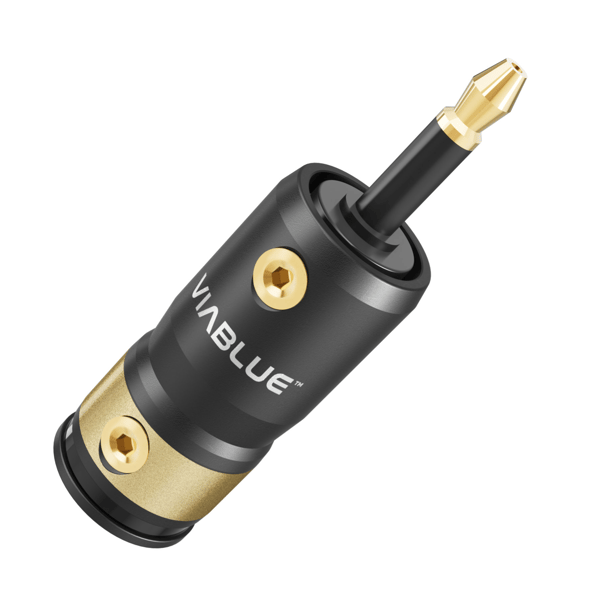

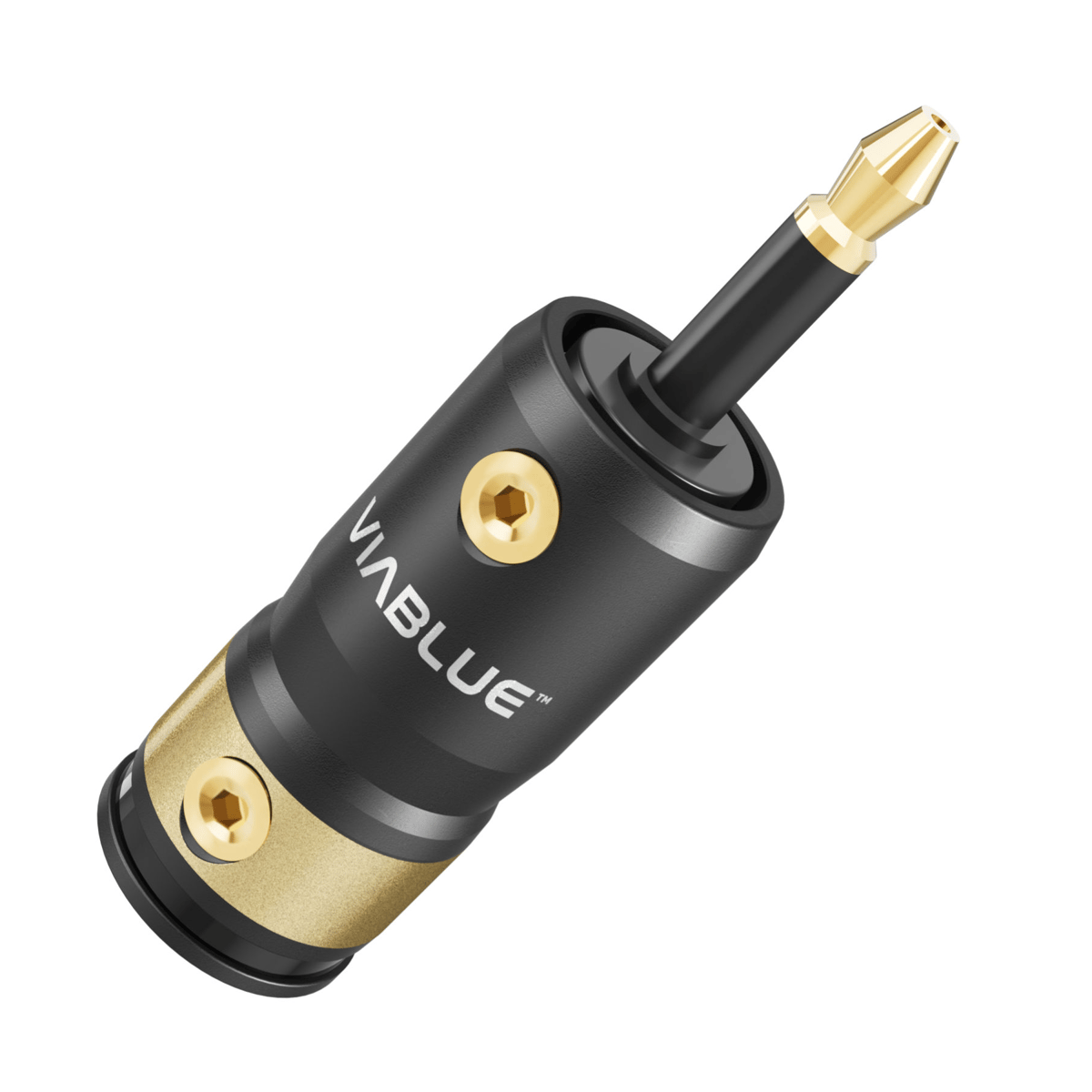

Viablue T8 Mini-Toslink Plugs

High-end plug connection

• Secure and stable guidance of optical fibers through the contact pin
• 24 carat real gold-plated
• Outer shell made of black, satin-matt aluminum
• Strain relief for cable Ø 4 - 9.5 mm
• Strain relief provided by one M4-hexagon socket screw 1.5 mm

Additional features

• 2 diameter decreasers to comfortably adjust to various cable diameters

Assembly instructions

Cable ends of fiber-optic cables are stripped off their insulation and inserted in the core of the plug. The core remains in the shell. The strain relief screws are then tightened and the fiber-optic cable is wet-grinded and polished to finish.

Diameter Decreaser

Centric adjustment of cables with small Ø from 3 mm. They reduce the inner diameter where cables are mounted to provide a perfect fit and a professional cable assembly.

Diameter Decreaser

Centric adjustment of cables with small Ø from 3 mm. They reduce the inner diameter where cables are mounted to provide a perfect fit and a professional cable assembly.
