Viablue Rotation Protectors for Binding Posts

Mechanical locking device and anti-rotation protection for binding posts mounted on loudspeakers or terminals.

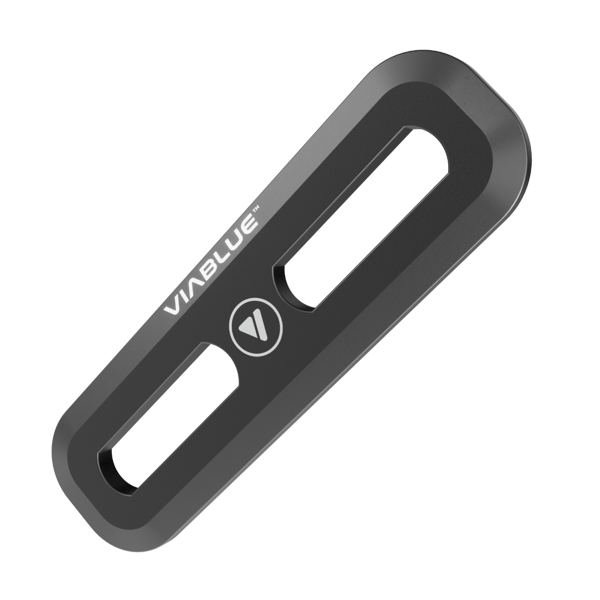

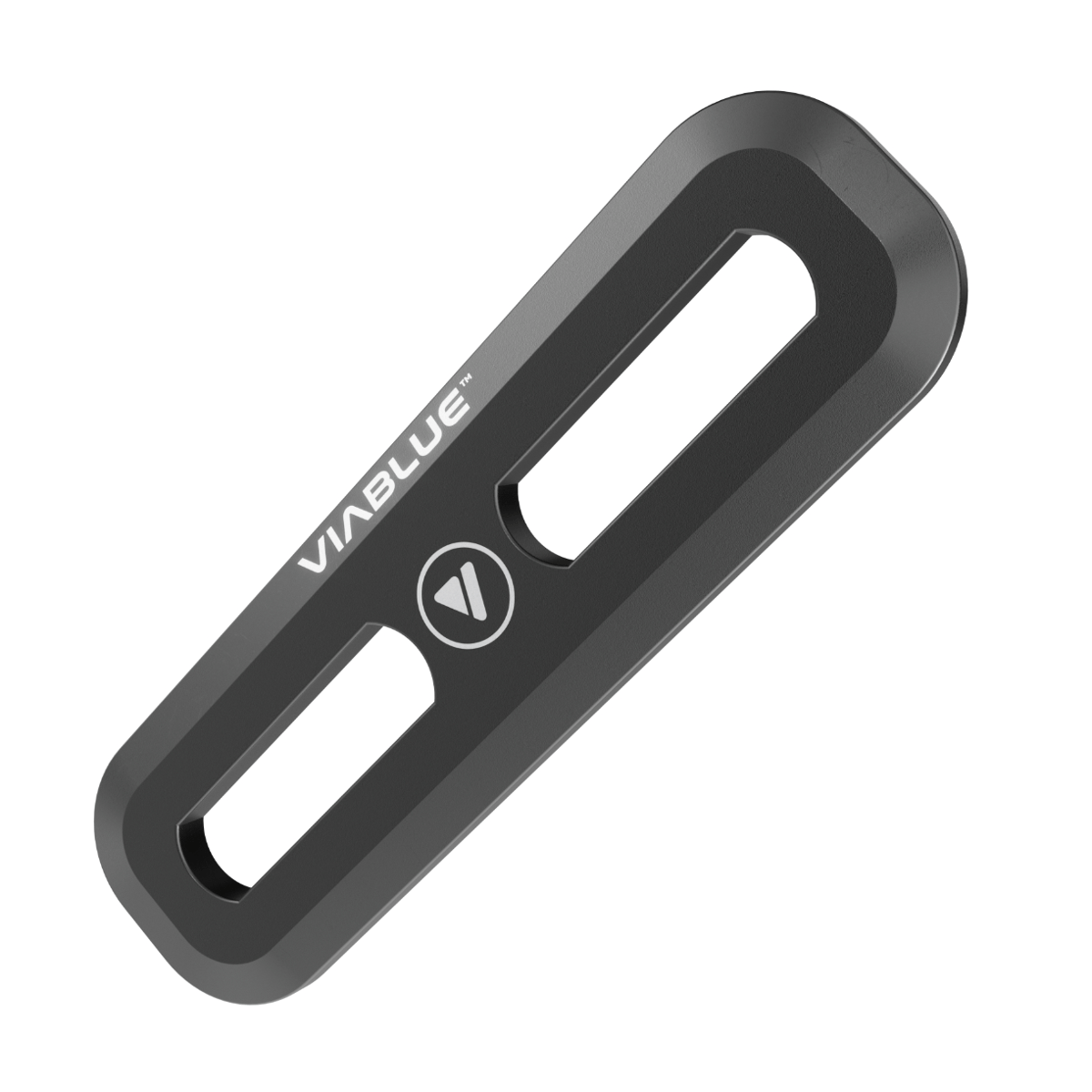

VIABLUE™ Rotation Protector: Stabilization for binding posts

Loudspeakers typically have round mounting holes in their walls. In conventional models with round binding posts, tightening terminations such as spades can cause the binding posts to rotate. The VIABLUE™ Rotation Protector keeps binding posts firmly in place and prevents rotation.

The T8 binding posts developed by VIABLUE™ do not have a conventional 360° threaded design but are flattened on both the top and bottom. This design allows stabilization within the elongated holes of the Rotation Protector, effectively preventing any rotation of the binding posts.

• Material: Polyamide (PA), for a tight installation combined with the best possible vibration absorption
• Break resistant, satin matt surface

For a neat assembly, the Rotation Protector is placed on the inside of the loudspeaker or connection terminal over the threads of the binding posts and is then fixed with the washer disc, including the toothed ring, and the nut.
