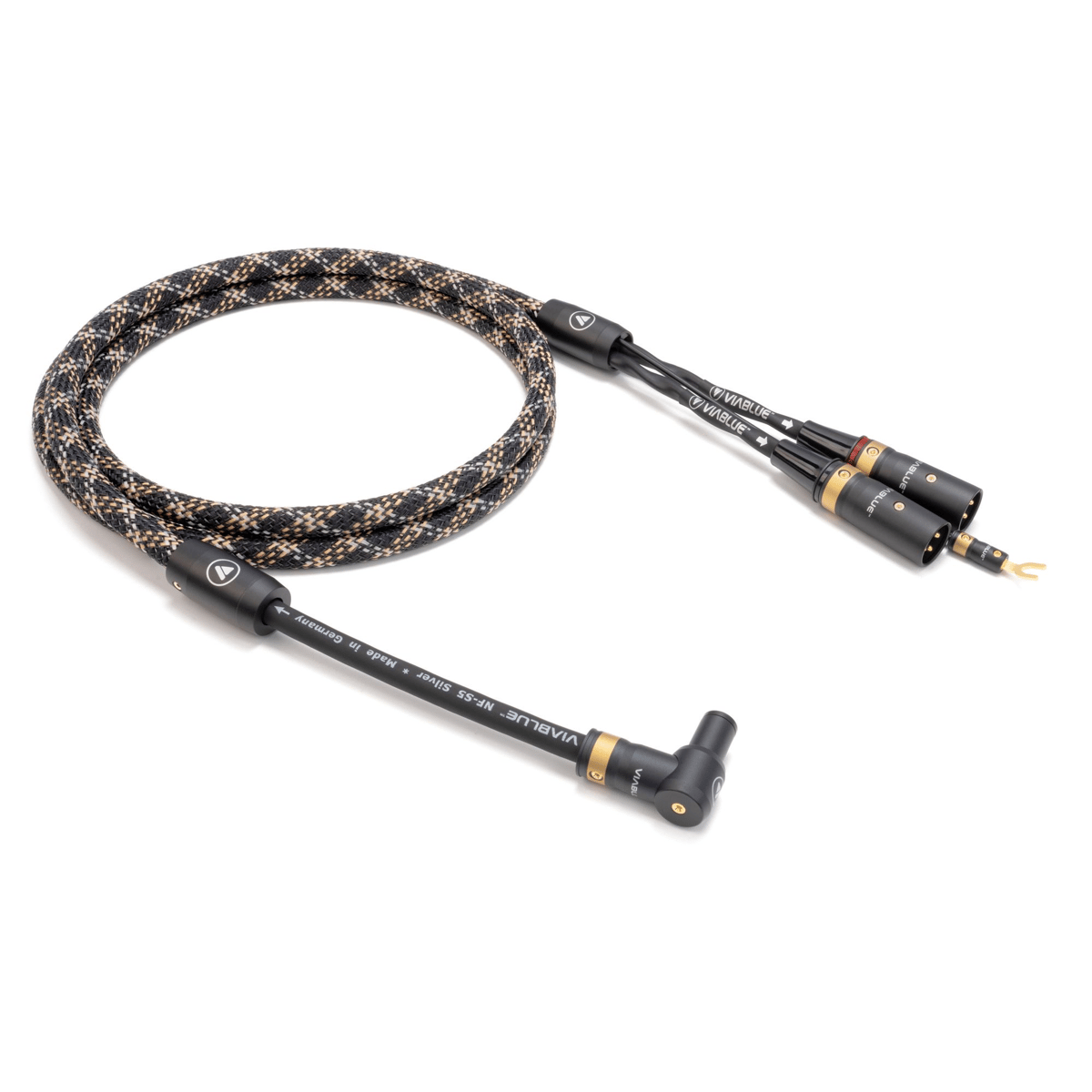

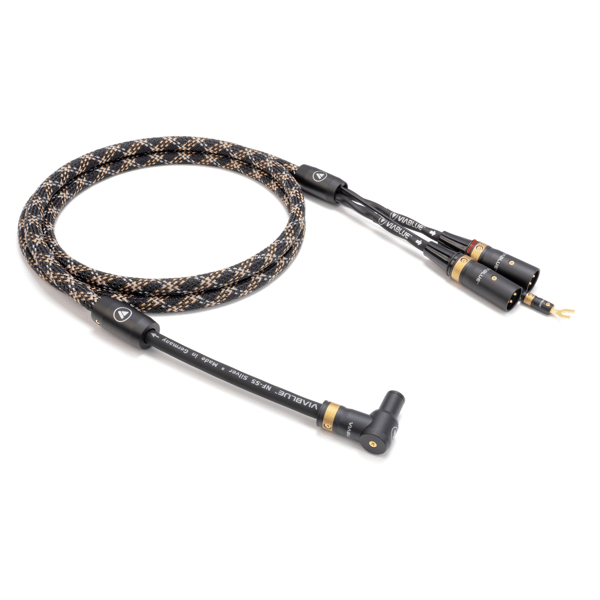

Viablue NF-S5 T8 5PIN DIN SME 90 / XLR

CONCEPT

The goal of any high-quality cable is to reproduce music exactly as it was originally recorded, accurately capturing even the finest musical nuances. The phono cable VIABLUE™ NF-S5 transmits all frequency ranges with complete authenticity and precision. By using a combination of various, perfectly balanced, materials, the NF-S5 delivers a transparent sound image, characterized by a clean bass and exceptional detail in the high-frequency range.

CHARACTER

The VIABLUE™ NF-S5 tonearm cable was specifically designed with versatile and flexible coupling options, including various connections to turntables. It features a total of five internally silver-plated conductors with large cross-sections of 5 x 0.5 mm², making it a standout performer.

PROGRESS / DEVELOPMENT

The VIABLUE™ NF-S5 phono cable was explicitly tailored for connecting turntables. Generally, for the comparatively weak tonearm signals, optimal and 100% comprehensive shielding is both essential and imperative. The NF-S5 is therefore equipped with a dual-layer shielding, comprising both spiral and foil shields.

The silver-plated OFC (oxygen-free copper) internal conductors are individually insulated with polyethylene, a material with low electrostatic charge that positively enhances the sound profile in the high-frequency range. Five conductors arranged in a circular pattern around a centrally placed polypropylene filler make the cable geometry particularly effective. The result: low capacitance, which ensures the best possible signal transfer, especially for tonearms and record players.

For a maximum protection of the delicate and weak signal in tonearm cables, the shielding in VIABLUE™ tonearm cables always extends all the way into the connectors.

FLEXIBLE CONNECTIONS

The five internal conductors of the VIABLUE™ NF-S5 enable a variety of configuration and connection options, including DIN, DIN 90 plugs, RCA, and XLR connectors.

All VIABLUE™ connectors are developed in-house by VIABLUE™. The T8 phono and interconnect plugs feature a full-metal housing made of surface-refined aluminum, to ensure secure and highly precise connections.

HIGH-QUALITY ASSEMBLY, HANDMADE IN GERMANY

The production of the VIABLUE™ NF-S5 is completed with the addition of VIABLUE™ ferrite-core filters and splitters, both crafted from surface-refined aluminum, ensuring premium quality.

For even the finest musical nuances

• 5 silver-plated OFC copper inner conductors
• 64 strands each with 0.10 mm strands
• Polyethylene insulation

Quadruple Shielding "Quattro Silver Shield"

• 1 tinned spiral shield
• 1 ALU-PET foil shield

We Recommend:

• VIABLUE™ T8 tonearm plugsT8 RCA plugsT8 XLR plugsjacks
• VIABLUE™ Ferrite Filter 11
• VIABLUE™ NF-S5 Splitter
• VIABLUE™ cable sleeves (size medium)

OFC Copper

OFC means oxygen-free copper and is an electrolytically refined copper used for its high conductivity with a maximum level of oxygen of 0.001%.

Silvered

Silvered OFC strands guarantee a brilliant and precise rendition of high frequencies.

VIABLUE™ Ferritfilter

a ferrite core, built in a metal shell suppresses the amount of high frequency electromagnetic interference (EMI) noise found in electronic circuits.

VIABLUE™ Splitters

provide an intelligent and precise cable routing. They stabilize single strands and thus prevent cables from damages near cable outlets.

• Cable-Ø: 9 mm / AWG 20
• Finishes: silver-plated / tinned
• Conductor capacitance: 50 pF/m | Shield capacitance: 100 pF/m
• Burn-in time: approx. 22 hours

The NF-S5 test report: more presence, more warmth, more precision.
