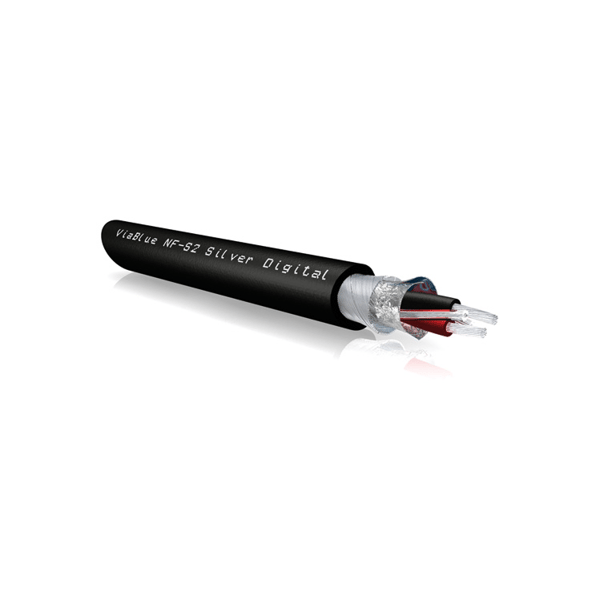

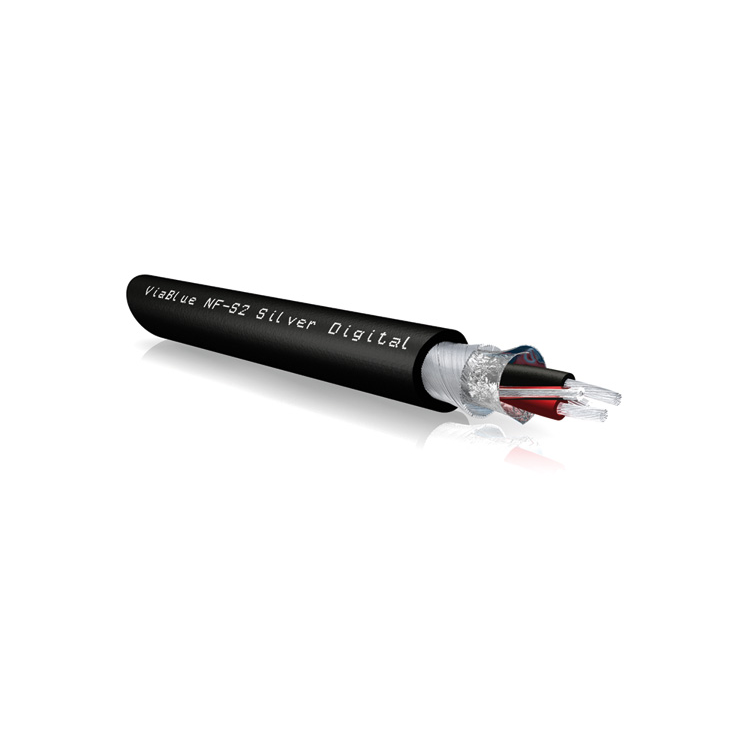

Viablue NF-S2 Silver

VIABLUE™ NF-S2 Silver digital RCA cables are well balanced symmetrical digital cables with an impedance of 110 ohms. AES / EBU and DMX512 compliant.

Exact, complete and fast transmission of digital signals

• 2 inner 0,5 mm² conductors made of tinned OFC copper
• 38 single strands (19 each)
• Polyethylene insulation

2 shields, 100% distortion free

• ALU-PET foil shield
• Silvered spiral shield with 0,15 mm Ø single strands
• Separating fleece foil

We recommend:

• VIABLUE™  T8 XLR PlugT8 XLR Jack
• VIABLUE™ ferrite filter 9
• VIABLUE™ cable sleeves

OFC Copper

OFC means oxygen-free copper and is an electrolytically refined copper used for its high conductivity with a maximum level of oxygen of 0.001%.

Silvered

Silvered OFC strands guarantee a brilliant and precise rendition of high frequencies.

• Outer Ø 8 mm
• AWG: 21
• Impedance: 110 ohms
• Burn-in time: approx. 18 hours
• Resistance: 40 ohms
• Capacitance: 47pF/m
