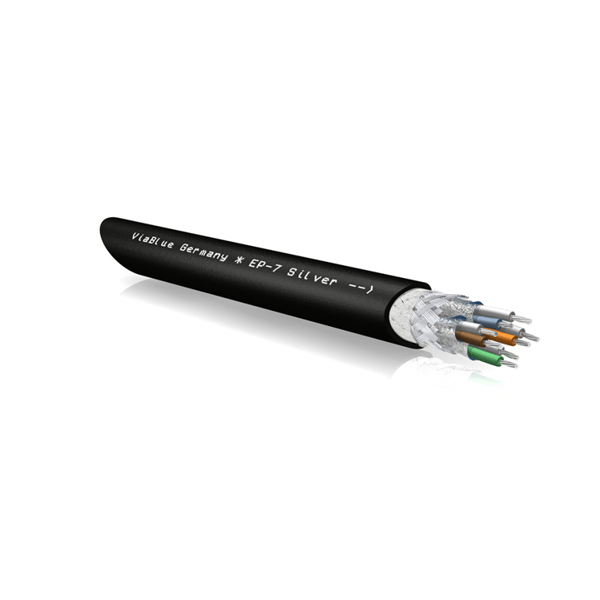

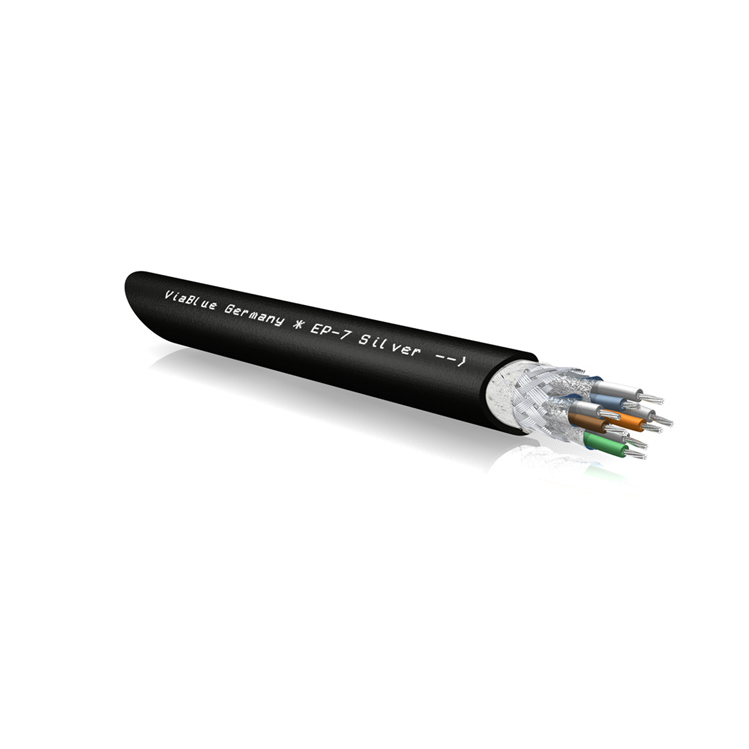

Viablue EP-7 Silver Cat-7

VIABLUE™ EP-7 Silver Cat7 network cables are twisted-pair data cables, which guarantee full protection of sensitive data of external confounding effects and distortion. They provide an optimal gigabit high speed networking, leading to an extremely efficient and complete streaming of HD audio and UHD video formats.

For professional patch-cable applications

• 8 conductors of tinned OFC copper strands
• Soft banding
• Satin matt sheath: highly flexible and ultra resistant

100% shield coverage by a total of 5 layers

• Silver-plated OFC braided shield
• 4 aluminum foil shields
• To prevent any distortion such as mobile phone signals
• Jitter-free, no matter which frequency

We recommend:

• VIABLUE™ T6s RJ-45 Cat6A connectors
• VIABLUE™ cable sleeves

OFC Copper

OFC means oxygen-free copper and is an electrolytically refined copper used for its high conductivity with a maximum level of oxygen of 0.001%.

Silvered

Silvered OFC strands guarantee a brilliant and precise rendition of high frequencies.

• Made for patch cable applications
• CAT-7
• Real 600 MHz
• Inner cores: OFC tinned
• Braided shield: OFC silver-plated
• Cross section: AWG 26/7
• Bending radius 5 cm
• Operating capacity, nominal 45 nF / km
• Relative propagation velocity, approx. 0.76 C
• Characteristic impedance 1-100 MHz = 100 +/- 15 ohms
• Characteristic impedance 100-250 MHz = 100 +/- 22 ohms
• Characteristic impedance 250-600 MHz = 100 +/- 25 ohms
• Shield attenuation up to 600 MHz > 60 dB
• Outer Ø 9 mm
