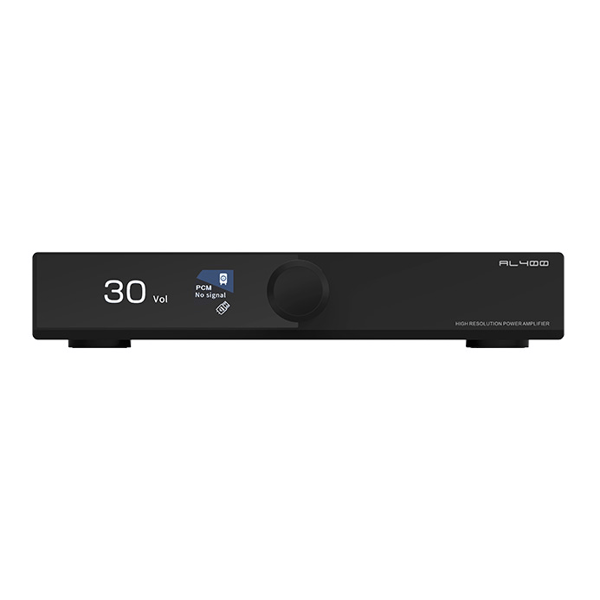

smsl - VMV AL400

TPA3255 Amp chip

Tl digital high power amplifier chip TPA3255 has lower distortion, high efficiencyand low energy consumption;

The electronic volume control chip BD37524FS-E of Japan ROHM Company isused, which has accurate volume control and ultra-low distortion.

Different frequency points can be set in the high, medium and low frequencybands, and with different gains and different Q values, the frequency responsecurve of the output of the power amplifier can be adjusted conveniently andaccurately, so as to meet the needs of different speakers and different listeningenvironments as much as possible.

The output volume of the subwoofer is adjustable, four low-pass cutoff frequenciesare selected, and the selection of phase 0 and 180 makes the main speaker in the2.1 speaker system better match with the active subwoofer.

Built-in low noise vinyl head amplifier, which can adapt to the use of MM and MCheads;

Built-in HDM(eARC) receiver;

Support MQA decoding and MQA-CD decoding;

The third generation XMOS XU-316, PCM supports to 32bit/768kHz, and DSDsupports to DSD256;

Cirrus Logic's new high-end DAC chip CS43131!

The latest high-resolution Bluetooth supports LDAC，APTX/HD,SBC and AAC!Aluminum alloy CNC processing panel technology, using anodic oxidationtechnology, fine workmanship, first-class touch;

The humanized operating system is easy to understand and equipped withfull-function remote control function;

Adopt audiophile-grade audio components to improve subjective hearing.High quality gold-plated input and output terminals;

Perfect protection circuits such as overheating and overcurrent;

Built-in high-quality high-power audio dedicated switching power supply.
