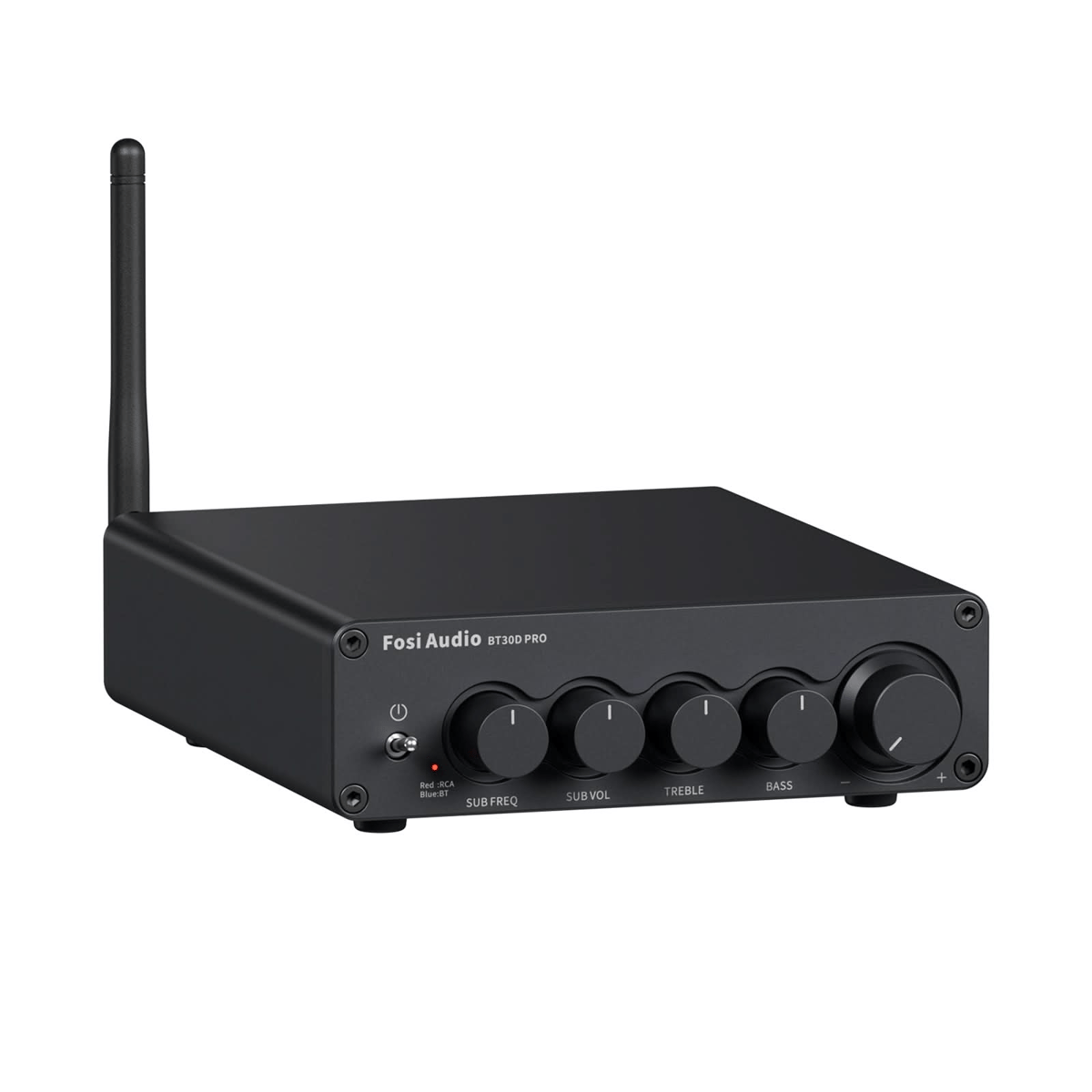

Fosi Audio Fosi Audio BT30D Pro 2.1 Channel Bluetooth Amp

• High-Performance Amplifier
• Connect Passive/Powered Speakers, Passive/Powered Subwoofers
• Supports SUB frequency, SUB Volume, Master Volume/Bass/Treble Control
• Replaceable Knobs: Orange Knob

• 2.1 Channel Amplifier:The BT30D PRO integrated amplifier features two sets of passive speaker outputs and one set of passive subwoofer outputs, making it easy to set up a 2.1 home theater or other stereo HiFi audio systems.
  High Power with Exceptional Sound Quality:Equipped with two high-end Texas Instruments TPA3255 Class-D amplifier chips, the amplifier home audio delivers clear and pure sound without distortion or clipping, stably outputting up to 165W x 2 + 350W of power.


• Bass Beast: Whether you're a gamer, movie buff, or music lover, the subwoofer amplifier provides tight, smooth, and natural - sounding bass. It features two dedicated knobs for subwoofer control: the SUB FREQ knob allows precise frequency adjustment of passive subwoofers from 0 to 300 Hz, while the SUB VOL knob lets you set the desired volume level. This gives you full control over the bass output to suit your personal preferences and listening environment.


• Bluetooth 5.0 Connectivity: It maintains a stable connection and delivers clear audio over a range of up to 15 meters. This makes it perfect for enjoying your favorite tunes or audio content in outdoor areas such as your yard, terrace, or poolside, without worrying about signal drop-outs or interruptions.


• Exquisite Craftsmanship:This mini amplifier is meticulously crafted with a solid, all - metal body that ensures durability and longevity. The well-designed case, along with the high-quality controls and connectors, exudes a sense of premium build and attention to detail. The exquisite packaging further adds to the overall appeal and value of the bass amp.

• BT30D PRO Power Amplifier x 1

• 32V/5A or48V/5A Power Adapter x 1

• User’s Manual x 1

Replacing the op amps for both left and right channels in stereo mode, regardless of RCA or XLR inputs, will notably enhance sound quality.
Mono Mode: Only replacing the op amps for the right channel.

Using XLR input mode allows for further sound quality enhancement by replacing the op amps for the XLR channel.

If a subwoofer is connected, there's the option to replace the op amps responsible for the subwoofer channel.
Note: Carefully align the notch/the number '1' on the chip's cover with the 'O1' mark on the PCB.
