BEST OF TWO WORLDS P&P ECO MKII – Linear Power Supply

The Best of Two Worlds Power & Precision ECO MKII linear power supply solutions
(BOTW P&P ECO MKII) combines power, precision and efficiency in an unique innovative manner,
the best choice for every audiophile.

With the BOTW P&P ECO linear power supply the purification of the current starts immediately there where the polluted current enters the linear power supply. The dual stage mains filter and earth line choke removes high frequency pollution before the current reaches the transformer. The transformer is a custom-made audio grade transformer with electrostatic shielding. The transformer of the MKII power supply is also magnetic shielded.

The electronic design is innovative: it gets 50% more energy out of the used electronics and consumes even up to 35% less energy than a conventional design. The BOTW P&P ECO linear power supply concept is so efficient that it consumes only a bit more energy than the standard supplied high efficient, but also highly polluting switch mode adapter. The BOTW P&P ECO costs annually only a couple of euro extra on your energy bill for a priceless sound experience.

At the end of the DC cable you find our unique split-current system. The power supply part of the BOTW P&P ECO linear power supply provides the split-current system with continuous powerful and clean power, so the electronics can do their job profoundly: 1) to buffer the power, so that the power supply becomes fast, and 2) to filter one last time the voltage and current before they enter the audio device.

This unique linear power supply with its large headroom delivers at all times sufficient clean power to the audio device to ensure a stable and continuous performance of the internal processes of the audio device in order to get the best performance.

This combination of power and precision results in “easy” music, a perfect soundstage and a natural detailed sound.

Product highlights:

• 50% more output current;




• Power saving design;




• 2 characteristics in 1 product:




  • Power for high current demanding equipment;




  • Precision for noise sensitive equipment;




• 3 selectable output voltages;




• IEC 14 power inlet for suitable High-end mains cables;




• High performance dual stage mains filter;




• Earth line choke;




• Overvoltage protection;




• Custom made high efficient audio grade transformer;




• High quality polypropylene film capacitors;




• No-noise Sbooster split current system.




Features of the MKII to improve the power flow, reduce mechanical stress and to lower the internal impedance & resistance:

• High quality PCBs:




  • Double sided 2oz. copper




  • Gold plated finish




• Better and thicker quality heatsink




• Upgraded internal wiring: High quality silver plated copper with PTFE insulation




• Transformer:




  • Electrostatic shielding




  • HF Magnetic shielding




• Upgraded low ESR bulk capacitors




• Improved reference-circuit




• Next generation split-current unit




• New DC-output cable with additional shielding and sleeve




• Custom-made DC-plugs




• Gold plated connector pins split-current unit.




Versatile:

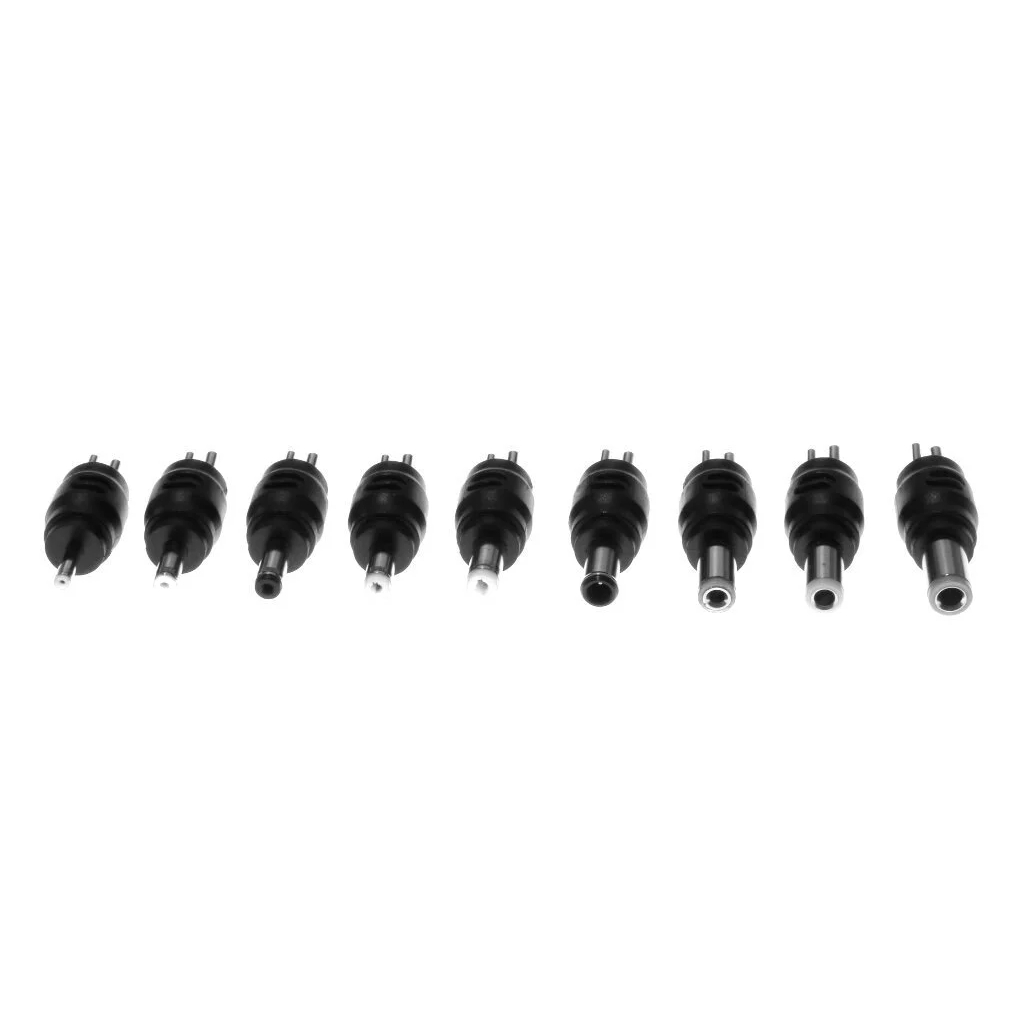

The BOTW P&P ECO linear power supply is available in 11 output voltages. By clever design we have combined these 11 output voltages into 6 models. Every model – except for the 24V model - has three output settings. Also every BOTW P&P ECO linear power supply is equipped with a self-locking interchangeable DC-tip system. This combination of the multi voltage settings and self-locking interchangeable DC-tip system makes the BOTW P&P ECO the most versatile linear power supply ever. Scroll further down for a DC-tip overview per power supply model.

Safety approvals:

The BOTW P&P ECO linear power supplies have been tested and certified by TÜV Rheinland and KTL.

Linear power supply models and output voltage & current

1. BOTW P&P ECO 5-6V MKII:




   • 5V – 3A




   • 6V – 1.75A




   • 6.5V – 1.6A




2. BOTW P&P ECO 9-10V MKII




   • 9V - 2.33A




   • 10V - 1.25A




   • 10.5V - 1.1A




3. BOTW P&P ECO 12-13V MKII




   • 12V - 3A




   • 13V - 2.25A




   • 13.5V - 2.1A




4. BOTW P&P ECO 15-16V MKII




   • 15V - 2.5A




   • 16V - 1.85A




   • 16.5V - 1.65A




5. BOTW P&P ECO 18-19V MKII




   • 18V - 2,25A




   • 18.5V - 2.0A




   • 19V - 1.85A




6. BOTW P&P ECO 24V MKII




   • 24V - 1.1A




Bulk capacitors:  Low Impedance High Ripple Current Capacitors

Regulator: High-current ultra-fast transient response LDO with external high precision shunt reference circuit

Filter capacitors: Non inductive polypropylene film capacitors

DC power cord: 95cm 16 AWG spiral shielded, additional shielding and sleeving, integrated Sbooster Split-current system and interchangeable gold plated DC-plug-connector

Mains cable: Stock supplied

Size and Weight: 240*130*75mm / 1.85Kg

Warranty: 24 Months
