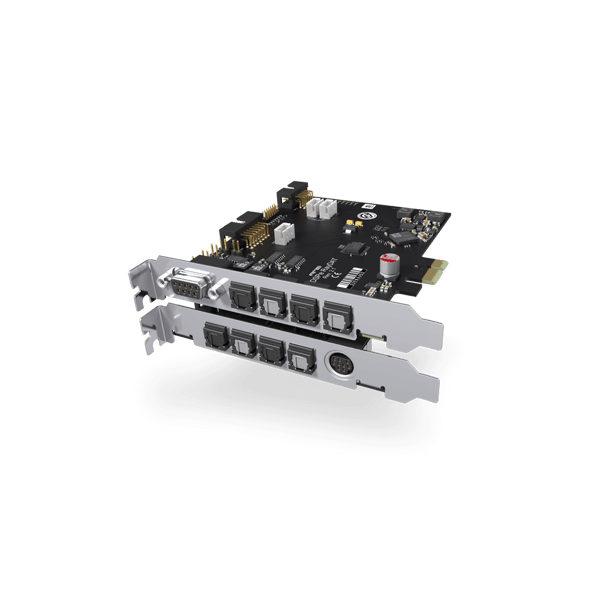

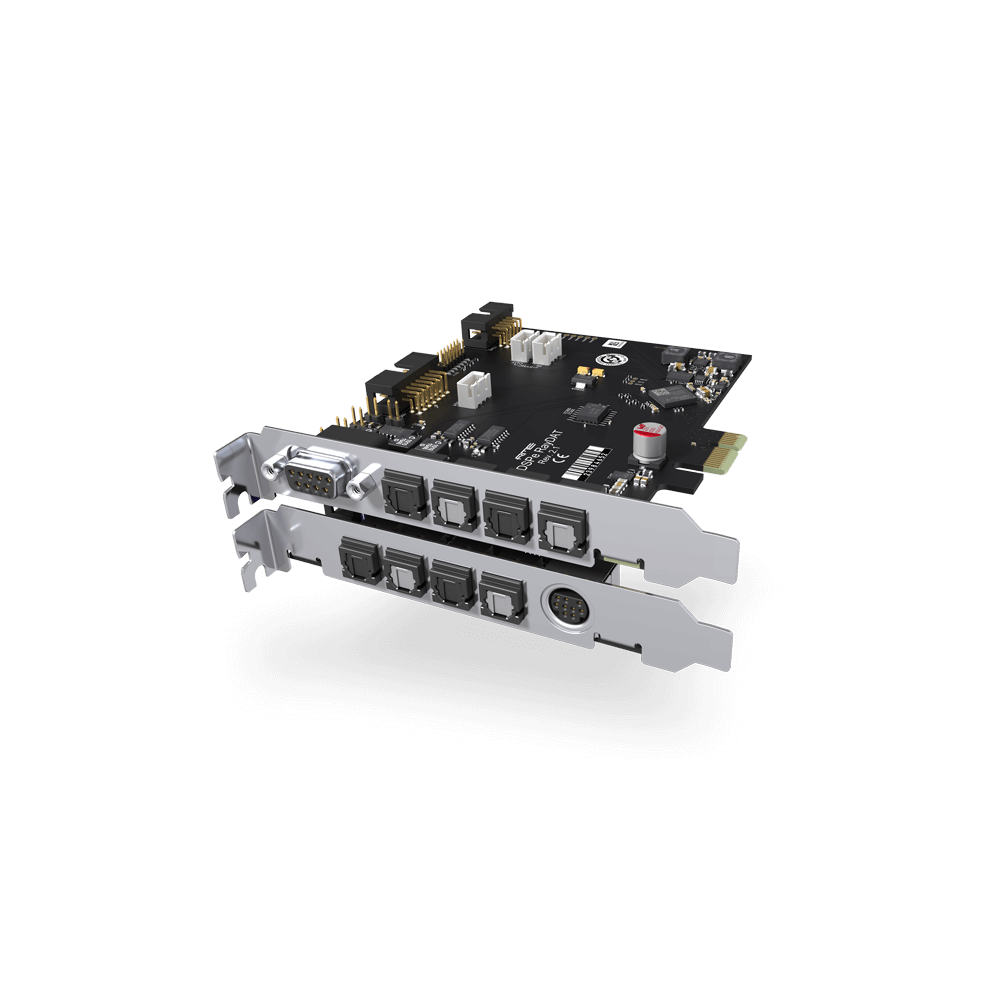

RME Americas HDSPe RayDat

For the first time, even SPDIF (phono) and AES/EBU (XLR) are simultaneously operational due to separated hardware and record/playback devices. RayDAT offers no less than 4 x ADAT optical I/O, SPDIF I/O and AES/EBU I/O. That's a whopping 36 channels of inputs and outputs. On top, there are 2 MIDI I/Os and TotalMix, RME's unsurpassed DSP-based real-time mixer/router, with hardware-calculated level metering and complete MIDI remote capability. HDSPe RayDAT also supports the optional TCO for synchronization to timecode (LTC/video).

Internal ADAT inputs and outputs allow to add up to two TDIF ports directly inside the computer via RME's optional expansion boards.

HDSPe RayDAT is the newly developed PCI Express version of the HDSP 9652. A genuine PCI Express core consequently takes full advantage of the new format, achieving significant performance gains in multitrack audio. Thanks to RME's secure flash update technology, firmware improvements, adjustments, and bugfixes can be installed easily at any time.

The HDSPe RayDAT provides unique features:

• 4 x ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
• 1 x SPDIF digital I/O, 192 kHz-capable
• 1 x AES/EBU digital I/O, 192 kHz-capable
• 2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable
• Up to 36 inputs and 36 outputs can be used simultaneously!
• DIGICheck, RME's unique metering- and analysing tool
• TotalMix: 2592 channel mixer with 42 bit internal resolution
• Native PCI Express - no PCI to PCI Express bridge used
• S/MUX poured in hardware: 16 channels 24-bit/96kHz for record and playback on ADAT optical
• HDSPe RayDAT includes SteadyClockTM, RME's own clock technology, combining professional features like maximum
• jitter suppression at full varipitch capabilities and software controlled sample rates.
