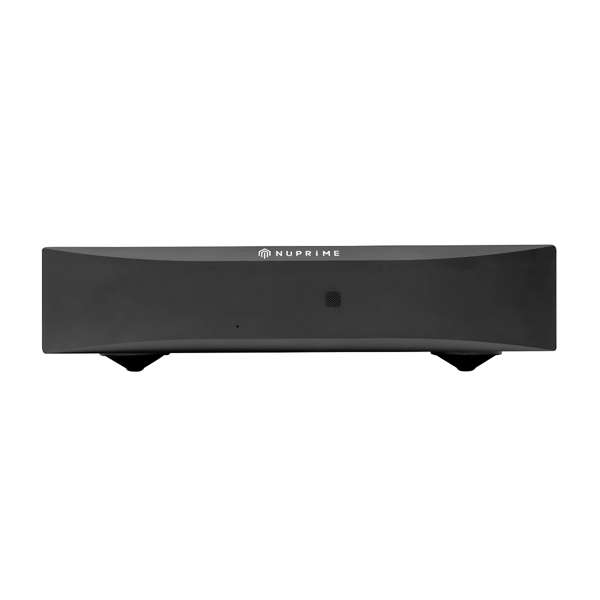

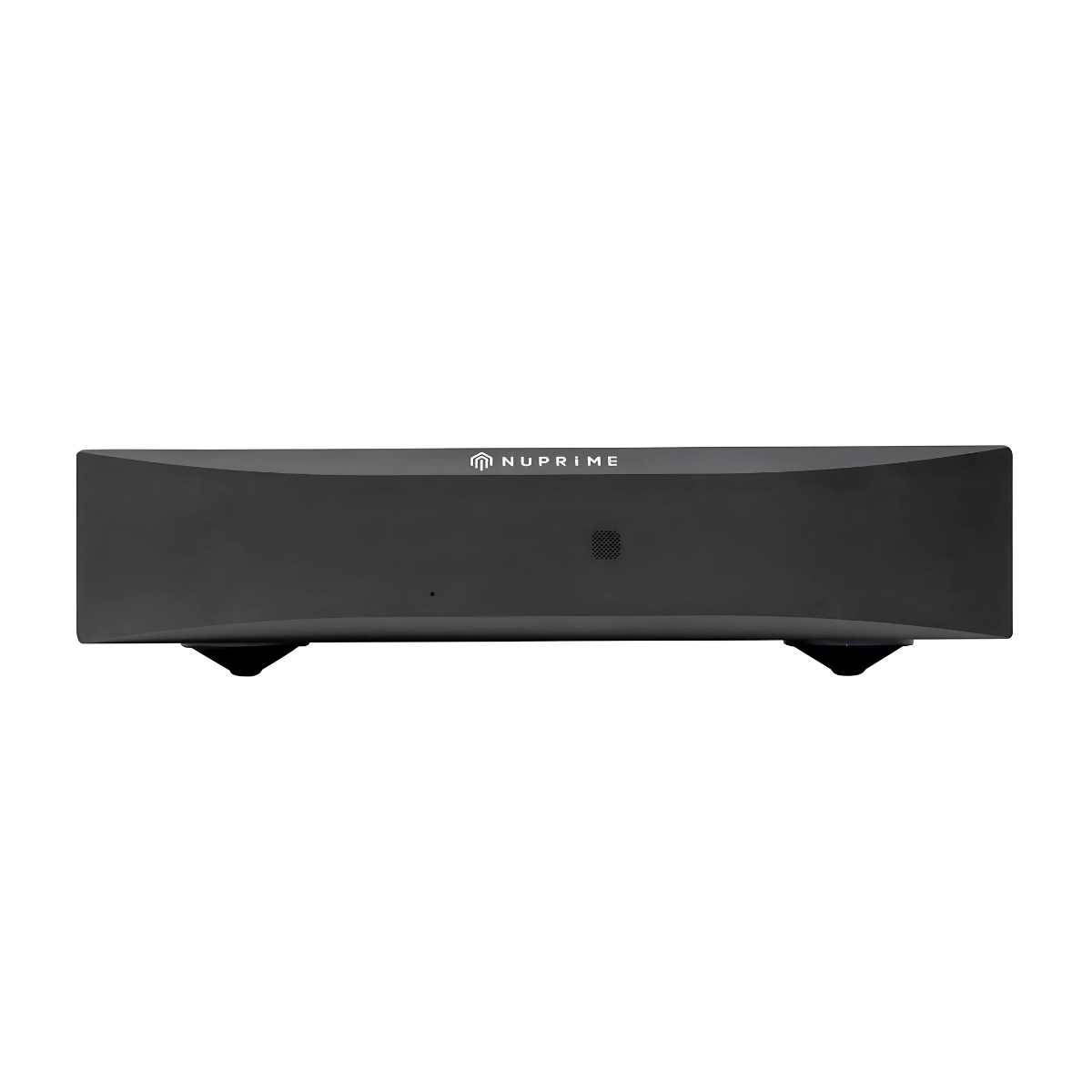

The Nuprime-X H16-AES is a high-performance HDMI audio decoder featuring AES3 (AES/EBU) digital audio output for integration with professional audio systems. It supports immersive audio formats such as Dolby Atmos® and DTS:X®, along with full eARC HDMI and 4K HDR video pass-through. The unit also includes automatic room calibration for optimized playback in diverse acoustic environments.

Note:The H16-AES can be traded-in to HX16 models with higher specifications and features by paying the price difference when available.

The Nuprime-X H16-AES is a high-performance Digital AV Home Theater Processor featuring AES3 (AES/EBU) digital audio output for integration with professional audio systems.

HDMI Decoding

As part of the Nuprime Fusion-X platform, the H16-AES connects seamlessly with other Nuprime AES-compatible products, creating a cohesive, scalable audio system.

I2S to AES Interface Board

Key Features:

Audio

• Converts HDMI audio to AES3 (AES/EBU).
• Supports Dolby Atmos® (up to 7.1.4) and Dolby True HD® and all downward Dolby® audio formats.
• Supports DTS:X®, DTS-HD Master Audio®, and all compatible HD audio formats.
• Supports MPEG-H with playback MPEG-H Authoring Suite (MAS) or VLC player on macOS or Windows PC with HDMI output.
• Supports HDMI eARC.
• Integrated automatic room acoustic calibration with built-in testing and compensation for room EQ, channel loudness, and speaker distances. Features one-touch operation for full auto correction while also allowing manual adjustments.
• Ensures low-latency and high-fidelity audio transmission.

Video

• HDMI 2.0 with 4 inputs and 1 output, supporting HDCP 2.2.
• Supports 3D and 4K HD video transmission.
• HDR formats: Supports Dolby Vision®, HDR10, and HLG for enhanced color and contrast.
• HDMI CEC support for seamless device control.
• HDMI video output mode management for optimized display performance.

Device Control

• iOS and Android App
• Handheld Remote

The H16 app is available on both iOS and Android as the “NuPrime-X AV” app.
