Nuprime X AoAES-F22D

The NuPrime X AoAES-F22D is a professional four-channel network audio interface designed for studios, custom installations, and high-fidelity home cinemas. It serves as a high-performance bridge between digital equipment and Dante®/AES67 IP audio networks. Supporting up to 96kHz audio, it features Power over Ethernet (PoE) for power and multi-channel audio over a single CAT6 cable. The AoAES-F22D converts two sets of balanced AES3 digital signals to and from the Dante®/AES67 network.

Key Features

• Audiophile-Grade Connectivity: Gold-plated Neutrik XLR and RJ45 connectors ensure optimal signal integrity and long-term reliability.

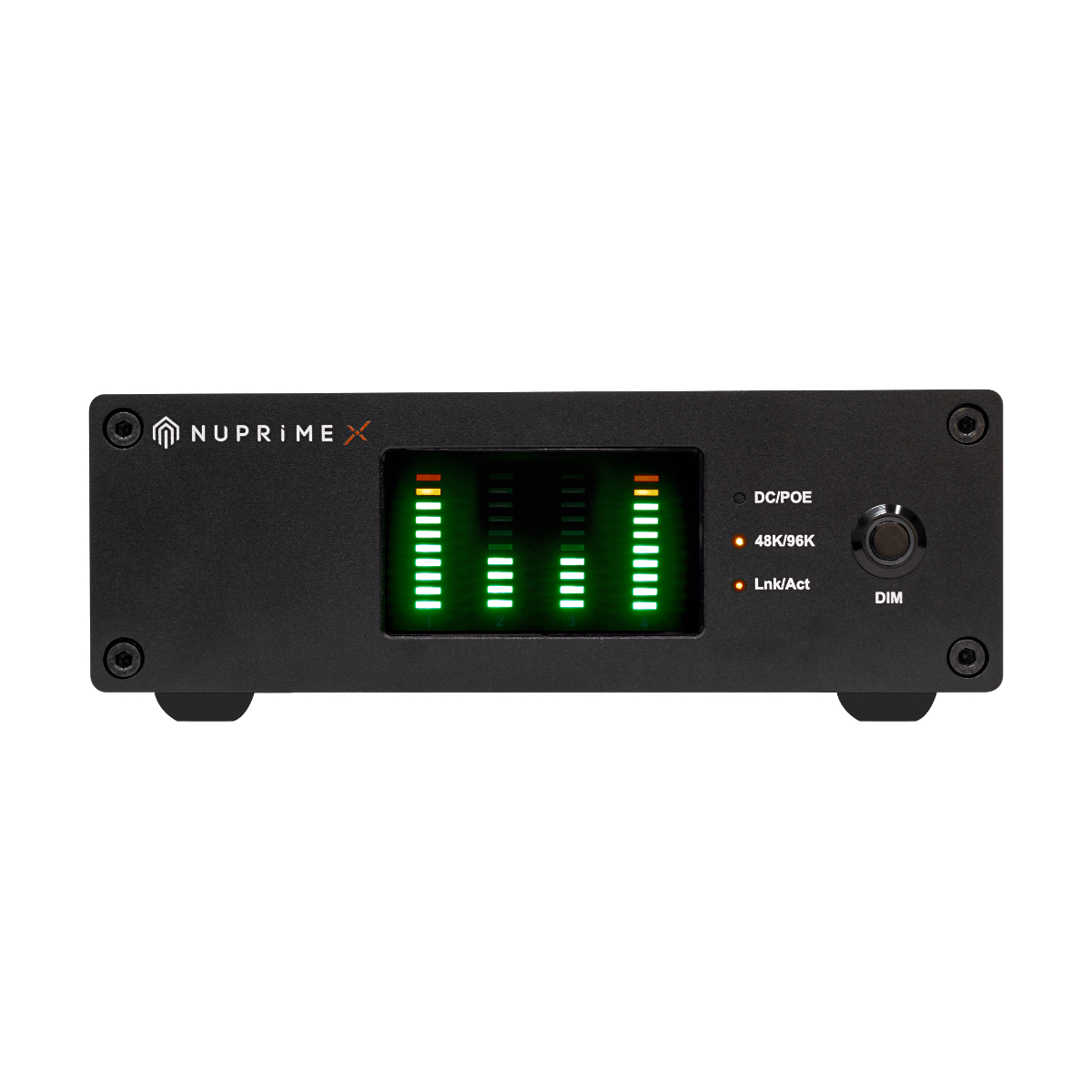

• Intuitive Status Monitoring: Front-panel diagnostics provide real-time insights, including:
  • 4-Channel Level Meters: Precise audio level monitoring
  • Network Status: LEDs for link and data activity
  • Sample Rate Indicators: Quick confirmation of clock rate
  • Power Diagnostics: Continuous input power monitoring
  • Stealth Mode (DIM): Dims or disables front-panel lighting for dark-room environments.
• Mission-Critical Redundancy: Dual power via PoE and 12V DC with seamless auto-failover for uninterrupted operation.
• Superior Thermal Management: Anodized, precision-milled aluminum chassis ensures efficient heat dissipation and EMI shielding.

Specifications:

• Chassis Material: Anodized Aviation Aluminum
• Dimensions: 168 x 95 x 55 mm (W x D x H)
• Weight: 688g

Accessories:

• High-grip adhesive rubber feet for vibration isolation and surface protection.
• User Manual
• Power Adapter: 12V / 2A
• Power Cord: US / EU / UK
