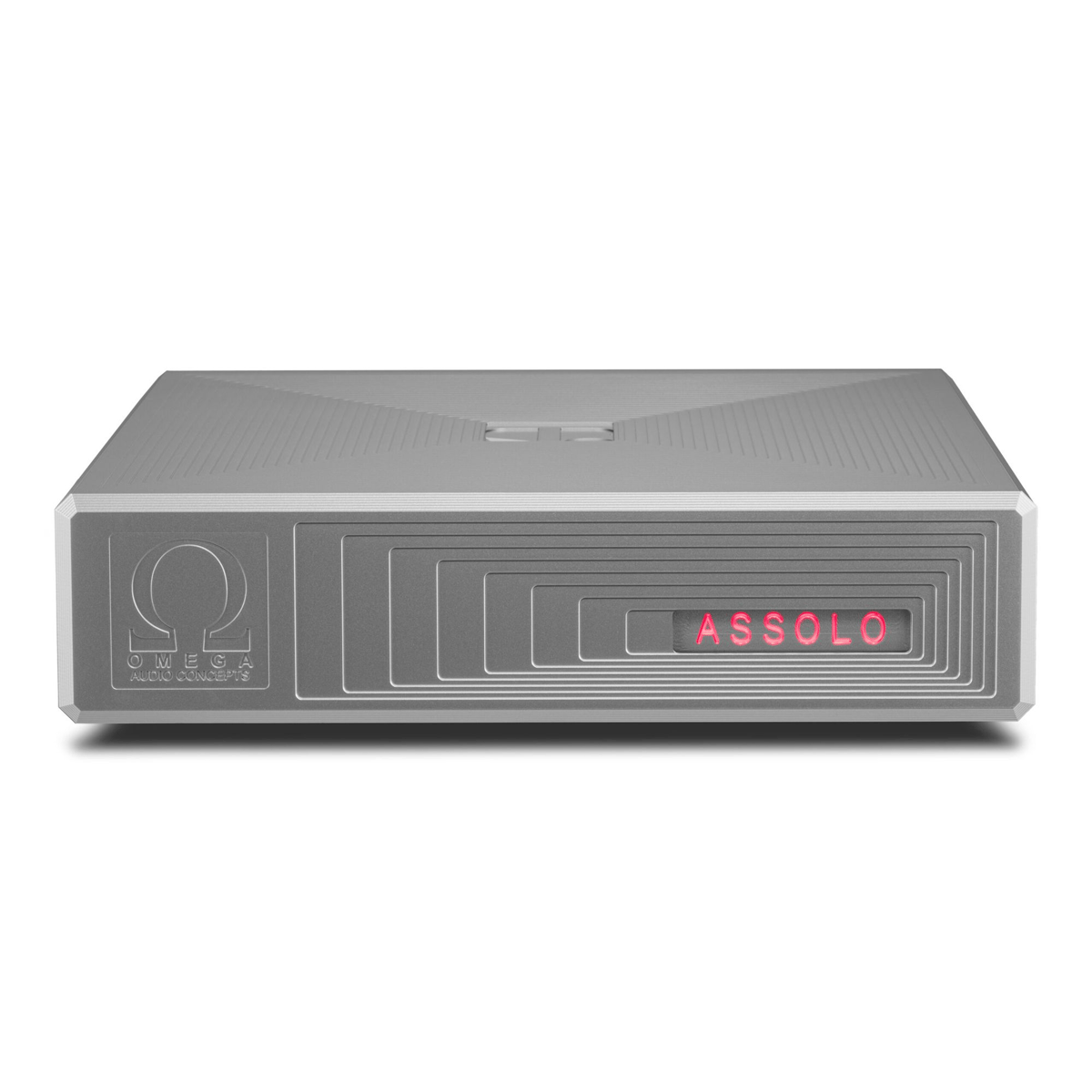

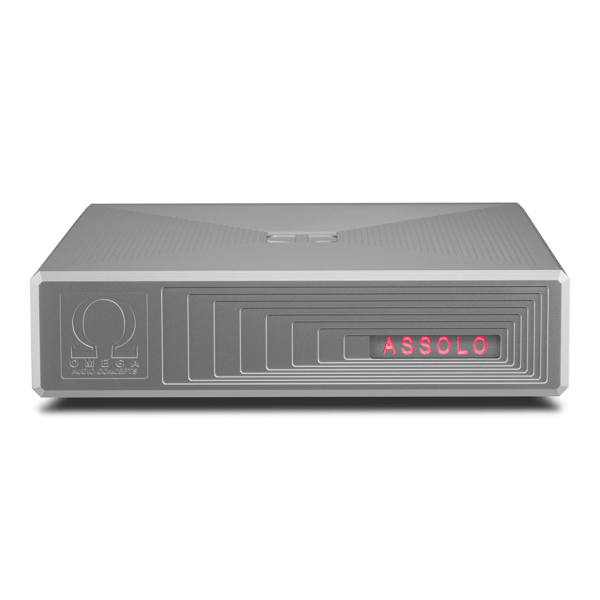

Omega Audio Concepts ASSOLO

Like a solo performance, this product stands on its own.
For the first time, we have created a single-chassis amplifier. Designed to meet the needs of environments where space is limited, With minimal compromise.
Integrating power supply and signal processing into one enclosure was a deliberate challenge. The entire structure is machined from solid aluminum using precision CNC technology, ensuring rigidity and control.
Inside, the architecture is carefully organized. The main board is physically separated from the power supply, reducing interference and minimizing internal signal paths. All internal conductors of the loudspeakers are reduced to an essential length of just six centimeters.
All power supplies are independent, starting from the individual transformers. These are positioned at the front of the chassis, as far as possible from the signal path, and operate within dedicated compartments, where they are fully isolated both mechanically and electromagnetically.
Every element is placed with intention. Every distance is measured.
Available in gray, black, and titanium finishes.
Custom paint options are available upon request.

• Toroidal transformer for power section, preamp and volume control, independent for left and right channel.
• Separate toroidal transformer for the left and right channel of the power supply section of the final stages.
• IEC connector with fuse.
• Maximum absorption 300 W.
• Aluminum cabinet carved from solid with CNC machines.
• Analog signal ground separated from power circuit ground.
• SMD components with 0.1 tolerance for resistors and capacitors in the preamp and amplification phase.
• No series capacitors in the signal path. Be careful not to connect the audio source with continuous output voltage higher or lower than 10 mV.
• Digital volume control with single resistor in the signal path at 0.5 dB steps.
• 3 RCA or 2 RCA and one XLR.
• Input impedance 10 Kohm.
• Power: 100W into 8 ohms and 160W into 4 ohms.
• Soft start ignition circuit.
• Signal noise: 100dB.
• Volume control and input selector system with remote control supplied with a dedicated Bluetooth low energy Android app.
• Dimensions: 410 x 410 x 100 mm (L x W x H).
• Weight: 30 Kg
