MartinLogan Motion XTW6

The XTW6 takes one of the most popular styles of in-wall speaker to a new level of performance. Featuring the FMT XT and a 6.5” Kevlar woofer (with Nomex backer) the XTW6 offers incredible accuracy, clarity and more controlled dispersion. With an 80° x 30° tweeter dispersion pattern, the XTW6 focuses and directs sound into the sweet spot of the room without letting it bleed into other areas of the room. This can be highly effective, especially in rooms with open floor plans or large windows, etc. allowing listeners to experience an otherwise unheard-of level of sound quality that won’t affect your room’s aesthetic.

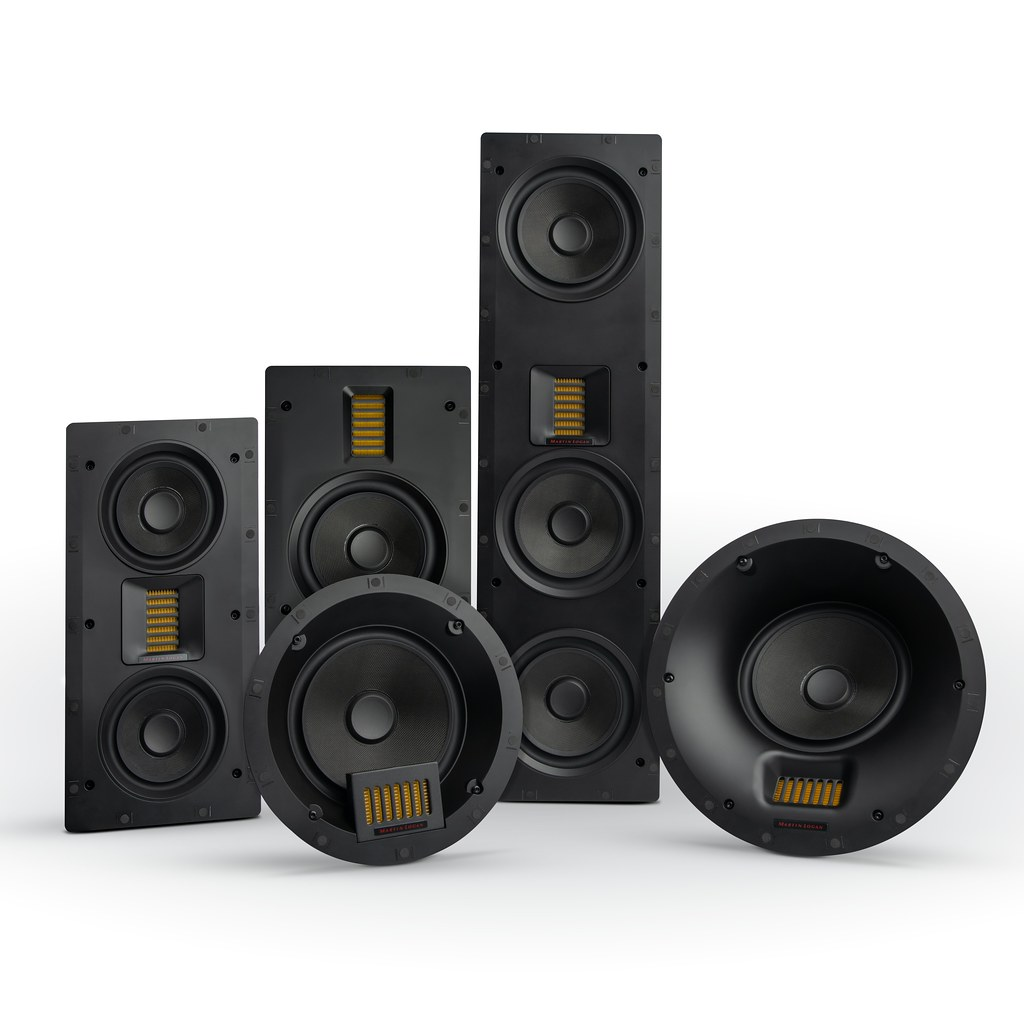

The MartinLogan Motion XT CI series takes performance to the next level over Motion CI. The Folded Motion XT tweeter gives each model in the Motion XT series even more of the clarity, output and efficiency that the standard size FMT is famous for. With Motion XT, we wanted to increase all aspects of performance over the Motion series, so we didn’t just stop at the tweeter. All Motion XT models feature woven Kevlar woofers for increased rigidity and lightness as well as a special Nomex layer on the back side of the woofer material which increases clarity and realism by reducing resonance and ringing. In addition to the larger tweeter, and lighter, stronger woofers, MartinLogan’s design and engineering team has fitted the Motion XT series with a more substantial chassis to strengthen the speaker and provide a more accurate sound, similar to a better cabinet on a traditional speaker. The Nomex layer and the chassis are not something you can see after installation, but it matters to the performance of the speaker, so it matters to us. With Motion XT CI, the difference is in the details.

The Sound of Invisibility: Folded Motion® Tweeters

MartinLogan's signature Folded Motion Tweeter utilizes an extremely low-mass diaphragm that "squeezes" air, thus requiring significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It's a miracle of audio engineering that delivers much of the high-frequency detail, speed and response of a large, dynamic electrostatic panel in a small space. Folded Motion XT tweeters advance thin-film transducer technology even further with a 40% larger radiating surface and 80x30-degree controlled dispersion. This upgrade increases audible bandwidth without sacrificing detail and reduces distortion to an incredibly low level while increasing efficiency and the tweeter's already lightning-fast response time. The result is superior realism and alarming specificity that is aurally astounding, and only by MartinLogan.

This thin-film transducer design packs all the accuracy and delicacy of an electrostatic panel into a small space. Folding the dramatically lightweight film into an accordion-like structure increases the surface area, giving Folded Motion tweeters eight to ten times greater surface area than typical tweeters. This ideal combination of light and large produces superior accuracy, extended frequency bandwidth and higher output capability; all with a faster, more efficient transient response, and virtually zero distortion. In these characteristics, the Folded Motion Tweeter design can mimic the performance of a large electrostatic panel in the confines of a more traditional loudspeaker enclosure.

Woven Kevlar Cones

All Motion XT CI speakers feature very lightweight woven Kevlar cones specifically engineered to keep pace with the lightning speed of our highest performance Folded Motion Tweeter XT. While these high-performance drivers offer both increased rigidity and lightness, we took an extra step by adding a special Nomex layer on the back side of the woofer material which increases clarity and realism by reducing resonance and ringing. This layer is not something you can see after installation, but it matters to the performance of the speaker, so it matters to us.

No matter which Motion XT CI speaker you choose for your room, rest assured they are designed to provide a consistently high level of performance and can easily be used with other MartinLogan speakers to make creating the perfect system for your unique listening space that much easier.

The MartinLogan Sound

MartinLogan Motion XT CI speakers sound incredible in any room. Regardless of the environment, our speakers just sound better, more articulate, more detailed, and more realistic. With Controlled Dispersion and one of the most responsive tweeters in the industry, our in-wall and in-ceiling models can compete with and often exceed the performance of traditional cabinet speakers.

Versatility - Distributed Audio, Music, and Home Theater

More and more homes today are being either built or retro-fitted with whole-house audio systems.

Whether you want quality sound in the kitchen or sunroom, a dedicated theater or media room, MartinLogan Installer, Helos, Motion CI, Motion XT CI, and Masterpiece CI deliver premium audio while disappearing into the wall or ceiling. With solutions starting at $229.99 and going up to our 40-driver flagship, the Masterpiece Statement 40XW at $22,499; there is no room that cannot be enhanced by MartinLogan sound that literally has no footprint. Easy installation into a wall or ceiling means that your audio sings without calling visual attention to itself. Great sound just happens.

MartinLogan offers five product lines of in-wall and in-ceiling speakers to fit every budget. You can choose your own level of performance and your own level of dispersion to suit your home’s particular sonic environment.

Does your room have an open floor plan?

MartinLogan Motion XT CI in-wall and in-ceiling speakers feature Controlled Dispersion to improve the clarity and overall quality of your music and media. Room acoustics are extremely important. Everything in the listening room has an impact on the sound of your speakers so we try to minimize the things that can cause harm to let you hear exactly what you are supposed to.

Our design and engineering ensure that sound is focused where you want it. We do this by creating a specific area where sound is heard most clearly, bordered by a falloff zone where volume decreases smoothly and rapidly. This can help keep the sound within the room and makes your media room a place where rich and full sound can be enjoyed without disturbing those in other parts of the home. The benefits are twofold: less distracting sound where you don’t want it, and clearer, more accurate sound where you do. Since the sound is focused onto the parts of the room that really matter, where your ears are, Controlled Dispersion helps avoid unwanted sound reflections that mask and color the true clarity of the content. With Controlled Dispersion you hear more from your music and movies by freeing the sound from some of the harmful effects that room acoustics can have.

Does your room have a vaulted ceiling?

Vaulted ceilings are popular in many homes both large and small, and they present a challenge to designers of in-ceiling speakers.

MartinLogan meets that challenge with the enhanced performance of our Folded Motion Tweeter XT (FMT XT). This remarkable device produces incredibly detailed sound that can be directed even more precisely where it’s needed, preventing sound from bleeding into other parts of the home. As compared to the standard sized FMT, the FMT XT even further focuses the sound into an 80° x 30° dispersion pattern to even further reduce the harmful acoustic effects presented by nearly every room. Motion XT CI in-ceiling speakers use the FMT XT to project sound into specific areas of the room which makes them ideal for object-oriented systems like Dolby Atmos, DTS:X and Auro3D. The film’s audio effects work in sync with the visual elements, so the sound literally comes from all directions, around and above the listener. The FMT XT helps project those effects down into the room preventing the height channels from losing clarity and output over distance or otherwise “getting lost” in the room like traditional speakers can. This same concept applies to the in-wall channels. By focusing the sound on the actual seating area and not wasting energy on spaces where no one is sitting (IE: the ceiling) we achieve greater sound quality by removing unwanted sound reflections while simultaneously reducing the potential for distracting amounts of sound to travel into unwanted areas of your home.

Spring-Loaded Binding Posts

With easy pre-installation access, our spring-loaded binding posts feature a large 4.5mm wire access hole and connect via banana plug, pin, or 12AWG bare wire.

Micro-Perforated Grilles

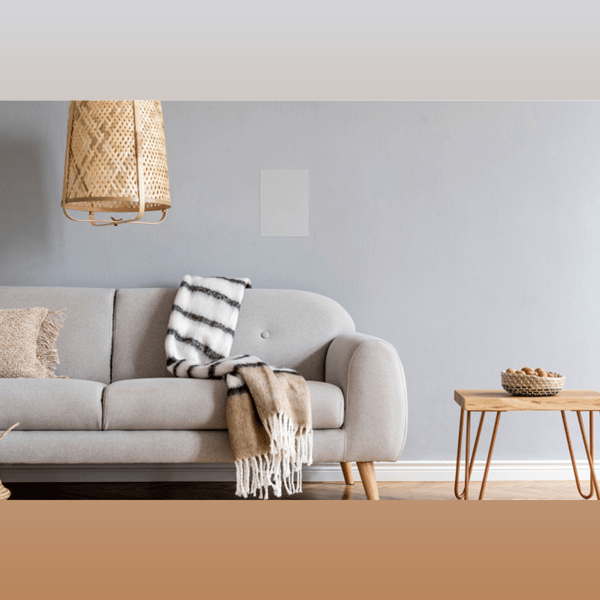

All MartinLogan architectural speakers feature an ultra-low profile, paintable, micro-perforated grilles with no visible bezel for a near-invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation.

Proprietary Vojtko™ Crossover Networks

Vojtko Crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko.

His unique approach to crossover design is just as crucial to MartinLogan's Truth in Sound as are our innovative electrostatic and Folded Motion thin-film driver technologies. A Vojtko Crossover isn't just a set of design requirements; it's a philosophy.

Vojtko Crossovers are hand-built from the highest quality components and avoid overly complex topologies. This crossover has a straightforward objective: breathtaking realism.

Hand-Selected Components

In designing each crossover topology, we take the drivers themselves into consideration. Carefully selected drivers, engineered for specific performance characteristics, are kept within their optimal frequency range by the custom Vojtko Crossover.

Each crossover is handcrafted using exceptional polypropylene and polyester capacitors, custom wound and large steel laminate low-DCR inductors, and double thick PCBs. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source. It's a recipe for vanishingly low distortion and seamless driver integration.

The most critical aspect of a Vojtko Crossover design is the final voicing, always conducted in a real-world environment. This uniquely pragmatic approach guarantees that even the most amazing MartinLogan loudspeakers deliver Truth in Sound in any room, including yours.

Pre-Installation Brackets (sold separately)

Pre-installation brackets are available for every
model in the Motion XT CI Series.
