Featuring seven drivers and a lightning-fast Folded Motion XT Obsidian tweeter, a 6.5-inch unidirectional carbon fiber multi-section cone midrange driver with a Nomex® backer, two matching 6.5-inch woofers, and three 6.5-inch passive radiators, seamlessly blended with a flagship-class Vojtko crossover network constructed from audiophile-grade components. A pre-installation bracket is available.

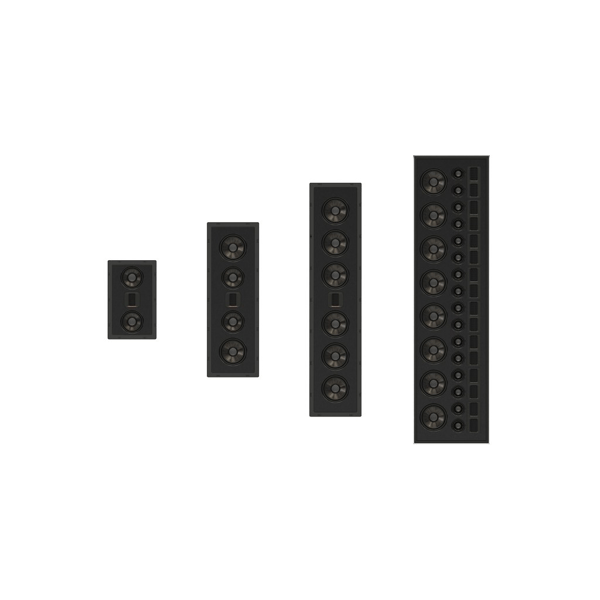

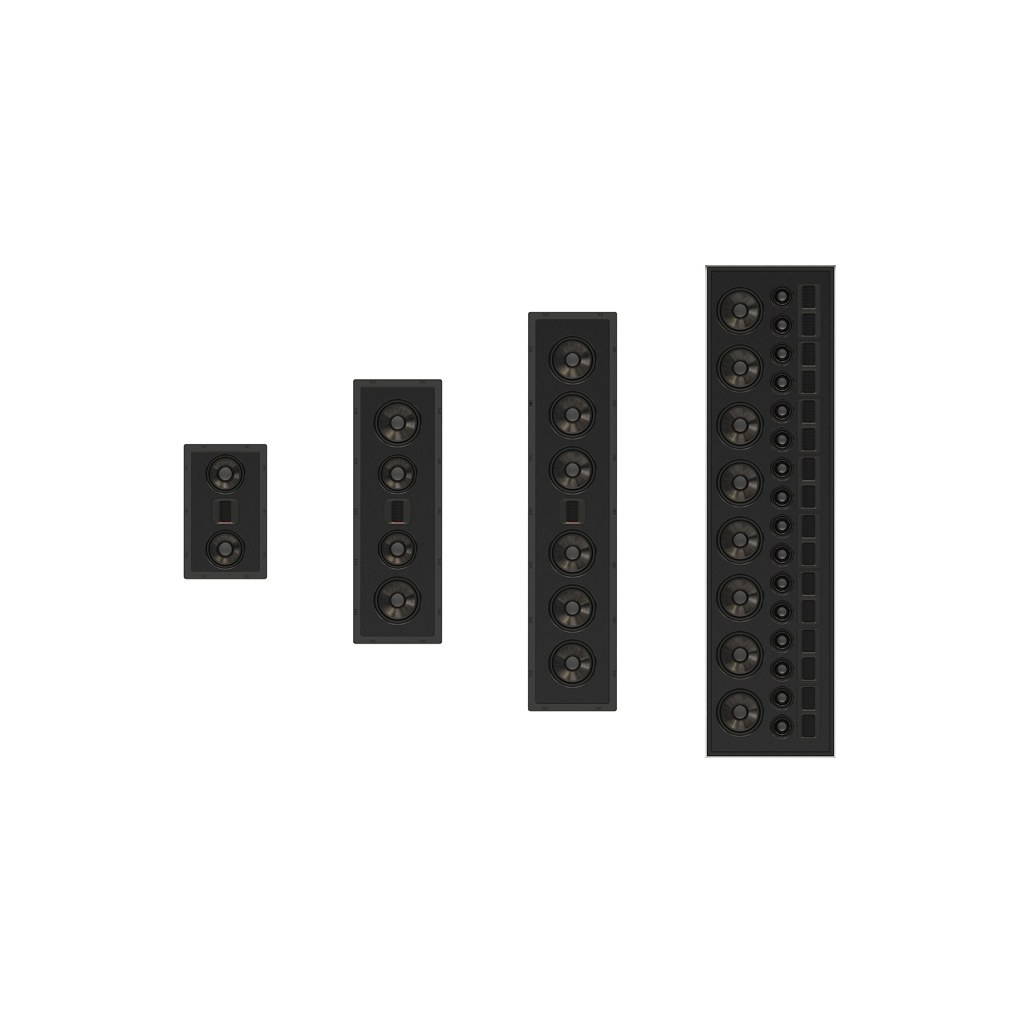

Masterpiece CI Presents Flagship Performance from In-Wall and In-Ceiling Speakers

From extreme home theater to transcendent 2-channel listening, Masterpiece CI achieves the pinnacle of discreet in-wall and in-ceiling loudspeaker design: state-of-the-art Truth in Sound that takes up no floor space. Featuring lightning-fast, low-distortion, Folded Motion XT Obsidian tweeters, handcrafted Vojtko crossover networks, and unidirectional carbon fiber multi-section cone drivers with Nomex® backers, each model of the Masterpiece CI Series delivers astonishing realism. This is a loudspeaker that is a tribute to the acoustic achievements of MartinLogan's original iconic masterpiece, our flagship floorstanding electrostatic speakers.

Driver Engineering Details

To deliver accuracy in the critical midrange, mid-frequency drivers feature a specially engineered “stiff” suspension. Stiffening the suspension (the spider and surround) raises the driver’s resonant frequency and optimizes its performance to achieve a natural roll-off and inherently operate within an ideal range for a mid-frequency reproduction (as opposed to a comparably sized woofer).

Each cone includes a concave dust cap that adds additional strength and rigidity while further reducing break up modes. An inverted surround design maximizes clearance behind the grille cover to enhance driver excursion, clarity, and linearity.

Hand-Selected Components

In designing each crossover topology, we take the drivers themselves into consideration. Carefully selected drivers, engineered for specific performance characteristics, are kept within their optimal frequency range by the custom Vojtko Crossover.

Each crossover is handcrafted using exceptional polypropylene and polyester capacitors, custom wound and large steel laminate low-DCR inductors, and double thick PCBs. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source. It's a recipe for vanishingly low distortion and seamless driver integration.

The most critical aspect of a Vojtko Crossover design is the final voicing, always conducted in a real-world environment. This uniquely pragmatic approach guarantees that even the most amazing MartinLogan loudspeakers, like the massive Statement 40XW, deliver Truth in Sound in any room, including yours.
