ATM EPM-450 Mono Purifi Eigentakt (two units)

The EPM-450 Mono consists of one 450 W at 4 Ω Class-D Purifi-Audio module model 1ET400A powered by one 1200 W switched-mode power supply.

The amplifier is assembled entirely by hand in an artisanal way in a uniquely designed anti-vibration monobloc aluminum chassis with individual compartments for the power supply and the power section, thus avoiding interference between the different circuits. It has an exclusive design and manufacturing input buffer with very low noise operational amplifiers LM4562 as standard and very low noise Sparkoslabs voltage regulators. All connectors are Furutech.

Optionally, the customer can request the inclusion of the following improvements:

• Specific design and manufacturing input buffer with Korg NuTube triode valve with very low noise voltage regulators.
• Two different colors for the box: black and silver.
• Low noise operational amplifiers (Burson Audio, Sparkoslabs SS3602 or Sonic Imagery Labs)

Ω load)

• Power output: 375 W @ 9.26% THD, 4 Ω // 100 W @ 1.2% 4 Ω
• Distortion: 0.095%, 20 – 20 KHz, 4Ω, 5W
• Frecuency response: 10 Hz – 60 kHz (+0/-3dB)
• Max. Out current: 25 A
• Signal-to-noise ratio: 130 dB
• Max. consumption: 375 W
• Idle consumption: 1.7 W

DELAY TIME: 30 DAYS

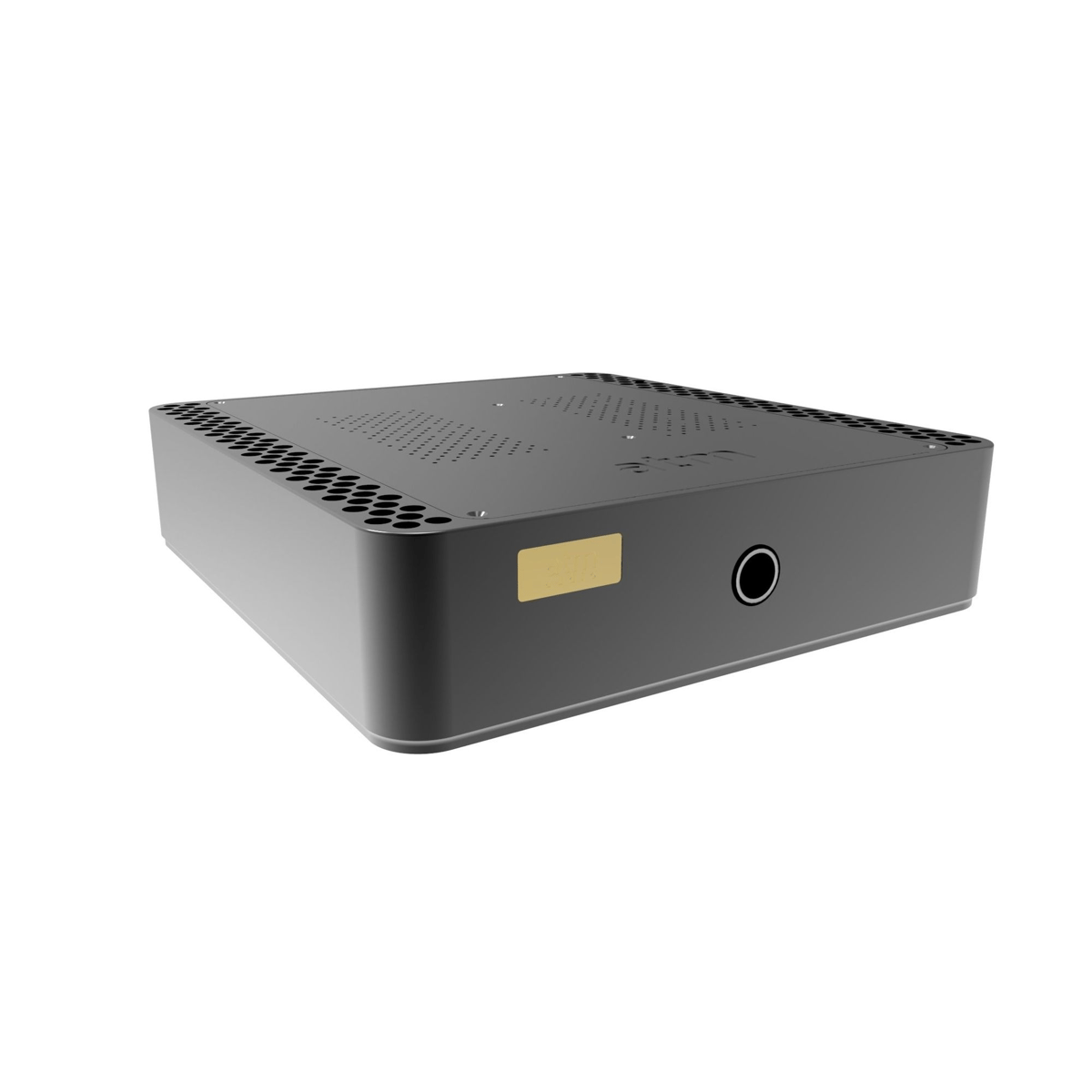

Note: the image provided could be different from the original.
