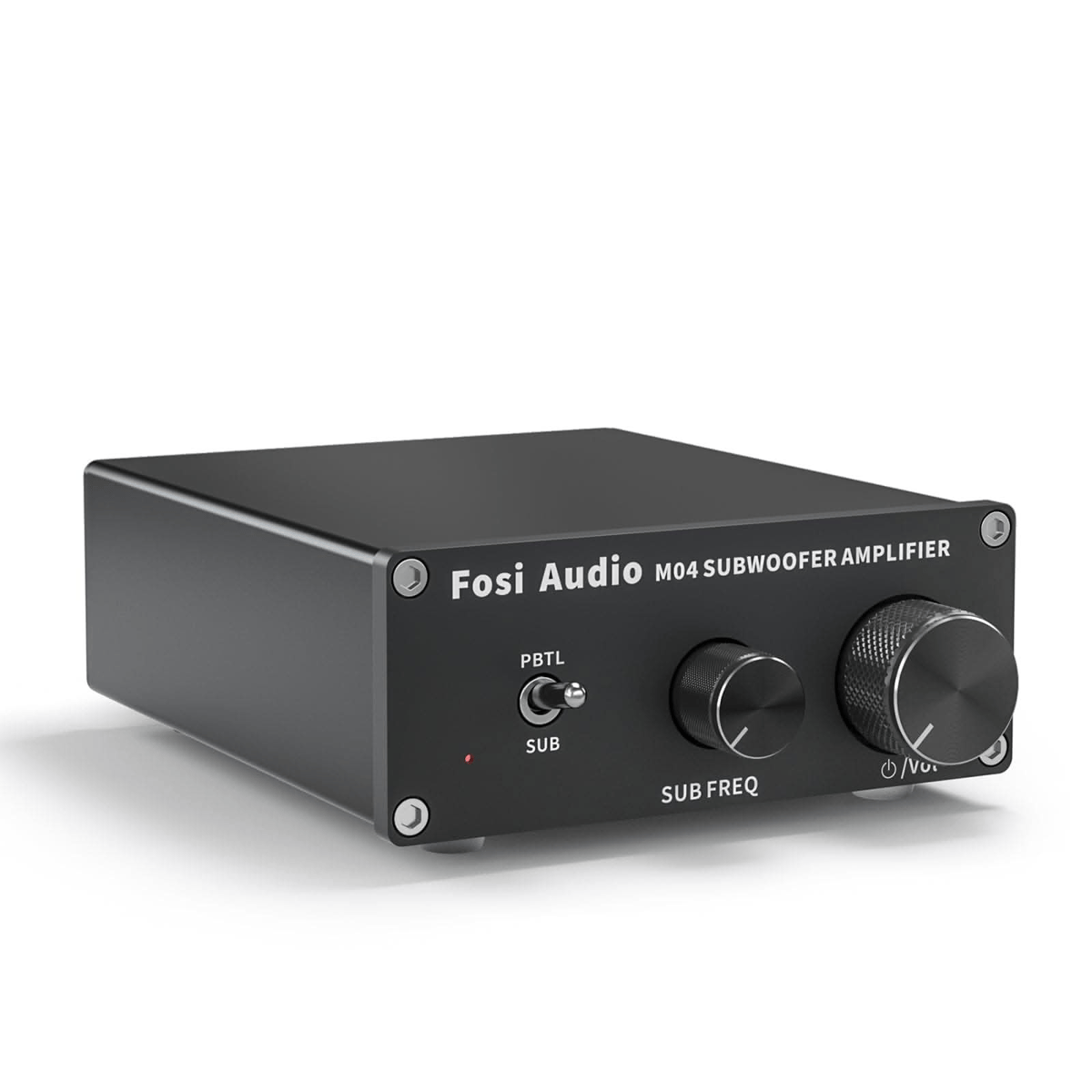

Small but mighty! Fosi Audio M04 is a 100w mono-channel class D subwoofer amplifier, with a SUB/PBTL switch you can select a subwoofer bass amplifier or full frequency mono amp, can be connected to an active/passive subwoofer and passive speaker.

The power switch was integrated into volume control, we made it small but supply an in-wall or stand-alone subwoofer the power it needed so you can experience room-shaking low-frequency impact (bass) on movies and music soundtracks.

Input Interface: RCA input

Output Interface: speaker’s output

THD: ≤ 0.02% (1KHz, 1W)

Output: passive subwoofer/speaker

Input Voltage Range: DC 12V - 24V

SNR: ≥ 102dB

Terminating Impedance: 2Ω - 8Ω

Max Power Output: 100watt @3Ω

Input Sensitivity: 600MV

Net weight: 175g

Dimensions (H * W * D): 103 x 57 x 43MM (4.06 x 2.24 x 1.69’’) includes knobs

Frequency Response Range: 20Hz-20KHz(±3db)

Bass Frequency Range: 20Hz-200Hz

Fosi Audio M04 Subwoofer/Mono Amplifier x1

Power Adaptor x1

AC cord x1

User Manual x1
