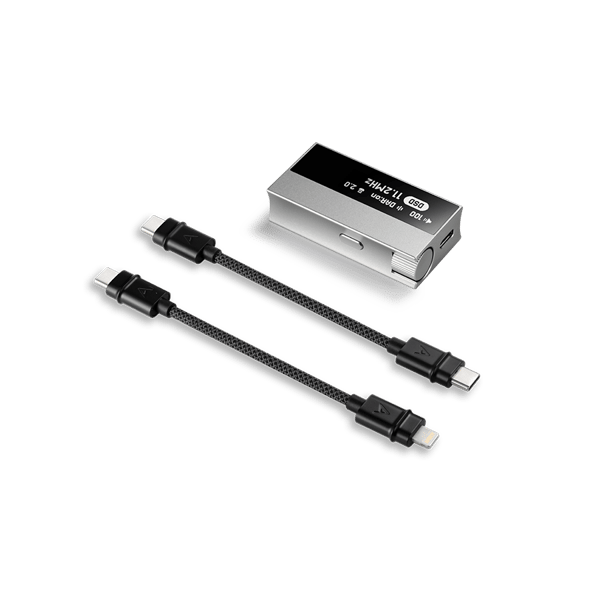

Astell & Kern AK HC5

Compact Form. Complete Perfection.

Created to achieve perfect sound, AK HC5 sets a new standard for USB DAC cables. The AK HC5 embodies Astell&Kern’s audio philosophy and precise engineering in a compact form, delivering a level of perfection beyond its predecessors. Equipped with a flagship-grade DAC and optimized power control, it delivers flawless sound performance unmatched by any other USB DAC.

• AK4191EQ + AK4499EX
• Constant High Driving, DAR (Digital Audio Remaster) Support
• 1.62" OLED Display
• 150-step Volume Control
• Dual Noise-Shielded Cable
• Roon Tested (Certification in progress)

The First USB DAC Cable with AK4499EX

For the first time in a USB DAC cable, the AK4499EX DAC— previously only used in flagship DAPs—delivers top-tier sound performance.
The combination of the AK4191EQ digital processor and AK4499EX DAC perfectly separates and processes digital and analog signals, minimizing noise interference and reproducing even the finest details with precision. Experience premium, digital-audio-player–level sound quality through a USB DAC cable.

Compact Body, Ultimate Performance

The High Driving Mode technology perfected in the SP4000 now powers the AK HC5, achieving exceptional sound performance in a remarkably compact form. A horizontal OPAMP layout delivers driving power on a completely different level from typical portable USB DACs. Rich density, deep spaciousness, and powerful energy — experience flagship-grade sound from a compact size.

[ OPAMP : Series Configuration ]

[ OPAMP : Parallel Configuration ]

Noise Suppression Design for Pure, Clean Sound

Due to the nature of USB DAC cables that receive power from external devices, minimizing sound degradation caused by incoming noise is essential.
The AK HC5 features a dedicated amplifier with excellent PSRR (Power Supply Rejection Ratio) / CMRR (Common Mode Rejection Ratio) noise-suppression performance, delivering pure and clean sound no matter what device it is connected to.

Dual Noise Shielded Cable

To minimize noise and deliver clean, lifelike original sound even over wired connections, a Dual Noise-Shielded Cable design was adopted. The internal conductors are made of tin-plated copper wire to prevent corrosion and oxidation, while their high tensile strength enhances durability. Each conductor is individually insulated with TPE to minimize signal interference, and an aluminum film shield provides the first layer of protection against external electromagnetic noise. An additional tinned copper braided shield further suppresses any remaining noise, ensuring exceptional signal purity. The outer fabric jacket not only enhances durability and flexibility but also adds a refined, premium appearance.

Precision You Can See and Feel

The 150-step volume wheel, using the same encoder system found in Astell&Kern players, allows for precise and fine-tuned volume adjustment. A 1.62-inch OLED display provides a quick overview of current settings and playback information, transforming every touch and adjustment into a seamless and intuitive experience.

Wide Compatibility, UAC 2.0 & 1.0 Dual Support

Supporting both UAC 2.0 and 1.0, the AK HC5 ensures perfect compatibility with a wide range of devices.
With UAC 1.0 mode, it can be directly connected to gaming consoles such as PlayStation and Nintendo Switch, delivering dynamic, immersive sound for gaming. From music listening to gaming, the AK HC5 provides high-resolution sound in any situation.

Beyond Protection

More than just protection, the case enhances the design and presence of the AK HC5 even when covered. Made with a premium polyurethane material from Synt3, an Italian specialist manufacturer, the case provides perfect protection while delivering a soft, refined texture that feels both luxurious and comfortable to the touch.

Notes for Product Use

Compatibility
Compatible with most Android and iOS smartphones/tablets, as well as Windows 10/11 and macOS. Compatibility may vary depending on the connected device’s hardware, software, and system limitations.

Driver Installation (Windows)
When connected to a Windows PC, the driver will install automatically. For high-resolution audio playback, please install the dedicated USB DAC driver available under Support -> Download on our website.

Earphone/Headphone Standards
Supports CTIA-standard 4-pole earphones/headphones. OMTP standard is not supported.

High-Resolution Playback (Smartphones)
For DSD and high-resolution PCM playback on smartphones, a separate playback app (free or paid) must be installed. Using the default player will cause downsampling, so use a dedicated playback app for full-quality sound.

Hearing Protection Notice
Before connecting earphones or headphones, always check the volume level. Depending on the connected device, the output may automatically default to maximum volume upon initial connection—please verify volume before use. When connecting to an Astell&Kern player, the output volume will be fixed at maximum and cannot be adjusted from the player. Listening at maximum volume may cause serious hearing damage. Astell&Kern is not responsible for any injury or damage resulting from improper or careless use.

Firmware Updates
Firmware updates may be released to improve system stability. For details, please refer to Support -> Download on our website.

DESIGN

‘Solid Flow - The Harmony of Solidity and Flexibility’
The design concept of the AK HC5 is “Solid Flow.” “Solid” represents Astell&Kern’s unwavering commitment to powerful, high-fidelity sound performance, while “Flow” embodies the elegant curves and smooth usability that enhance everyday convenience.
By merging these two contrasting ideals, the AK HC5 expresses Astell&Kern’s harmony of strength and fluidity, a design that feels both dynamic and refined when held in the hand.
