• RJ45 wired network and WiFi, Airplay, Spotify Connect, Bluetooth 5.0, DLNA, UPnP wireless connectivity support.
• Easy switch between mono and stereo mode.
• Maximum 100W powerful output of mono mode and 50W x 2 powerful output of stereo mode.
• Decoding up to 192khz/24bits, support FLAC / MP3 / AAC / AAC+ / ALAC / APE / WAV lossless audio format.
• Support Spotify, Apple Music, Amazon Music, Tidal, Deezer, Qobuz, TuneIn, Internet Radio and more.
• Sync audio or play different songs at the same time with multiroom streaming.
• Convenient, full wireless control by FREE iOS & Android 4STREAM app.

Up2stream AMP Mono

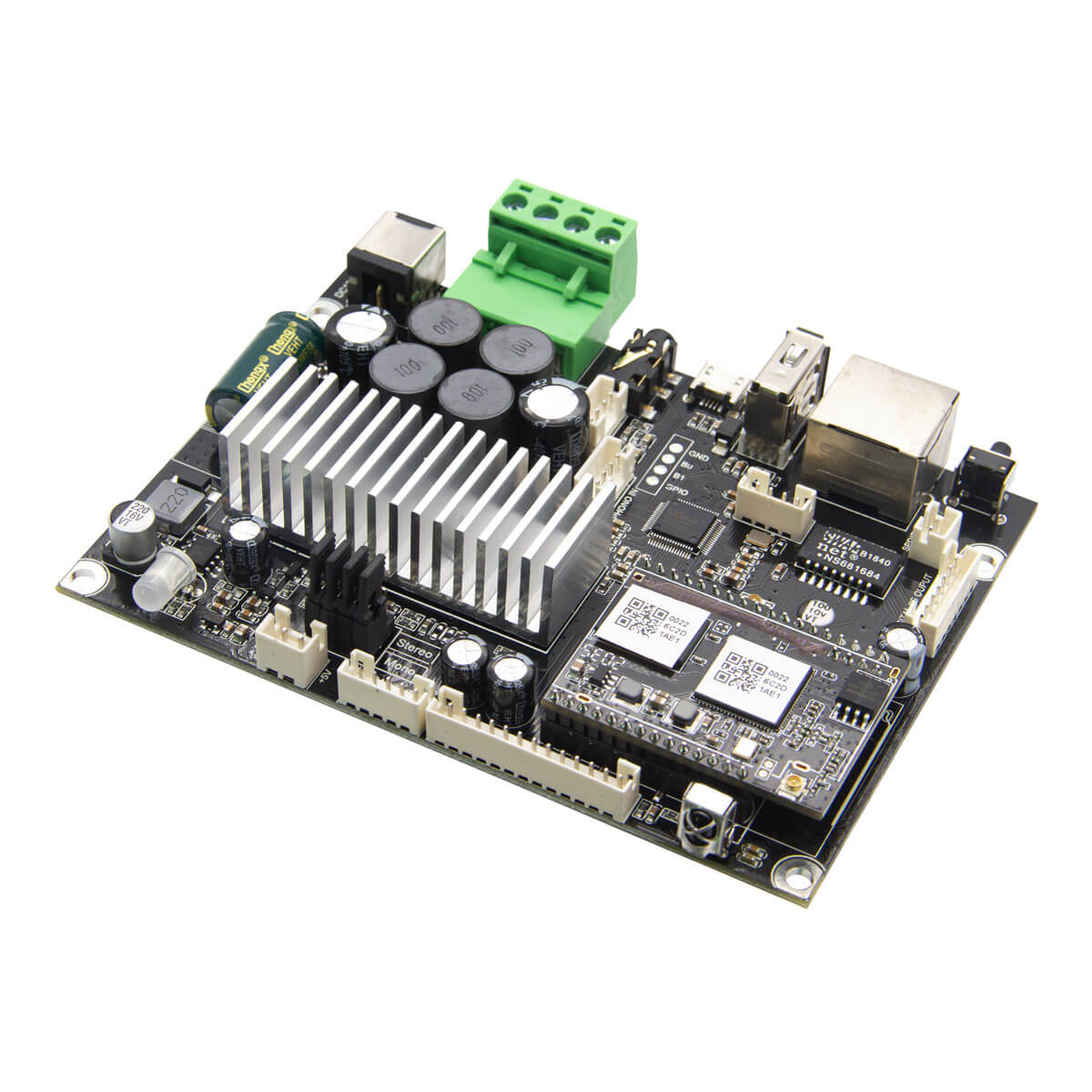

Up2Stream AMP Mono is an amplifier board equipped with both WiFi, Airplay, Spotify Connect and Bluetooth 5.0, designed to enable your existing audio system with wireless capabilities. It offers a comprehensive solution for DIY enthusiasts who want to create a personalized wireless audio system.

The Up2Stream AMP Mono has the ability to switch between stereo and mono mode. In stereo mode, it delivers up to 50W of power for both left and right channels, while in mono mode, it can provide a maximum of 100W for a single channel by mixing the left and right channels.

Once connected to your home network, the 4STREAM APP can be used to play music from a variety of sources, including your mobile device, NAS, USB pen drive, and popular online streaming services such as Spotify, Deezer, Tidal, and Qobuz. Multiple devices can be connected to create a wireless multiroom audio system that can play the same music in sync across all rooms or different music in different rooms.

Features

Wireless Connectivity

Up2stream AMP Mono supports WiFi and Bluetooth 5.0, allowing for easy streaming of music from various sources such as smart phones, tablet, laptop, and computer within your local network. Additionally, the device supports popular protocols such as Airplay, Spotify connect, DLNA, and UPnP, providing seamless wireless music streaming capabilities.

Wired Network

Up2Stream AMP Mono features an RJ45 Ethernet port for a more stable network connection. This allows you to directly stream music from your smart devices without having to go through the WiFi setup process using the app. This feature makes it super easy to get started and enjoy your music quickly and effortlessly.

Mono/Stereo Mode

The Up2stream AMP Mono is a versatile mono Wifi and Bluetooth amp board that can function as both a stereo and mono amplifier. You can easily toggle between these modes using the jumper located on the board. This means you have the flexibility to use the board in either stereo or mono configurations depending on your needs.

Powerful Home Amplifier Board

Under stereo mode, the Up2stream AMP Mono is capable of delivering a maximum power output of 50W x 2 at 4ohm and 24V. However, when switched to mono mode, it can deliver up to 100W of maximum power output at 4ohm and 24V. This means that the board can provide a higher power output when used in mono mode compared to stereo mode.

Plug and Play

With the ready-to-use interfaces, streaming music is as simple as plugging in the power and connecting to a passive speaker. Unlike other audio boards, there's no need for soldering of pins before you can get started. This makes it incredibly easy and user-friendly for anyone to use.

Lossless Audio

The Up2stream AMP Mono is designed to support a broad range of lossless audio formats, including FLAC, MP3, AAC, AAC+, ALAC, APE, and WAV. Furthermore, the board can decoding up to 192kHz/24bits, and providing high-quality audio output with a resolution of 44.1kHz/16bits CD quality. The Up2stream AMP Mono also delivers impressive sound with the TPA3116D2 amplifier chip used in its design. This chip provides powerful amplification to bring out the best in your audio.

Music Services Support

Spotify, Apple Music, Amazon Music, Tidal, Deezer, Qobuz, TuneIn, Internet Radio, Napster, iHeart Radio, Radio Paradise, and more with future update.

Versatile Music Sources

The Up2stream AMP Mono offers versatile streaming options, allowing you to easily stream music from various sources such as music services, NAS, USB, phone storage, SD card, and other 3rd-party apps that support Airplay, DLNA, and UPnP protocols. This provides you with a wide range of choices when it comes to selecting your preferred music source. Additionally, the device comes with Bluetooth 5.0, enabling you to stream audio from your smart devices seamlessly. This means you can enjoy your favorite music on the go, without the need for any additional cables or devices. With its multiple streaming options, the Up2stream AMP Mono makes it easy to enjoy high-quality sound from a variety of sources.

Multiple Interfaces

The Up2stream AMP Mono comes with a range of ready-to-use interfaces, including a 3.5mm line in, micro USB audio input, speker output and a plug for SPDIF in, Line in, Line out,Mono out, LED indicator, IR extention, and ADC-key. Which enables you to create a flexible system according to your specific needs. With these features, you can easily connect your audio devices and enjoy high-quality sound without any complicated setup.

Multiroom/ Multizone

If you have multiple Arylic streaming devices installed in different rooms, you can easily group them together into different groups and stream music to a master device, which will sync the same music to all other devices in that group. Alternatively, you can also choose to play different songs at the same time throughout your house, providing a personalized listening experience for each room. With this feature, you can easily control and customize your music streaming experience based on your preferences and needs.

4STREAM APP

The 4STREAM APP is a powerful and convenient tool and free iOS& Android app that allows you to fully control your Arylic devices wirelessly. With this app, you can do music services playback, NAS/local files playback, preset content, mode swtich, Multiroom/Multizone control, EQ control, alarm clock, WiFi connection. With its user-friendly interface and comprehensive control features, the 4STREAM APP makes it easy to enjoy your music, your way.

Web Control

The Arylic streaming devices come with a unique feature that allows you to quickly access them by inputting the device's IP address into your browser. This means you don't need to install any app or software to access the device's settings. Using this feature, you can easily set your preset content, EQ controls, playback options, and even update the device's firmware. With this feature, you can quickly access and control your Arylic streaming devices, making it easy to enjoy high-quality audio with minimal setup time.

Enhanced Up2stream

The Up2stream AMP Mono offers several optional expansion boards that can be used to enhance its functionality and performance. These expansion boards include the Up2stream SPDIF board, Up2stream button board,, Up2stream IR extension board, and Up2stream volume knob board. Each of these expansion boards provides unique features and capabilities that can be used to customize and improve the performance of your Up2stream AMP Mono device. You can find all the boards in Accessories.

USB Sound Card for PC

Once you connect the Up2stream AMP Mono to your PC, it will be detected as a USB sound card. This allows you to stream audio from your PC directly to other devices connected to the Up2stream AMP Mono. This feature provides a convenient way to extend your audio playback capabilities beyond your PC. Support both Windows & Mac PC.

ACPWorkbench Tuning Tool

Our proprietary ACPWorkbench software provides a powerful tool to customize and optimize the DSP settings of each unit of the Arylic streaming devices. This software allows you to adjust a range of settings, including L/R balance, frequency of every channel, pregain, and more. By fine-tuning these settings, you can achieve optimal audio performance and tailor the sound to your preferences.In addition to DSP settings customization, the ACPWorkbench software also supports local firmware updates, define pins and configure other settings.

Smart Home Assistant Integration

The Up2stream AMP Mono offers a range of communication options, including HTTP API, UART, and TCP commands, providing flexibility for users to integrate the device into their existing smart home systems or to develop custom applications. Get API files below in the download portion and check the cases in our forum.

Easy WiFi SSID & BT Name Change

With the 4STREAM app, you can rename your Arylic streamimg device's WiFi SSID and Bluetooth name. The changes will stay even after a factory reset, untill you change it again.

Optional Remote Control

the optional remote control is a useful addition to the Up2stream AMP Mono, providing an easy and convenient way to control your music playback from a distance. Like play/pause, deep bass, adjust volume, and quick switch preset content from a distance. Whether you're listening to music in your living room or in another part of your home, the remote control makes it easy to adjust your settings and enjoy your music to the fullest.
