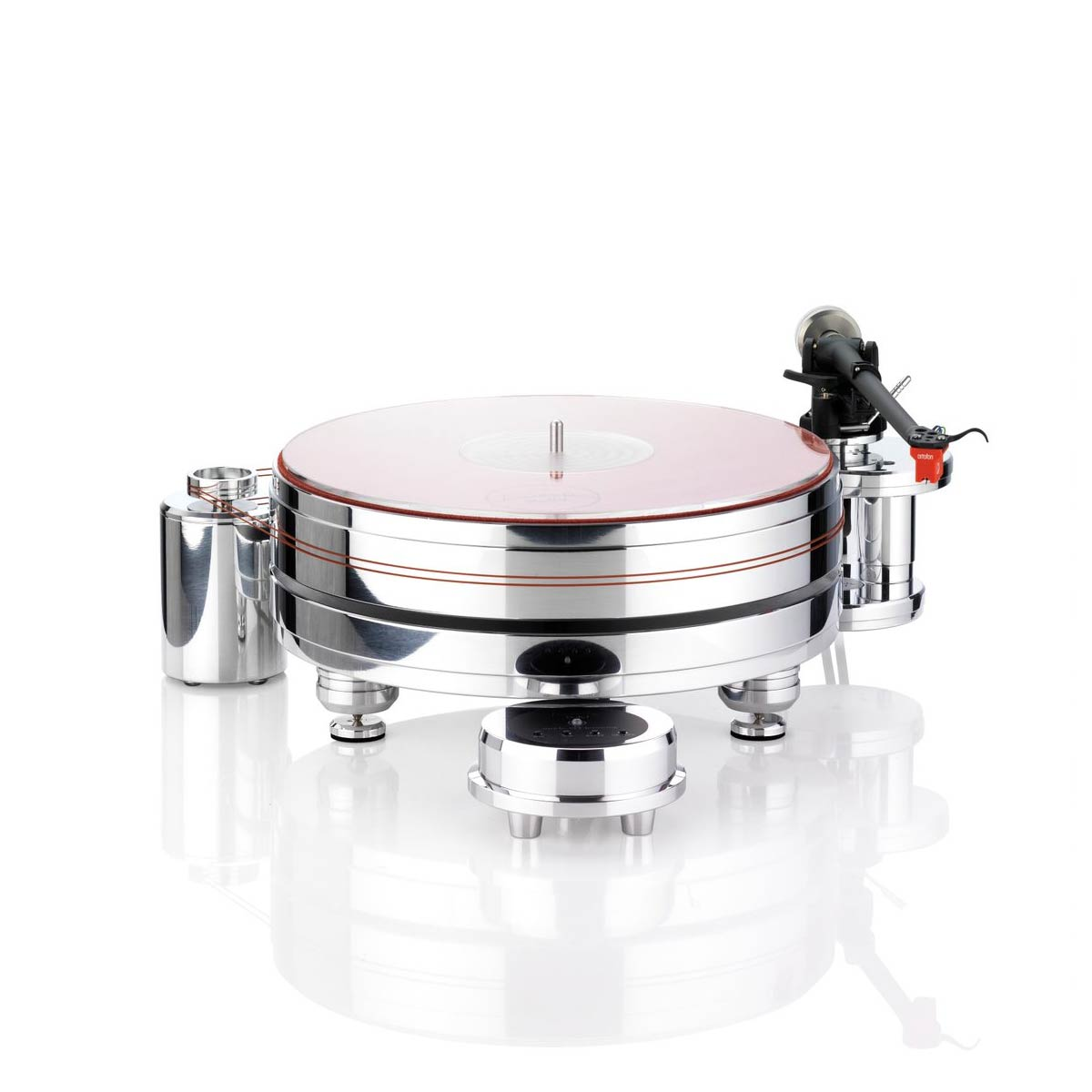

Acoustic Solid Solid Machine Small R

Construction Principle

Acoustically optimized drive shape
Base support plate 35 mm and feet made of solid aluminum
Resonance-optimized and decoupled via special Teflon washers and silicone mixture dampers
Height adjustment via threaded spikes, decoupled via special felt feet

Speed ​​Range

Convenient speed switching
at the push of a button 33.3, 45 rpm
Fine adjustment + or - possible at any time at the push of a button

Bearing

Ground stainless steel axle

cast running bush, ruby ​​bearing base via special Teflon washers.
Special resonance-optimized material with polished ceramic ball

Drive

Berger Lahr synchronous motor with
Belt drive (2-fold)
Belt made of nylon silicone mixture
Microprocessor controlled electronics

Turntable

Made of solid aluminum 10 kg turntable thickness 50 mm
CNC precision turned and polished by hand

Turntable Support

Support mat made of genuine leather
4mm plexiglass pad

Synchronization

0.08% (measured with Ortofon measuring computer)

Electrical/Power Supply

240 Volt 47-63 Hz 0.4 Ampere
Output 32 Volt 0.46 Ampere maximum
Switching power supply with cold appliance connector cable

Total weight

22 kg weight without tonearm

Weight

22 kg

Size

31 × 31 × 20 cm

Material

Aluminum

Tonearm

WTB 370 incl. high-quality pickup system and double pulley

Control

improved Microcontroller M3 with quartz generator and fine adjustment, Plug and Play

Scope of delivery

1 turntable
