The ultimate high-end power amplifier capable of driving the most demanding loads and best loudspeakers on the market.

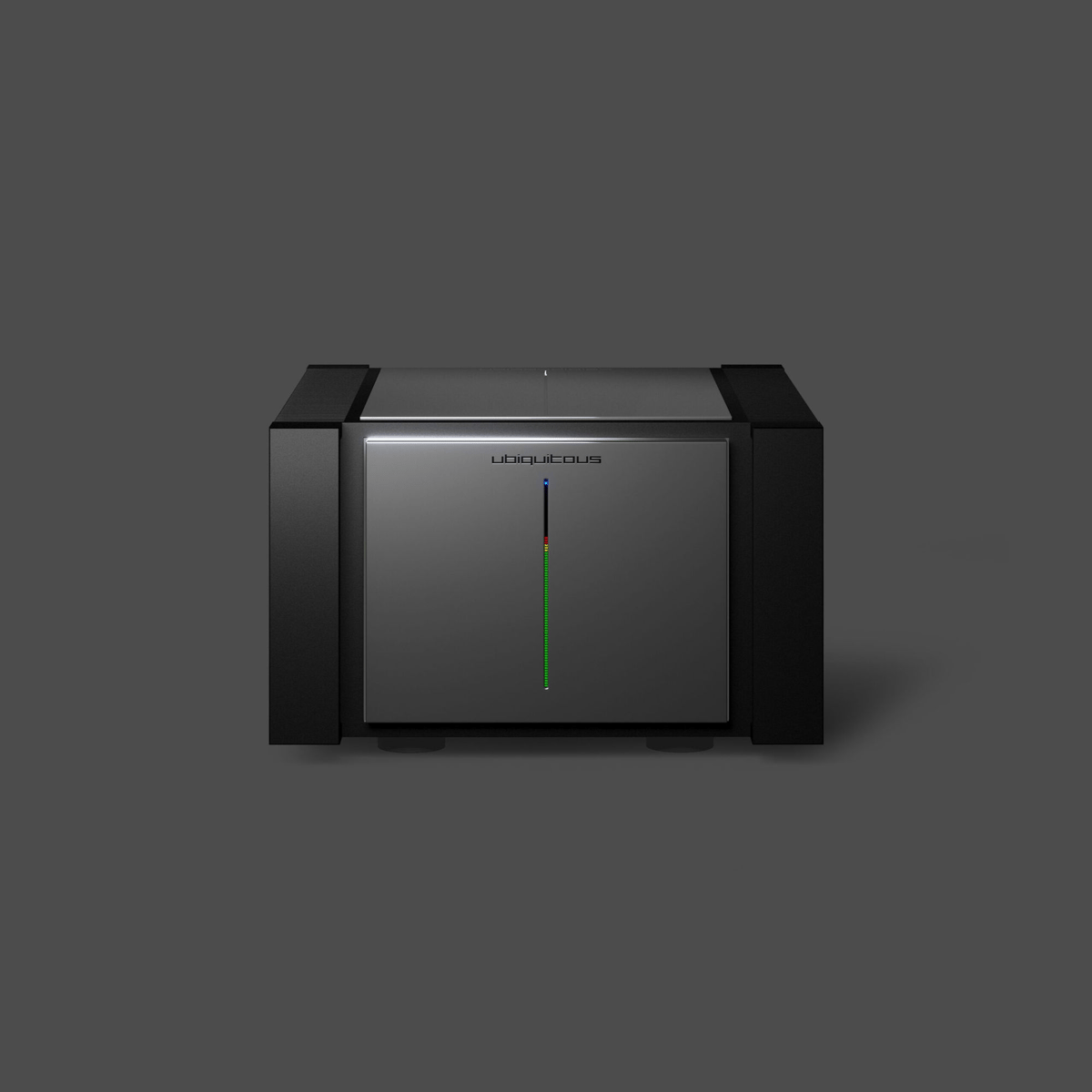

UBIQUITOUS ME is the ultimate high-end power amplifier, capable of driving the most demanding loads and the best speakers on the market.

The circuits have been inspired by the best topologies from the past, extensively tested, and tried down to the smallest detail. ubiqaudiolab has not stopped there.

The heart of our amplifiers has been carefully refined through numerous iterations over the years. We left no stone unturned when it came to properly tuning and optimizing our circuits, both through extensive listening tests and by using Audio Precision lab-grade and industry standard measurement systems at every step of the way.

This allowed us to develop a lifelike amplifier that doesn’t cut corners and doesn’t fall into the realm of subjectivity. We strived for perfection and achieved it through extensive research and development.

The UBIQUITOUS ME implements proprietary VCCF modules and delivers a mighty 1200 W into 8 ohms.

Voltage Controlled Current Feedback is a marvel of electronics, an ultra-refined approach with the shortest possible signal paths that works seamlessly with an enormous, oversized but highly advanced power supply.

All these exquisite technologies not only deliver the required power at all times with the reproduction of the most sophisticated music such as orchestral compositions or complex electronic music. The music also captures the listener’s attention immediately and reproduces the music without a hint of fatigue.

Features

• uniqe VCCF (Voltage Controlled Current Feedback) topology design
• DC coupled, fully symmetrical ballanced J-FET class-A input stage
• thermal memory distortion cancellation by constant power dissipation on gain stages
• high bias current class-AB output stage
• in-house manually matched lateral mosfet power transistors within 1% tolerance
• very large energy storage, high quality Mundorf electrolytic capacitor bank (0,5 F)
• Mundorf 4-pin electrolitic capacitors positioned at the output transistor for ultra fast current transients
• Jupiter copper foil paper-wax decoupling capacitors for greater audio resolution
• 6 kW switch mode power supply followed by solid-state soft start circuitry
• high current common-mode/differential power supply EMI filters
• fully solid-state relay, non-intrusive, multi function MCU controlled protection circuitry
• high quality printed circuit boards with 140 um ultra thick copper layers
• convenient AC mains input phase polarity check
• trigger in-out wired connections
• customized Mundorf high current copper speaker output binding-posts
• Furutech 20A high grade AC inlet
• 74 dB range, peak-hold bar/dot VU meter
• custom designed decoupled feet
