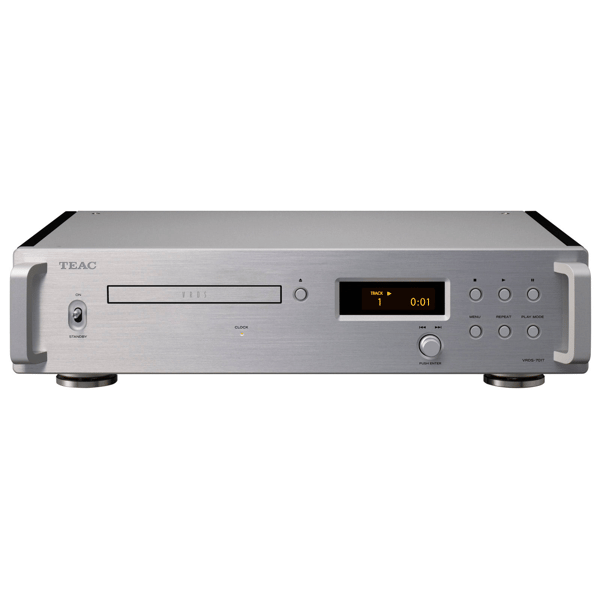

TEAC- USA TEAC VRDS-701T CD Transport - Silver - J

Better together, the VRDS-701T makes an audiophilic match with the TEAC UD-701N USB digital-to-analog convertor (DAC)/Network Player. When combined, you’ll experience superb audio playback supporting DSD512 (22.5MHz) and PCM 384kHz/32-bit PCM while running your highest resolution files.

The VRDS-701T’s core decoder can digitally output MQA-encoded CDs at 88.2 kHz, great for those seeking a powerful and refined approach to high fidelity home entertainment. When paired together with a DAC that has an MQA rendering function, playback using MQA full coding is also possible.

Ensure accurate timing and synchronization with dual on-board clocks.

The pinnacle in CD transport technology, this single-well CD Transport utilizes a VRDS derived from TEAC’s flagship HiFi line, Esoteric. And by eliminating the DAC function in this model, the internal circuitry has been optimized for larger componentry and enhanced digital output.

This TEAC-original CD drive mechanism reduces rotation vibration of the disc itself as well as unwanted mechanism vibration by clamping the CD to an aluminum turntable with the same diameter and maximizing inertial mass in order to stabilize rotation. Servo current is reduced with the turntable by correcting disc warping and distortion and improving the relative optical axis precision of the pickup and disc pit side. This realizes reduced disc reading errors and creates outstanding audio quality.

Independent high-capacity toroidal core transformers are dedicated to the digital control section and the CD mechanism. These two high-capacity toroidal core transformers enable the current to be supplied with greater stability.

Home hifi enthusiasts will appreciate the VRDS-701T’s compatibility with the RS-232. Upgrading your listening lounge has never been easier.

The entire CD mechanism is mounted on the sub-chassis in a semi-floating state to control the transmission of vibrations between the CD mechanism and the chassis, as well as from the external environment. Power transformers, which tend to generate vibration, are also mounted on a floating structure to reduce such occurrences. As if that weren’t enough, side fins for heat dissipation have been tailored so that each one has a different length in order to eliminate sympathetic vibrations too.

CD section

Supported Media

Audio CD, CD (CD-R/CD-RW * CD-DA format)

(8cm CDs not supported)

Digital outputs

COAXIAL

Connector

RCA x1

Output level

0.5Vp-p

Output impedance

75Ω

OPTICAL

TOS (JEITA RC5720C) x1

Clock sync input

BNC x1

Input frequency

10MHz

Input impedance

50Ω

Input level

Rectangle wave: equivalent to TTL level,
Sine wave: 0.5 to 1.0Vrms

External control

Trigger input(12V TRIGGER IN)

3.5mm Mono mini jack x1

12V, 1mA

Trigger output(12V TRIGGER OUT)

12V

Maximum current supply

100mA

General

Power

AC 120V, 60Hz

AC 220-240V, 50/60Hz

Power consumption

40W

Standby power

0.4W

Overall dimensions

444 x 111.3 x 333mm (including protrusions)

Weight

10.1kg

Operating temperature

+5℃ to +35℃

Operating humidity

5％ to 85％ (no condensation)

Storage Temperature

range −20℃ to +55℃

Accessory

AC cord x1, Remote (RC-1338) x1, Dry battery (AAA) x2, Foot pad x3, Manual x1
