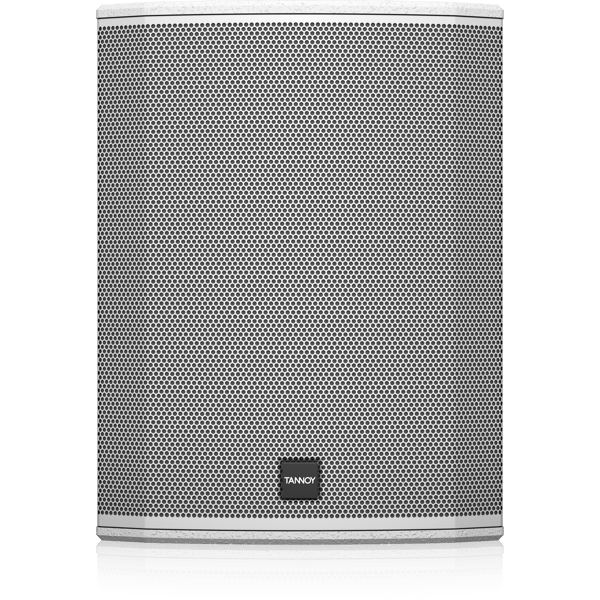

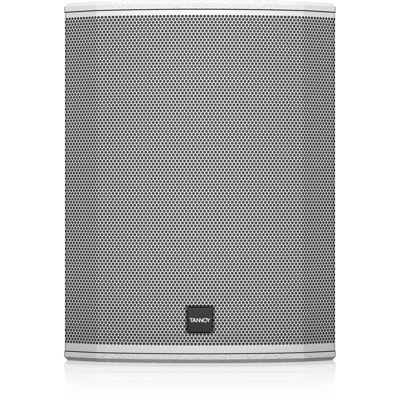

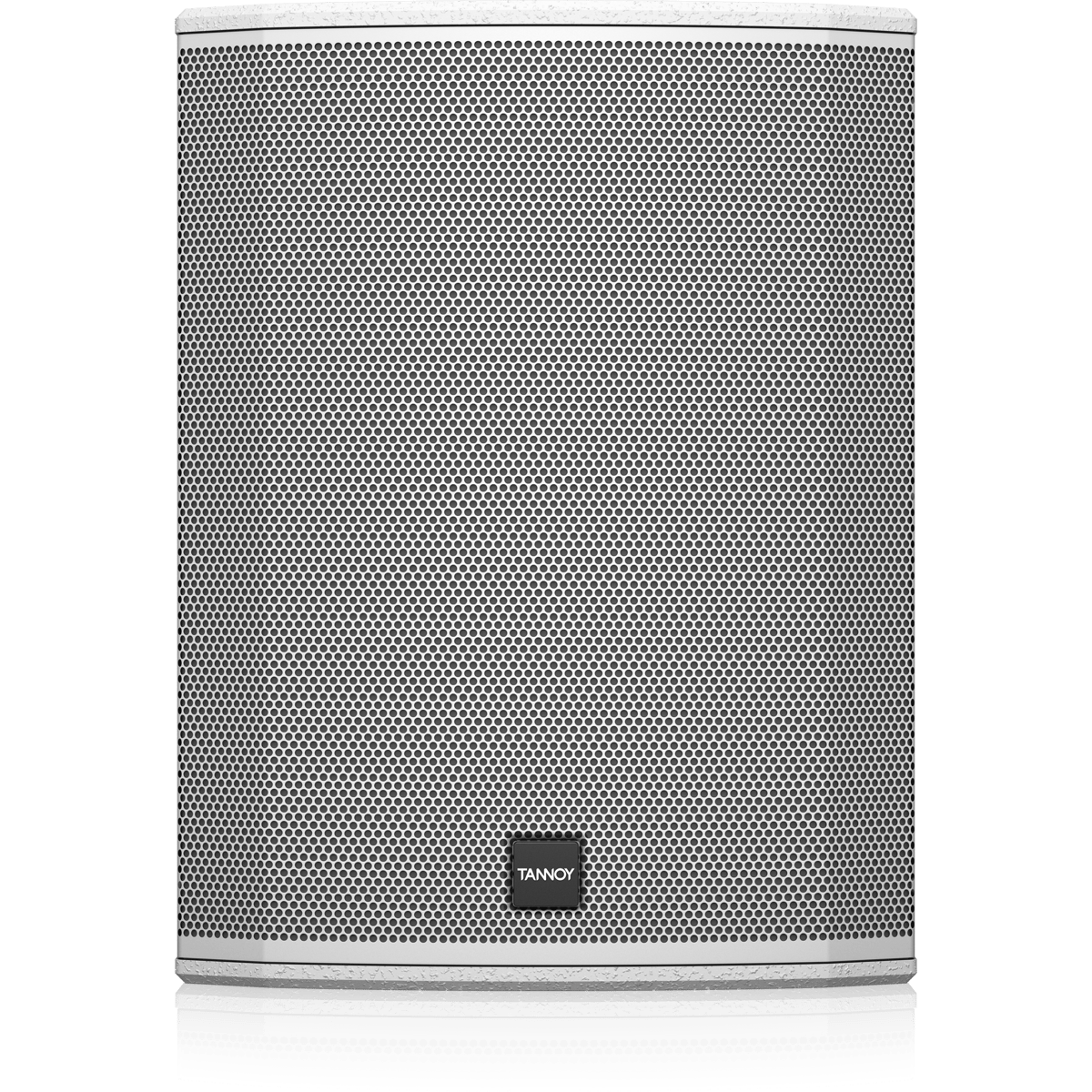

Tannoy VXP 12-WH

• Full-range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications




• 1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification




• 12" Dual Concentric full-range driver for point source phase coherence




• Tightly controlled 90º dispersion for optimum coverage and forward projection




• Ideal for FOH, floor monitor and side fill applications




• Switchable full-range or high-pass filter operation




• Vented and internally braced plywood enclosure




• Finished with hard wearing semi-matte white paint




• Rugged powder-coated perforated steel mesh grille




• Blanking plate for optional VTH pole mount




• Versatile mounting via optional custom-designed hardware




• Fully balanced input and link output on industry standard XLR connectors




• Industry standard twist-lock power socket for a secure locking mains power connection




VXP 12-WH

The VXP 12-WH Dual Concentric Full Range Loudspeaker boasts an exceptional performance-to-size ratio – plus includes
LAB GRUPPEN IDEEA Class-D amplification. VXP 12-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 12-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and
portable applications.

Class-D – Massive Power, Perfect Sound

Equipped with a very efficient and lightweight LAB GRUPPEN IDEEA Class-D power amplifier, the VXP 12-WH provides an impressive 1,600 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.

Dual Concentric Driver

The 1,600-Watt 305 mm (12 ") version of TANNOY’s VXP Series exclusive point source loudspeakers, VXP 12-WH’s Dual Concentric driver ensures high power output with high sensitivity and exceptional efficiency. VXP 12-WH delivers precise 90º dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the twin
driver configuration.

Performance Applications

VXP 12-WH’s trapezoidal enclosure design provides a multitude of placement options including: FOH, floor monitor, delay, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. Mounting options include horizontal and vertical mounting yokes (available separately), an Omnimount * for wall and ceiling installation, and items to facilitate pole-mounting. All hardware has been tested and certified for a greater than 5:1 safety ratio –
giving installers complete peace of mind.

Construction

Finished in a hard wearing semi matt white paint, the vented and internally braced cabinet is constructed from a combination of 15 mm (5⁄8") and 18 mm (¾ ") plywood – and includes a rugged powder coated perforated steel mesh grille. The rear panel connector plate carries a switch for selecting between full range (FR) or high pass filter (HPF) operation, and fully balanced input and link output on industry-standard XLR connectors for input and link connections to additional powered enclosures. A secure industry-standard twist-locking power connector delivers mains power to the electronics, with a selection switch for either manual (MAN) or auto (AUTO) operation. VXP 12-WH loudspeakers are optimized for use with Lab Gruppen amplifiers, or Lake LM Series controllers. A full range of DSP settings to suit many configurations are provided for free download at tannoy.com.
