• Full-range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications




• 1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification




• 6" Dual Concentric full-range driver for point source phase coherence




• Tightly controlled 90º dispersion for optimum coverage and forward projection




• Ideal for FOH, floor monitor, delay and stage front fill applications




• Switchable full-range or high-pass filter operation




• Vented and internally braced plywood enclosure




• Finished with hard wearing semi-matte white paint




• Rugged powder-coated perforated steel mesh grille




• M6 pole mount socket for small-scale portable PA




• Optional horizontal mounting yokes (available separately)




• Fully balanced input and link output on industry standard XLR connectors




• Industry standard twist-lock power socket for a secure locking mains power connection

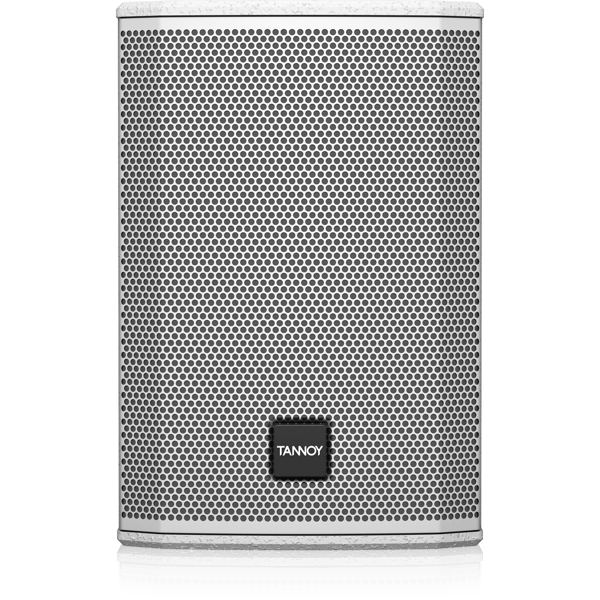

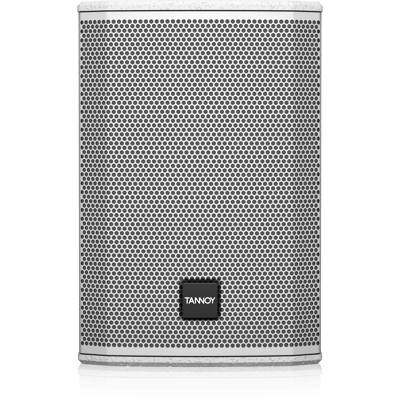

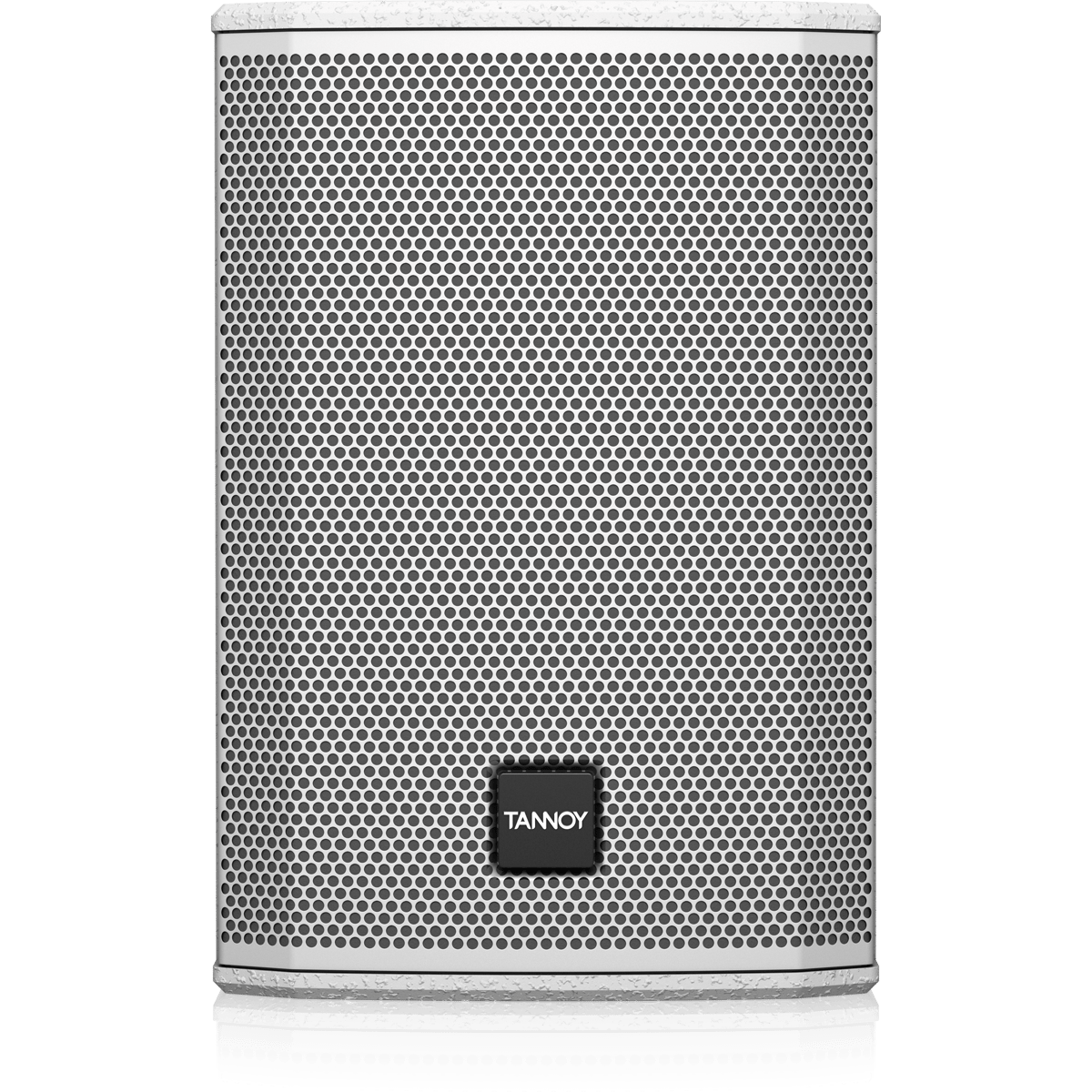

VXP 6-WH

The VXP 6-WH may be one of the smaller Dual Concentric full range loudspeakers in the VXP range, but it boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 6-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 6-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.

Class-D – Massive Power, Perfect Sound

Equipped with a very efficient and lightweight LAB GRUPPEN IDEEA electronics Class-D power amplifier, the VXP 6-WH provides an impressive 1,600 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.

Dual Concentric Driver

The 1,600-Watt 150 mm (6") version of TANNOY’s VXP Series point source loudspeakers, VXP 6-WH’s constant directivity Dual Concentric drive unit technology ensures high power output with high sensitivity and exceptional efficiency. VXP 6-WH delivers precise 90º dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the twin driver configuration.

Performance Applications

VXP 6-WH’s trapezoidal enclosure design provides a multitude of placement options including: small scale FOH, floor monitor, delay and stage front fill deployment, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. An extensive range of optional VXP 6-WH high performance steel mounting hardware (available separately) includes a horizontal yoke bracket, an Omnimount * for wall and ceiling installation, and items to facilitate pole-mounting. All hardware has been tested and certified for a greater than 5:1 safety ratio – giving installers complete peace of mind.

Construction

Finished in a hard wearing semi matt white paint, the vented and internally braced cabinet is constructed from 12 mm (1/2") birch plywood – and includes a rugged powder coated perforated steel mesh grille. The rear panel connector plate carries a switch for selecting between full range (FR) or high pass filter (HPF) operation, and fully balanced input and link output on industry-standard locking XLR connectors for input and link connections to additional powered enclosures. A secure industry-standard twist-locking power connector delivers mains power to the electronics, with a selection switch for either manual (MAN) or auto (AUTO) operation. VXP 6-WH loudspeakers are optimized for use Lake LM Series controllers, and a full range of DSP settings to suit many configurations is available for free download at tannoy.com.
