This cable design is one of the finest feasible in terms of mechanical, electrical and material qualities. Each cable is also fitted with a sliding shield current blocking filter. The mains plugs and IEC power sockets employed are very robust, heavy-duty items. As an option we can supply the large C19 version of the socket which is approved for 16 Ampere.
These are required, for example, for use with the high-performance output stages and mains power supplies featured by our HV series.

Technology

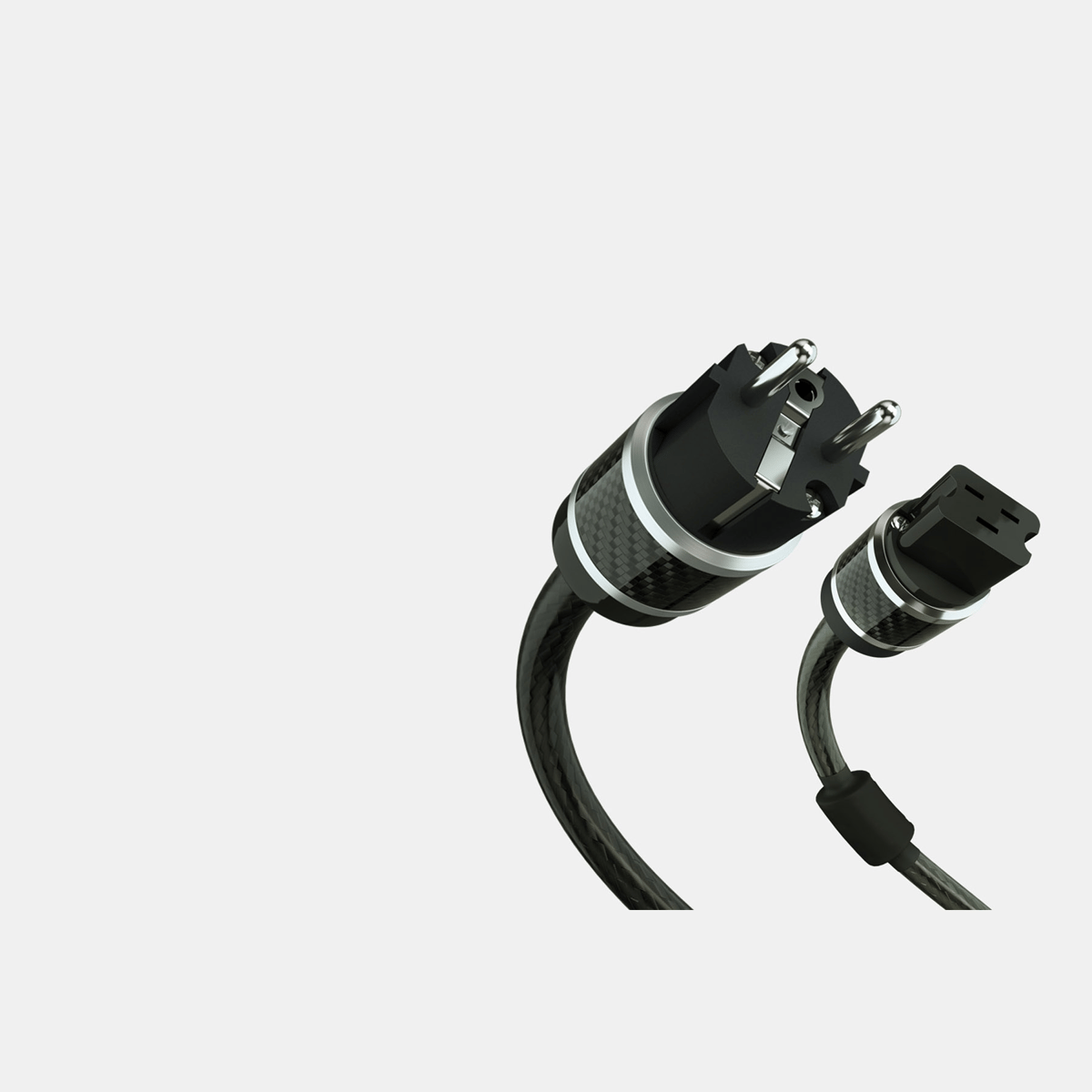

Power Three HD is one of the finest and most complex mains leads on the market. The cable is 11 mm thick and is of extremely tight construction in order to prevent any trace of resonance or oscillation even when high currents are flowing. The hard outer jacket of anti-static PVC encloses a dense braid of PE monofilament which provides mechanical damping. Under this is another high-quality insulator enclosing the aluminium PET film shield with stranded shield wire, which is permanently laminated to a PP film. Inside the core there are three stranded cables, each with a cross-sectional area of 1.5 mm². Every one of these three conductors consists of a bundle of thirty firmly twisted strands of high-purity, oxygen-free copper, in turn encased in a high-quality PE insulator.
