RME Americas DTOX-16

Universal Analog Breakout Box

The RME DTOX-16 breakout boxes are the perfect rack solutions for interconnecting analog multichannel XLRs with the common D-sub 25 connector format.

Three different versions are available:

DTOX-16 I

16 x XLR Input to 2 x D-sub

DTOX-16 I connects 16 XLR inputs to two D-sub 25-pin connectors (channels 1-8 and channels 9-16). The breakout panel supports all interfaces using analog 25-pin D-sub inputs as well as the following RME interfaces: M-32 AD, M-16 AD, M-32 Pro AD, M-32 Pro DA.

DTOX-16 O

16 x XLR Output 2 x D-sub

DTOX-16 O connects 16 XLR outputs to two D-sub 25-pin connectors (channels 1-8 and channels 9-16). The breakout panel supports all interfaces using an analog 25-pin D-sub output as well as the following RME interfaces:
M-32 DA, M-16 DA, M-32 Pro AD, M-32 Pro DA.

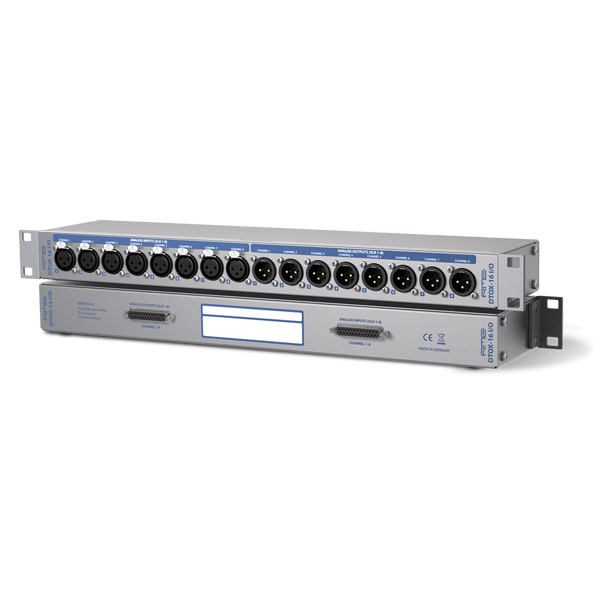

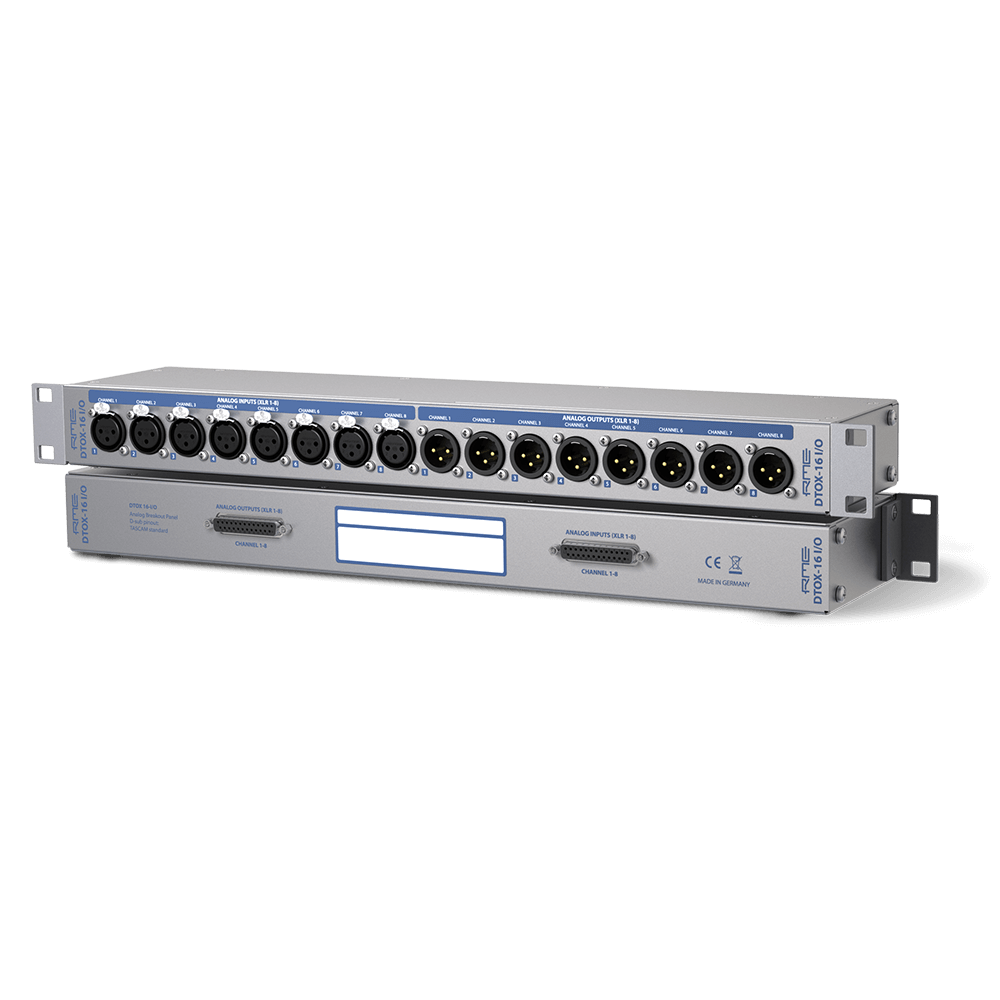

DTOX-16 I/O

8 x XLR Input > D-sub and 8 x XLR Output > D-sub

8 x XLR Input > D-sub and 8 x XLR Output > D-subDTOX-16 I/O connects 8 XLR inputs to a D-sub 25-pin connector and 8 XLR outputs to another D-sub 25-pin connector. The breakout panel supports all interfaces using an analog 25-pin D-sub I/O as well as the following RME interfaces: ADI-8 QS, ADI-8 DS Mk III, M-32 AD, M-32 DA, M-16 AD, M-16 DA, M-32 Pro AD, M-32 Pro DA.
