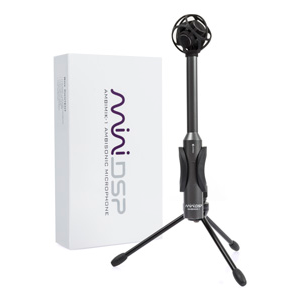

MiniDsp ambiMIK-1
Introducing ambiMIK-1, an affordable First Order Ambisonic (FOA) microphone with embedded preamp, Analog to Digital converters (ADC) and USB processor. This compact solution enables high sample rates (up to 32bit/192kHz) in a portable package. With applications ranging from VR/AR & music recording, the ambiMIK-1 doesn’t require any bulky external preamp or XLR cables. A simple USB cable to your tablet/laptop and you’re ready to go!
With its 4 low noise 14mm capsules, its slim aluminum body and nylon protective frame, the ambiMIK-1 package was engineered for durability and optimal performance without breaking the bank.
Last but not least, miniDSP partnered with Dirac Research for the design of a VST plugin specifically calibrated for the ambiMIK-1 with over 1200 measurements. The controls include Yaw/Pitch/Roll/Output gain and Output Format (B format or Binaural).
Features
- First Order Ambisonic Microphone
- Multichannel USB audio
- 32bit 44.1~192kHz recording, ASIO drivers
- Low noise capsules
- Binaural VST/AU plugin powered by Dirac Research
- A-B Conversion (Ambix Output)
Product Downloads
- ambiMIK-1 Product datasheet
- ambiMIK-1 User Manual
What's in the box?
- 1 x ambiMIK-1 microphone
- 1 x License for Dirac Research Ambisonic VST/AU plugin - Customized for ambiMIK-1
- 1 x shielded USB cable (2m)
- 1 x mini Tripod
- 1 x wind screen
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- USB Audio Controller
- XMOS 500MHz multicore processor
- ADC
- 32bit ADC with embedded PGA for up to 60dB analog gain 120dB SNR, Gain control via Mac/Win application
- Capsules
- 4 x Low noise cardioid capsules, 14mm pre-polarized condenser Max SPL: 127dB SPL Self Noise: 16dB SPL A format layout: Ch1 - Front Left Up (FLU), Ch2 - Front Right Down (FRD), Ch3 - Back Left down (BLD), Ch4 - Back Right Up (BRU)
- Connectivity
- USB 2.0 streaming 32bit / Selectable sample rate 44.1kHz to 192kHz
- Software
- VST plugin (Mac/Win) Powered by Dirac Research Uniquely calibrated for ambiMIK-1 Selectable output: B format (Ambix) or Binaural Controls: Output gain, Yaw, Pitch, Roll
- USB Audio
- Linux/OSx/Android Driverless ASIO compatible driver for Windows iOS support with USB camera adaptor
- Accessories
- 1 x miniTRIPOD with microphone clamp 1 x windjammer 1 x USB 2m long usb cable
- Dimensions (W x D) / Weight
- 42 x 213 mm, 130g
- Construction
- Aluminum body with plastic microphone holder
Manufacturer's Description — MiniDsp
Introducing ambiMIK-1, an affordable First Order Ambisonic (FOA) microphone with embedded preamp, Analog to Digital converters (ADC) and USB processor. This compact solution enables high sample rates (up to 32bit/192kHz) in a portable package. With applications ranging from VR/AR & music recording, the ambiMIK-1 doesn’t require any bulky external preamp or XLR cables. A simple USB cable to your tablet/laptop and you’re ready to go!
With its 4 low noise 14mm capsules, its slim aluminum body and nylon protective frame, the ambiMIK-1 package was engineered for durability and optimal performance without breaking the bank.
Last but not least, miniDSP partnered with Dirac Research for the design of a VST plugin specifically calibrated for the ambiMIK-1 with over 1200 measurements. The controls include Yaw/Pitch/Roll/Output gain and Output Format (B format or Binaural).
Features
- First Order Ambisonic Microphone
- Multichannel USB audio
- 32bit 44.1~192kHz recording, ASIO drivers
- Low noise capsules
- Binaural VST/AU plugin powered by Dirac Research
- A-B Conversion (Ambix Output)
Product Downloads
- ambiMIK-1 Product datasheet
- ambiMIK-1 User Manual
What's in the box?
- 1 x ambiMIK-1 microphone
- 1 x License for Dirac Research Ambisonic VST/AU plugin - Customized for ambiMIK-1
- 1 x shielded USB cable (2m)
- 1 x mini Tripod
- 1 x wind screen
