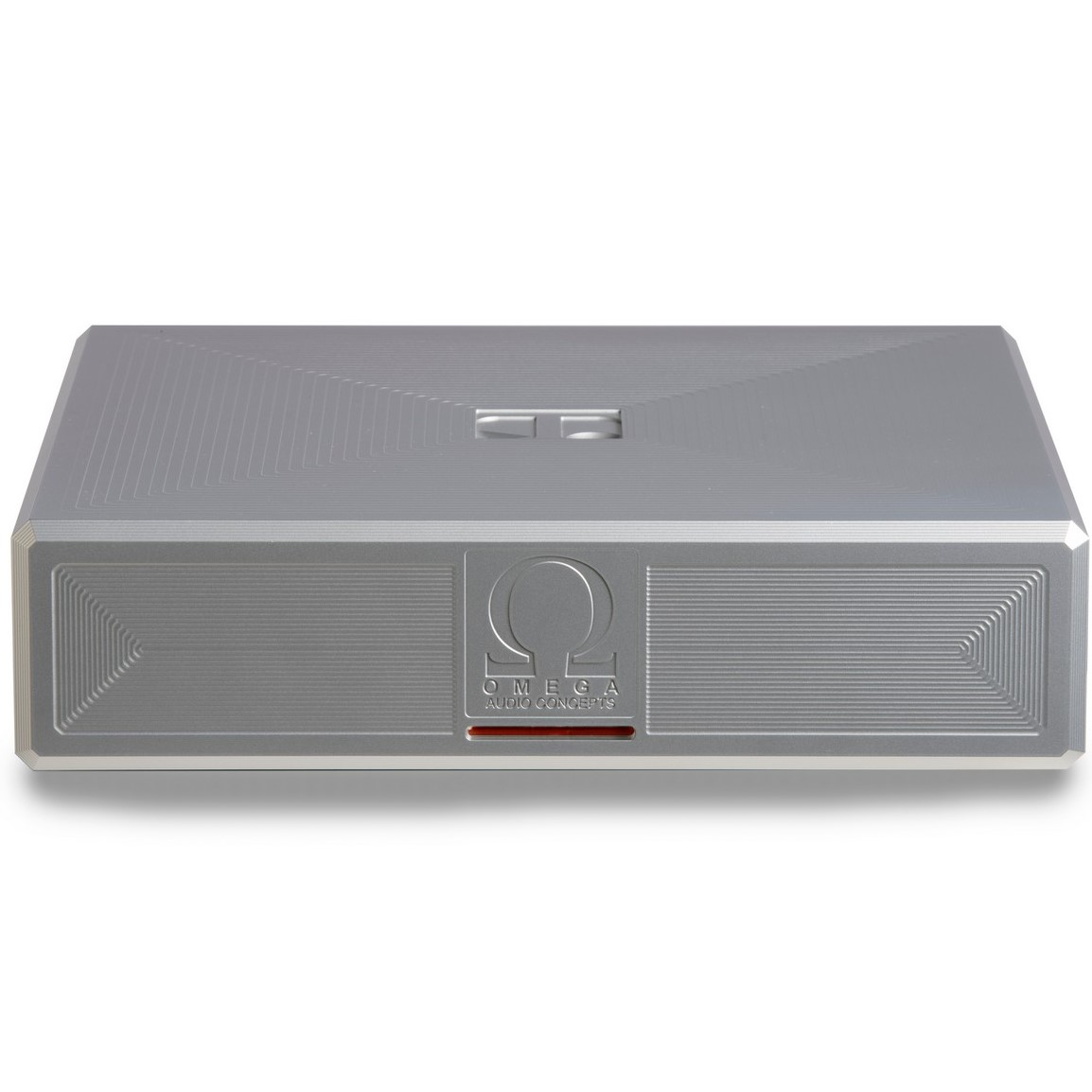

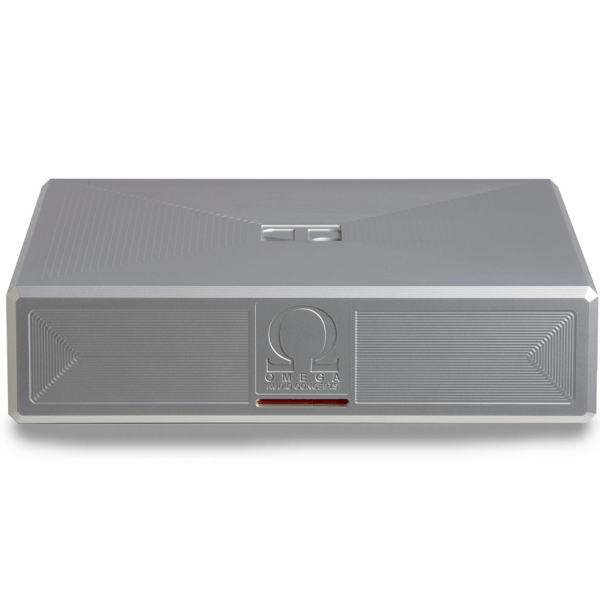

Omega Audio Concepts ACCORDO

POWER SUPPLY MODULE 1 CHANNEL RIGHT 1 CHANNEL LEFT

• Toroidal transformers for the power supply section, preamplification, and volume control, independent for positive and negative half-waves.
• Four separate toroidal transformers for positive and negative half-waves of the power supply section for final stages.
• Integrated amplifier
• IEC inlet with fuse
• Maximum power consumption: 300 W for the right channel and 300 W for the left channel.
• Cabinet made from solid aluminum, machined using CNC technology.
• Dimensions: 410 x 410 x 110 mm (W x D x H).
• Weight: 38.5 kg excluding packaging
• Packaging: dedicated flight case for each individual unit

AMPLIFICATION UNIT 1 module right channel 1 module left channel

• Cabinet made from solid aluminum, machined using CNC technology.
• Analog signal ground separate from power supply circuit ground.
• SMD components with a tolerance of 0.1% for resistors and capacitors in the preamplification and amplification stages.
• No series capacitors in the signal path. Be careful not to connect the audio source with continuous output voltage higher or lower than 10 mV.
• Internal and external connection systems made with patented ELEMENTS conductors from OMEGA AUDIO CONCEPTS.
• Digital volume control with a single resistor in the signal path in 0.5 dB steps.
• Five high-level inputs: 4 RCA + 1 XLR.
• Adjustable pre-out output -60db / +36db.
• Input impedance 10 kohm.
• Power: 200 W at 8 ohms, 350 W at 4 ohms.
• Signal/noise ratio: 100 dB.
• Volume control and input selector system with a remote control included, featuring a low-energy Bluetooth app for Android.
• Interconnections between power supply and amplifier unit from the NANO Extra series are included.

• Upgradeable with Micro Extra or The Element series interconnects.




• Dimensions: 410 x 410 x 110 mm (W x D x H).



• Weight: 35.5 kg excluding packaging.
• Packaging: dedicated flight case for each individual unit.
