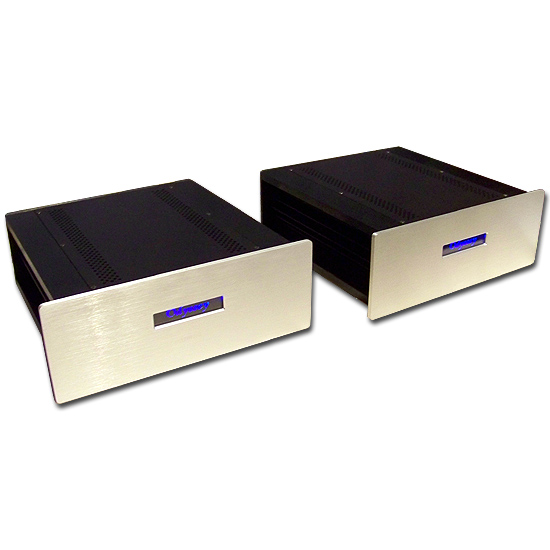

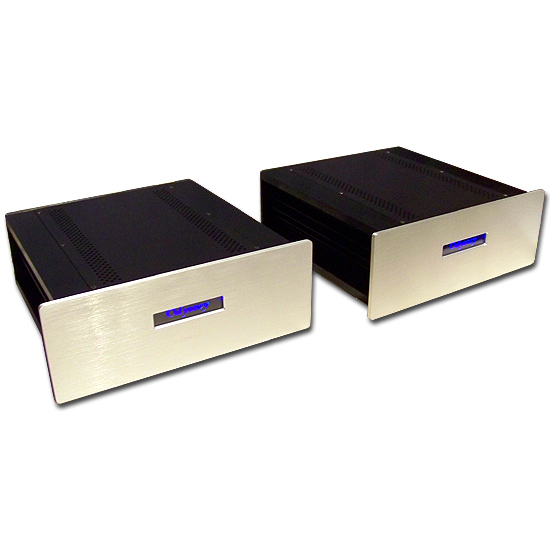

odysseyaudio.com The Stratos Mono Amplifier

1 x 180 Watts RMS @ 8 Ohms (each) 2 Ohm load stable Class A/AB 1 – 600,000 Hz frequency range 120,000µF memory (each) 120 amps current delivery < 0.04% THD (not audible) > 800 continuous damping factor Input impedance 22K ohms DC offset > 1 mV RCA & XLR (bridged) inputs 400 VA Plitron transformer (each) Sanken Epitaxial Planar Transistors 2SA1216 & 2SC2922 Anti vibration dual thickness PCB Power consumption when idle ±30Watts 4 internal fuses 250V/6.3A, 5x20mm, fast blow Additional electrical protection fuse > 56 lbs weight / 25.4 kg Dimensions: 19 width x 18 deep x 7 height (in) /48.3 width x 45.7 deep x 17.8 height (cm)
