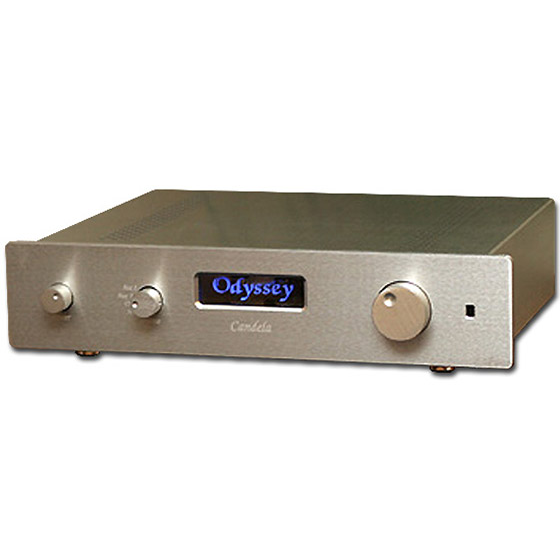

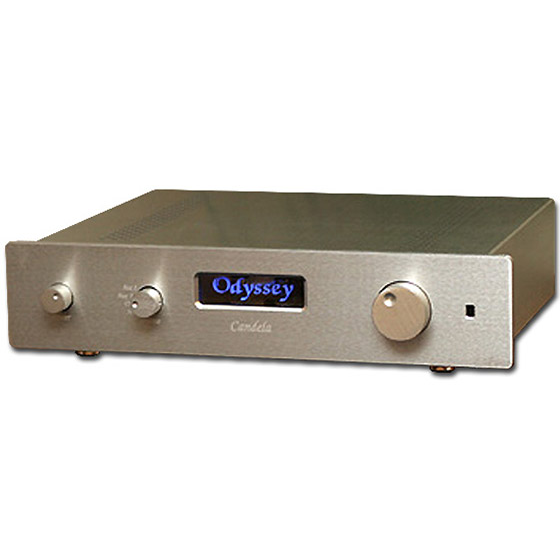

odysseyaudio.com The Candela Preamplifier

“Current Source Loaded Grounded Cathode Amplifier” based design Vacuum Tube single ended stages Class-A single ended configuration Zero feedback Low output impedance Low current design Relay-controlled input selector Power supply rectification using ultra fast-soft recovery “Stealth” Diodes (2) ECC82/12AU7 tubes 14dB gain Frequency Response 10Hz – 50kHz RCA type inputs & output 4 line inputs 1 input can be configured for HT bypass * Input Impedance 47 kOhm 1 pair preamplifier output 2nd pair of pre outs optional * Preamplifier output impedance: <2 kOhm High quality Alps potentiometer Remote control volume option available * >16 lbs weight / >7.25 kg Dimensions: 18 width x 8 deep x 4 height (in) / 45.7 width x 20.3 deep x 10.2 height (cm)
