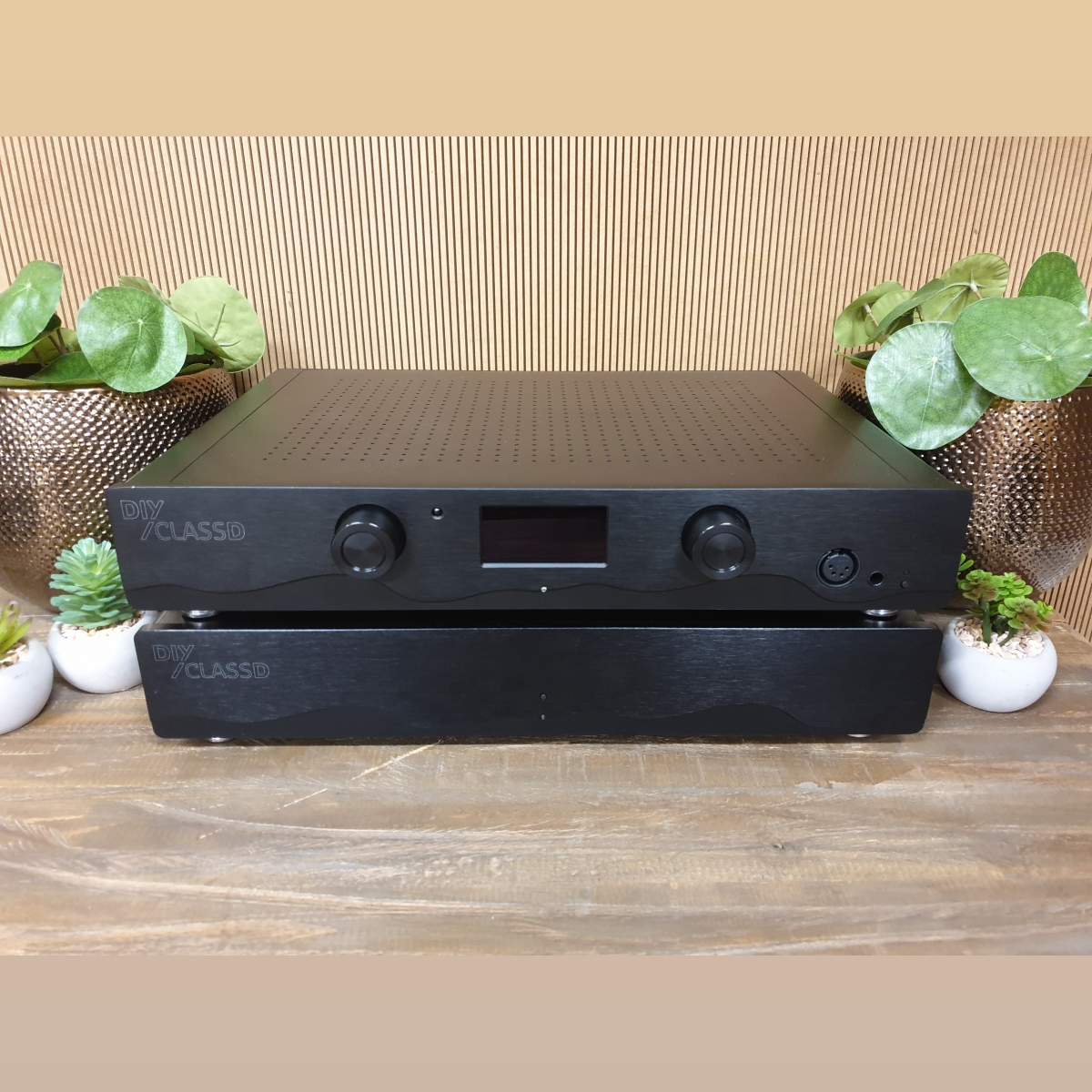

DIYclassD PreAmplifier Kit

Gain up, noise down, the DIY PreAmplifier.

To complement our DIYclassD amplifier kits we introduce our brand new DIYclassD PreAmplifier kit. Just like our amplifier kits you get a complete kit to assemble an fully analogue high-end preamplifier. Add-ons like a DAC, Phono stage and EQ will be released in the nearby future. Because of it’s modular design, add-ons can be added at a later stage after you have finished building your analogue DIY PreAmplifier.


Build yourself a state-of-the-art high-end preamplifier with this DIY kit by DIYclassD. DIYclassD is part of Hypex Electronics. At DIYclassD our aim is to serve the global DIY community and consumer market for Hypex products.


With the easy to follow instructions you will be able to realize a high end preamplifier at a fraction of the cost and all of this can be done in just 30-60 minutes. Combined with our DIYclassD Nilai® power amplifier kits you can create a complete set of superbly sounding equipment.


All you need to bring to the table is this box and a few tools: • Wire cutter (or combination plier)• 5.5mm hex nut driver (or combination plier) • 7mm hex nut driver (or combination plier) • 3.5mm flat type screwdriver


Read full description
View at VTV Amplifier
Specifications

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Watt'n Potatoes

Not yet rated

This product doesn't have a Watt'n Potatoes score or editorial summary yet.

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Reviews & Sources

Online Reviews & Mentions

No reviews found yet

store
store
store
store
store
store

YouTube Reviews

No reviews found yet

store
store
store
store

Forum Mentions

No forum mentions found yet

store
store
store
store
store
store

Specifications

Inputs
2 x stereo unbalanced RCA 1 x stereo balanced XLR USB service port (firmware updates)
Outputs
2 x stereo balanced XLR 4 x trigger 12V 1 x XLR-4 headphone 1 x Jack 6.3mm headphone
Highlights
Fully analogue 2.7” monochrome OLED display Remote control included Modular design Discrete op-amps & voltage regulators
Future add-on options
DAC DIGin (AES, SPDIF, Optical, USB, Bluetooth, Streamer) Fusion Connect (Optimized Master Functionality for Fusion Amps) Phono stage Equalizer
This kit contains
Complete DIYclassD PreAmplifier case “matte black“ Complete internal cable harness Power supply, front board, main board and headphone board All needed mounting materials Assembly instructions 1.5mm Allen key TX-10 Torx key TX-20 Torx key Remote Control (incl. battery)
Item
Input level Output level Output level headphones Input impedance Output Impedance Output Impedance headphone connectors Noise voltage Noise voltage Signal to noise Gain range Gain resolution Bandwidth Distortion (THD)
Symbol
Vin Vout Vout_hp Zin Zout Zout_hp Vn Vn_hp SNR Fc THD
Min
-70
Typ
100k 3μ 7.5μ 122 0.5 1
Max
14,45 14,45 19 44 <0.5 +13 -140
Unit
dBu dBu dBu Ohm Ohm Ohm V V dB dB dB Hz dB
Notes
(4 Vrms) (4 Vrms) (7 Vrms) Unweighted at unity gain Unweighted at unity gain @1kHz, 4Vrms in, 0dB
Technical data
Supply voltage Standby power Power Consumption Dimensions Weight
Value
90-135 / 180 – 270 Volt AC/47-63Hz <0,5W 10 W 417mm*72mm*340mm 4 kg
Notes
Auto Switching Basic configuration (W x H x D)
Balanced Line Output
Headphone Output
Phono Stage
Built-in DAC
Remote Control
Display

Manufacturer's Description — VTV Amplifier

DIYclassD PreAmplifier Kit

Gain up, noise down, the DIY PreAmplifier.

To complement our DIYclassD amplifier kits we introduce our brand new DIYclassD PreAmplifier kit. Just like our amplifier kits you get a complete kit to assemble an fully analogue high-end preamplifier. Add-ons like a DAC, Phono stage and EQ will be released in the nearby future. Because of it’s modular design, add-ons can be added at a later stage after you have finished building your analogue DIY PreAmplifier.


Build yourself a state-of-the-art high-end preamplifier with this DIY kit by DIYclassD. DIYclassD is part of Hypex Electronics. At DIYclassD our aim is to serve the global DIY community and consumer market for Hypex products.


With the easy to follow instructions you will be able to realize a high end preamplifier at a fraction of the cost and all of this can be done in just 30-60 minutes. Combined with our DIYclassD Nilai® power amplifier kits you can create a complete set of superbly sounding equipment.


All you need to bring to the table is this box and a few tools: • Wire cutter (or combination plier)• 5.5mm hex nut driver (or combination plier) • 7mm hex nut driver (or combination plier) • 3.5mm flat type screwdriver
