Magico ACC

Multi-channel soundtracks for movies and music include a dedicated center channel track of information that can range from subtle to explosive in a split second. In order to properly reproduce these dynamic swings of micro and macro information, a full range center channel loudspeaker that matches the speed and integrity of the front L/R loudspeakers is imperative.

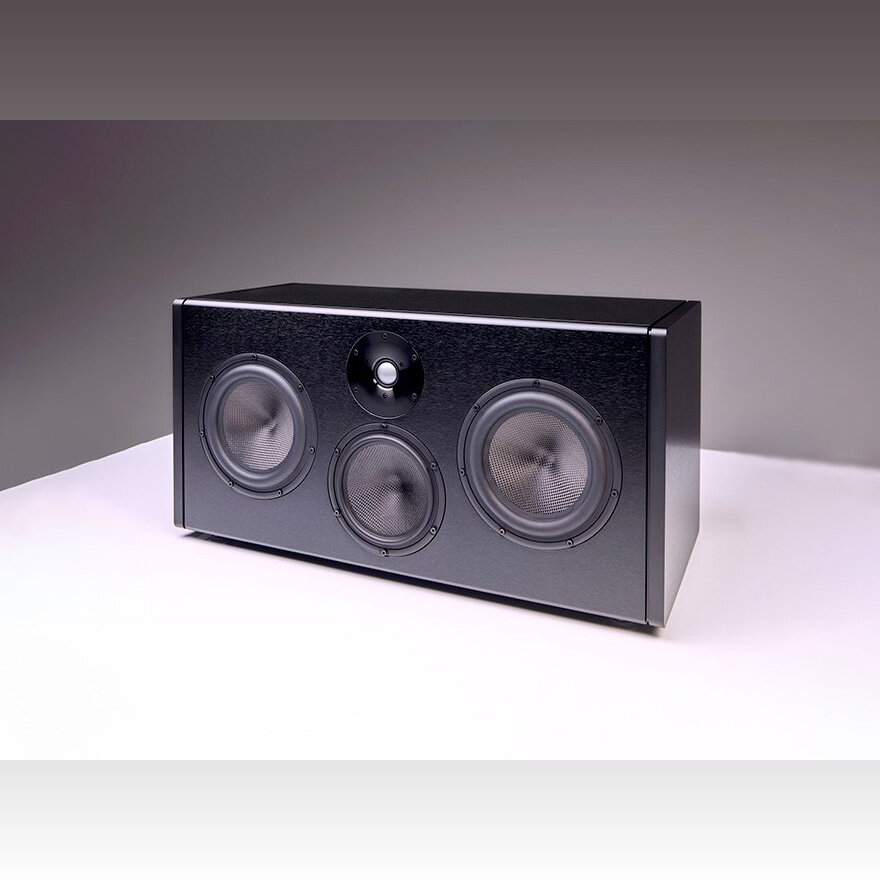

The ACC features a sealed, fully braced aluminum enclosure, beryllium dome tweeter, carbon Nanographene cones, neodymium-based motor systems and our renowned elliptical crossover. A true Magico loudspeaker design offering unparalleled sound performance in its category and price point and above all deserving of the Magico “M” engraving - a mark of our uncompromising drive to push the boundaries of loudspeaker technology. In combination with our full-range A3 & A5, A1 two-way and the ASUB, all applications for a full Magico home theater are now accessible to a larger audience than ever before.

The ACC enclosure is constructed using ⅜” thick 6061 T6 aircraft grade aluminum, similarly to the enclosure developed for the Q1 and is available in an elegant brushed, black-anodized aluminum finish. An innovative internal bracing technique along with the most advanced damping materials makes the sealed enclosure incredibly rigid and free of unwanted mechanical resonances. The finished enclosure design of the ACC is evaluated in simulation using the latest FEA software along with physical testing to meet the no-compromise requirements of Magico for optimized enclosure rigidity, stability and to ensure benchmark acoustical standards.

The ACC shares its driver complement with the A3: 28mm Beryllium tweeter, 6” midrange and 2x 7” bass woofers; utilizing cones formulated with Multi-Wall carbon fiber and a layer of XG Nanographene, which provides an optimal stiffness to weight ratio with ideal damping properties. overhung neodymium motor systems ensure stabilized magnetic fields in the pure titanium voice coils.  The drivers in the ACC are acoustically integrated using Magico’s proprietary Elliptical Symmetry Crossover topology that utilizes state-of-the-art components from Mundorf of Germany. The dividing network features a 24db per octave Linkwitz-Riley filter that maximizes frequency bandwidth while preserving phase linearity and minimizing intermodulation distortion.
