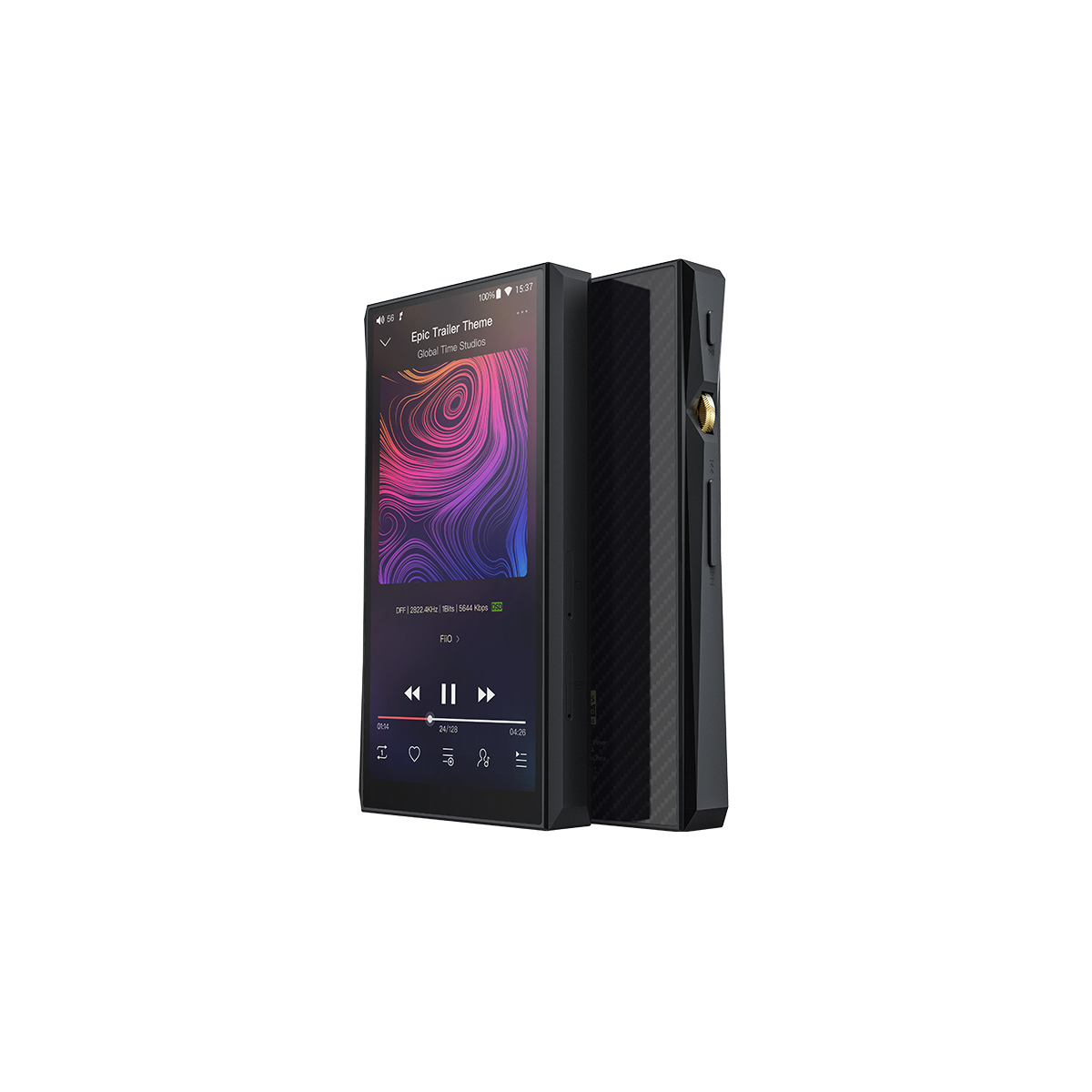

M11

Android-based Lossless Portable Music Player

Transcending Traditional

Boundaries, Wirelessly

Exynos 7872 | 3GB RAM+32GB ROM | 2.5+3.5+4.4| 5.15"，18:9/720P

*Pictures are for reference only, actual product may vary

High-performance audiophile DAC

AK4493*2

Copious amounts of RAM and storage

3GB RAM+32GB storage

All major portable headphone outputs

2.5mm/3.5mm/4.4mm

Samsung Exynos 7872

Flagship main chipset

Two-way Bluetooth with LDAC

Transmission of all Bluetooth formats + reception of lossless Bluetooth

High-res music formats supported

Up to PCM 384kHz, and native DSD256

Symmetrical USB Type-C connector

With USB DAC and USB audio out functionality

Numerous ways to connect to your music

FiiO Link/AirPlay/DLNA/WiFi

Numerous ways to output your music

Bluetooth / single-ended / balanced / line output / USB / coaxial

5.15 inch bezel-less touchscreen

18:9 ratio, 720P resolution

Open-source Android 7.0 Nougat

Supports any 3rd party apps

Dual quick charging technologies

Quick Charge 2.0 + MediaTek Pump Express

 Dual-band WiFi

2.4GHz and 5GHz

Long battery life

13 hours battery life

1200 hours deep sleep standby time

All To DSD

FiiO is the first to support this feature

Dual Hi-Res Audio certifications

Hi-Res Audio and Hi-Res Audio Wireless certified

Explosive performance from the Samsung Exynos 7872

To ensure the user would have a great, powerful experience, we chose the hexa-core Samsung Exynos 7872 SoC to power the M11. With excellent performance comparable to the Snapdragon 625 and Kirin 659, you can be sure that the M11 will output your music without fail while provide an exceptionally fluid experience.

Dual AK4493 high-performance audiophile DACs

Inside the M11 are two AKM AK4493 DACs decoding your music. Compared to its AK4490 predecessor, not only has the signal-to-noise ratio (SNR) been doubled, but distortion has also been reduced by 1dB for greatly improved sound quality.

Truly balanced audio design

Inside the M11 is a specially custom-made OPA926 op-amp chip, which has a lower noise floor, lower distortion, and overall cleaner power compared to the AD8397 op-amp.

And the OPA926 is only one high-quality part out of the M11's highly optimized audio architecture designed to maximize sound quality, only achieved after constant iteration and improvement on the audio circuit.

Unbelievable sound that will seriously move you

Much work has been done to ensure the M11 has exceptionally good sound, especially with vocals and treble. The low-pass filter has been carefully adjusted, major improvements were made to the power supply, and key components such as resistors and capacitors were upgraded - all resulting in the M11 reaching new heights in audio quality. FiiO's engineers have worked tirelessly to make sure the M11 will sound great no matter which headphones you plug in.

Pushing the boundaries of wireless Hi-Fi

With its support of Bluetooth 4.2, the M11 can transmit the SBC/aptX/aptX HD/LDAC/LHDC Bluetooth format as well as receive certain formats. The M11's high-performance Bluetooth radio ensures you can transmit signals further with stronger overall signal strength, so nothing can get in your way of enjoying quality wireless music.

*M11 as a receiver supports SBC and LDAC.

A music player, but also a capable Bluetooth amplifier

When set to be in the Bluetooth receiver mode, the M11 transforms into a high-quality Bluetooth amplifier, with significantly better frequency response, as well as lower distortion, noise floor, and crosstalk compared to typical Bluetooth solutions. On top of that, the M11 can also output any received Bluetooth signals through the coaxial out to an external decoder. With the M11, you can enjoy truly divine sound over the wireless convenience of Bluetooth.

More choices for less headaches

2.5/3.5/4.4mm headphone outputs

Today, all high-end portable music players now include balanced headphone outputs. However, the M11 goes one step further by including both the 2.5mm and 4.4mm balanced outputs, as well as retaining the 3.5mm single-ended output. No need for cumbersome adapters with the M11 – simply just plug in your headphones to the right output jack!

Embrace the era of wireless with 2.4/5GHz dual-band Wi-Fi

With the M11's dual-band Wi-Fi radio, you can expect better signal strength as well as faster and more stable connections – especially when using Wi-Fi on the 5GHz band to avoid interference 2.4GHz Bluetooth.

Straight lines that directly speak to you

You won't find any curves on the M11 – rather, its body composed only of straight edges is the ultimate extension of the polygonal style, giving an radically distinctive yet visually arresting aggressive look.

18:9 HD touchscreen that your fingers will simply glide across

Adorning the front of the M11 is a large and colorful 5.15 inch 10-point multitouch screen with 1440*720 resolution, giving you a more immersive experience and more space to easily execute gestures.

86.0%

high screen ratio

10-point touch

with gesture recognition

312PPI

high pixel density

5.15 inch

large display

16.7M colors

large color gamut

1440*720

high resolution

With a glass-backed design, the M11 has got your back

The thoroughly modern and sexy glass-backed design allows you to instantly make a tactile connection with the M11 with just the palm of your hand. The glass back features PET coating, and the sophisticated carbon-fiber texture let others know that the M11 means business.

Precisely adjust volume with the gold tactile volume wheel

Adding a bold splash of contrasting color to the all-black body is a gold-colored volume wheel, whose texture has been further improved and refined compared to previous player for an even better feel. In addition, the volume wheel is now dust resistant for even greater durability.

Get a quick surge of power with QC2.0 and MediaTek PE quick-charging technologies

Nobody wants to wait for charging. That’s why we have implemented the Quick Charge 2.0 and MediaTek Pump Express quick charging support on the M11, allowing it to only take 2.5 hours to full charge its large battery. And with the considerable 3800 mAh high-voltage battery, the M11 can continuously play music up to 13 hours and be placed in deep sleep standby for up to whopping 50 days.

Open-source Android OS with a specially-designed FiiO Music app

The M11 features a deeply customized version of Android 7.0, with a highly optimized audio software architecture that circumvents SRC for global truly lossless audio. The FiiO Music app was designed for audiophiles by audiophiles, with both a user interface that provides easy access to your music and an exclusive decoding algorithm for highest sound quality possible.

* Please kindly note that the Apple Music is not available on the M11.

MQA decoding for

truly lossless playback

The M11 supports decoding MQA tracks in 8x mode. MQA encoded tracks can deliver ultra-high resolution lossless playback for stunning quality while only taking up tiny amounts of space – meaning you can carry more with you on the go.

Spend less time cleaning with more storage

3GB RAM+32G storage

The copious 3GB of RAM ensures smooth multi-tasking, while the 32GB of storage plus two micro-SD card slots (each supporting up to 2TB card) means you can store thousands of lossless music without having to delete songs to free up space.

4TB

Expanded storage

3GB

RAM

32GB

ROM

Instantly take control from your phone with FiiO Link

After connecting your phone and the M11 via Bluetooth with the FiiO Link functionality, you can remotely control the M11 with your phone as well as display what it's currently playing.

*FiiO Link is currently only supported on Android devices.

Flexibly listen to your music with the convenience of DLNA and AirPlay

Do you have so much music that you can't even fit them into the largest micro-SD cards? Then simply play them through DLNA for your PC or NAS, or via AirPlay for iOS devices for the ultimate in convenience.

Simply transfer music directly through Wi-Fi

Send songs to the M11 directly from your computer's browser or your smartphone, saving you the hassle of hooking up the player to your computer with a USB cable.

Contemporary symmetrical USB Type-C connector

The M11 adopts the modern USB Type-C symmetrical connector, capable of both receiving and transmitting digital signals. This also means that the M11 is compatible with commonly-found USB Type-C chargers.

Asynchronous USB DAC supporting up to 384kHz/32 bit audio

With USB audio out, you don't have to stop the music

The M11 can support outputting a wide variety of formats through its USB connector, including DSD128, DoP/D2P, and native DSD modes. Simply connect the M11 to an external decoder, and you have a portable jukebox capable of delivering excellent sound wherever you go.

Multifunction output jack featuring SPDIF

Through the multifunction coaxial output jack, you can connect to a diverse range of external speakers, amplifiers, and decoders.

Global All To DSD functionality

With the All To DSD functionality, all PCM audio signals will be converted to the DSD format during the digital-to-analog conversion process – allowing one to experience a different yet natural and clear sound. Additionally, any sounds played through 3rd party apps are also affected by the All To DSD functionality.

All-new dynamic EQ featuring 8 presets

The M11 features an all-new 10 band dynamic EQ supporting adjustments up to plus or minus 12dB. Listen to the built-in pop, blues, classical, jazz, rock, dance, metal and vocal equalizer presets or dial in your own customized EQ settings to get your music sounding the way you want them to.

Dual Hi-Res Audio certifications

Not only is the M11 certified by the Japan Audio Society to be ''Hi-Res Audio'' capable, it is also the first product among its kind to carry the ''Hi-Res Audio Wireless'' certification.

Asynchronous 384kHz/32bit

Type C USB2.0

5.15 inch 1440×720 bezel-less 10-point touchscreen

About 130mm×70.5mm×15.5mm

About 211g

＜2.5h (QC2.0 quick charge)

3800mAh high-voltage Li-polymer battery

195mW (32Ω / Single-ended headphone output)

550mW (32Ω / balanced headphone output)

10Hz~90kHz (-3dB)

 ≥118dB (A-weighted)

＜1Ω (32Ωloaded)

＜0.002% (1kHz/32Ω)

11.87Vp-p (BAL)

PO＜5uV; BAL＜7uV

USB DAC:

USB Type:

Display screen:

Dimensions:

Weight:

Charging time:

Battery capacity:

Output power 1:

Output power 2:

Frequency response:

SNR:

Output impedance:

THD+N:

Peak output voltage:

Noise floor (20k low-pass):

Accessories included to cover all of your needs

Included with the M11 is a transparent TPU protective case and a 7H tempered glass screen protector. The TPU protective case has been specially engineered to be tough enough to effectively protect the M11. And the screen protector is not only hard enough to prevent your screen from being scratched, it also boasts a 90%+ light transmittance rate so your screen is still bright and easy to look at.

*Tempered glass screen protector is pre-applied from the factory.
