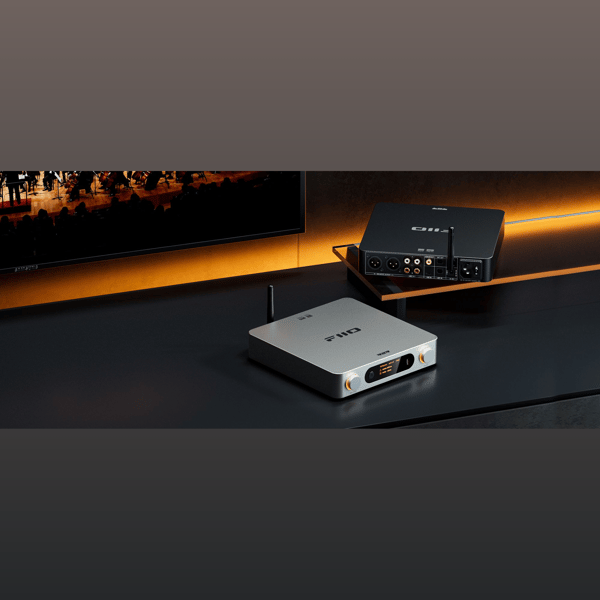

FiiO BR15 R2R

High-Resolution Bluetooth Audio Receiver

Flagship Bluetooth chip Qualcomm QCC5181, Bluetooth 6.0

Supports LDAC, aptX Lossless Bluetooth codecs

Fully differential true 24Bit R2R resistor arrays

DAC NOS/OS modes | Bluetooth/USB/optical/coaxial decoding

2 RCA + 1 XLR set of line outputs | Optical + coaxial digital outputs

Global 10-band PEQ + AUTO EQ | AC/DC dual power supplies

Included infrared remote control

* product drawings are for reference only, all in kind shall prevail

Note: The product layout is for reference only. All products shall prevail.

Unbound by wires

Wireless HiFi: You can’t go back once you try it

Give your speakers and amplifiers a Bluetooth upgrade.

Enjoy lossless Bluetooth and listen freely, unbound by wires.

Experience the pleasure of high-quality wireless audio - use it once, and you’ll never go back.

Enjoy CD-quality lossless audio

Qualcomm's flagship QCC5181

Bluetooth Chip

Featuring the Qualcomm QCC5181 flagship chip, the device is LE Audio compliant with up to 2.1Mbps data transfer capability. Supporting aptX Lossless within the aptX Adaptive system means Bluetooth can actually deliver CD-level lossless audio, ensuring details within the music are properly reproduced, making you feel as if you are right there with the musicians.

Unleash the full potential of your speakers/amplifier aptX Lossless Bluetooth and LDAC

Upgrade your speakers/amplifiers to support aptX Lossless Bluetooth, LDAC, and aptX Adaptive 96kHz/24bit! Everything from streaming video and watching films to listening to music will be revitalized, making them new again new to your ears!

Bluetooth 6.0

Next-level connectivity

With high efficiency and minimal power draw, and the added advantage of a dedicated external antenna, this device achieves extended range, enhanced resistance to interference, lower latency, and superior connection stability – offering you greater wireless freedom.

Fully differential true 24Bit R2R resistor arrays DAC NOS/OS dual modes

Double the fun

NOS (No-oversampling) mode

Maintains the original sampling rate for decoding, preserving authentic sound and allowing you to enjoy an organic and captivating musical experience.

OS (oversampling) mode

Upsamples full frequency range to a high sampling rate of 384kHz*, for superior audio performance and even more refined, clear sound.

At the heart of the BR15 R2R is a FIIO proprietary quad-channel, fully differential 24-Bit R2R DAC. This DAC is composed of 48 high-precision thin-film resistors per channel, totaling 192 resistors with 0.1% accuracy and low temperature drift (30 ppm), providing a distinctive and richly textured sound. Compared to non-fully differential R2R designs, the design used in the BR15 R2R results in lower noise and fewer FFT harmonics, resulting in a darker music background.

*AAC transmission is currently not supported.

*OS mode allows for upsampling to custom sampling rates; the factory default is 192kHz. *The BR15 R2R supports 1bit DSD native decoding. Slightly lower volume when playing DSD tracks is normal - we recommend adjusting the volume to your usual listening level. The SAM: OS menu is bypassed when using DSD mode.

*The perceived difference across modes is highly subjective. We encourage users to trust their own unique listening preferences when comparing performance.

Bluetooth/USB/optical/coaxial decoding

Easily switch between for various needs

With support for Bluetooth, USB, and SPDIF (Coaxial/Optical) inputs, this all-in-one device is capable of handling multiple roles. It is compatible with various sources like phones, PCs, CD players, televisions, and DVDs, allowing you to effortlessly create your own wireless Hi-Fi audio system.

USB Decoding    Mobile Phone USB + BR15 R2R + K11 + Headphones

SPDIF Decoding    AirPlay + SR11 + BR15 R2R + Power Amplifier + Passive Speakers + Remote Control

Bluetooth Decoding    Mobile Phone Bluetooth + BR15 R2R + K15 + Headphones

Abundant outputs

Effortlessly integrates with your devices

The unit includes two RCA and one XLR analog line outputs, plus optical and coaxial digital outputs. You can easily connect to active speakers, external DACs, and amplifiers, readily accommodating any system configuration.

Global 10-band PEQ

AUTO EQ

For even greater convenience

The 10-band PEQ can be used across all operating modes. Through FIIO’s proprietary tuning algorithm and dedicated app, users can access multiple preset sound signatures, such as retro and pop, or simulate/correct the frequency response of their gear. With the ability to export, import, share, and save EQ curves, you can effortlessly play with and perfect your tuning. Is manual fine-tuning too complex? AUTO EQ and sound presets make it easy to get started. AUTO EQ enables diverse sonic experiences—just upload or select your headphone’s original data and your desired target curve.

*When PEQ is enabled, the maximum supported sampling rate is PCM 192kHz/24bit.

*AUTO EQ is currently unavailable under Bluetooth decoding mode.

Fully balanced audio circuit

The entire signal path—from the R2R DAC and LPF to the volume control— uses full-differential signal handling, resulting in low noise, minimal distortion, and large dynamic range. Furthermore, it is equipped with a pop noise elimination system, which further guarantees the integrity and robust nature of the audio circuitry.

AC/DC dual power supply design

The internal high-quality switching power supply ensures the device is fed with clean power. It is also equipped with an external DC power port*, giving you the flexibility to pair the device with a high-performance linear power supply and unlock a new sound.

*When using external DC power, ensure the power supply provides 5V output, ≥2A current, and uses a 5.5×2.1mm jack.

*The device automatically switches to prioritize DC power when a DC source is connected.

Custom LCD display Song info clear at a glance

The custom 1.47-inch color display offers various themes and clearly presents the song title, artist, and lyrics* during Bluetooth playback. Users can also quickly check device status information like the sampling rate, volume, and EQ settings.

* Lyrics display requires the Bluetooth transmitting source to be compatible with the BR15 R2R. When using the FIIO Music App, activate the "External Device Bluetooth Lyrics" function in the settings.

Adjust up close

Control from afar Effortless command over your music

Adhering to the minimalist design language, the unit features dual knobs and a display to make close-range operation, such as when placed on a desk, highly convenient. For larger audio setups that are placed further away, you can effortlessly control the BR15 R2R either through the included infrared remote control or through the FIIO Control app.

Dual Hi-Res audio certifications Guaranteed sound quality

The BR15 R2R is both Hi-Res Audio and Hi-Res Audio Wireless certified. Whether wired or wireless, you can be rest assured of the product’s excellent sound quality.
